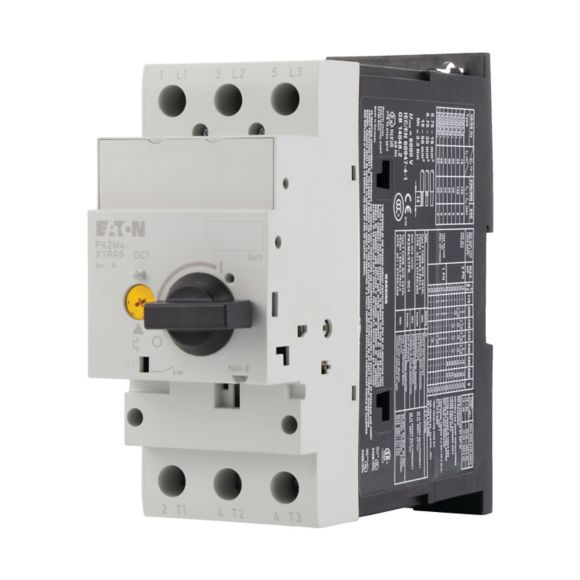

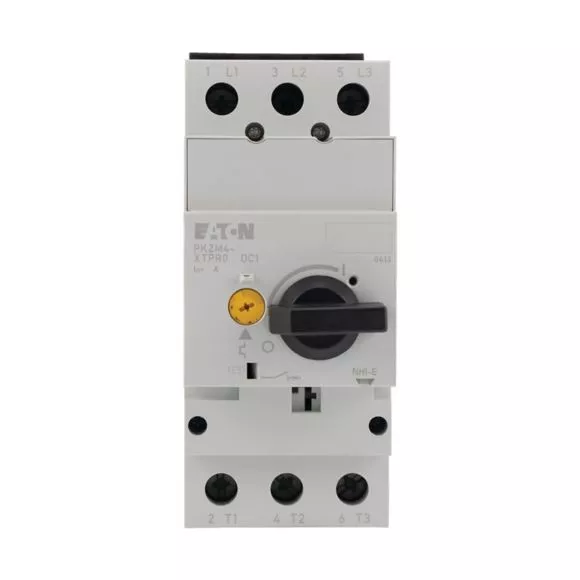

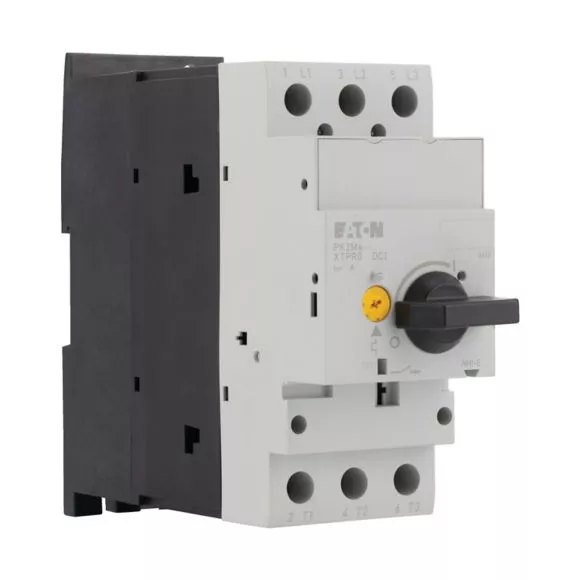

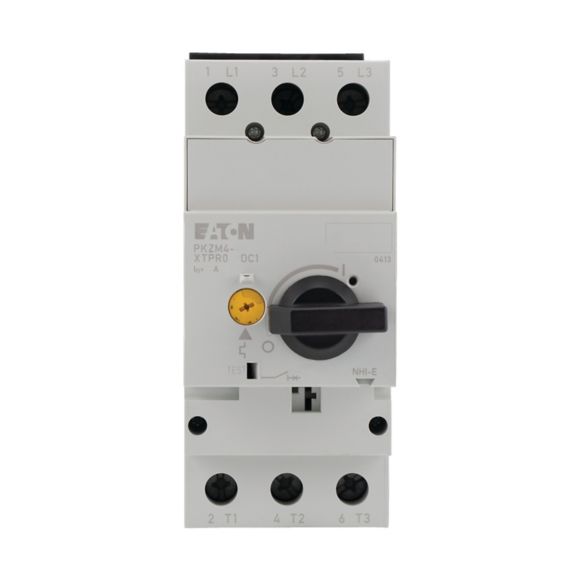

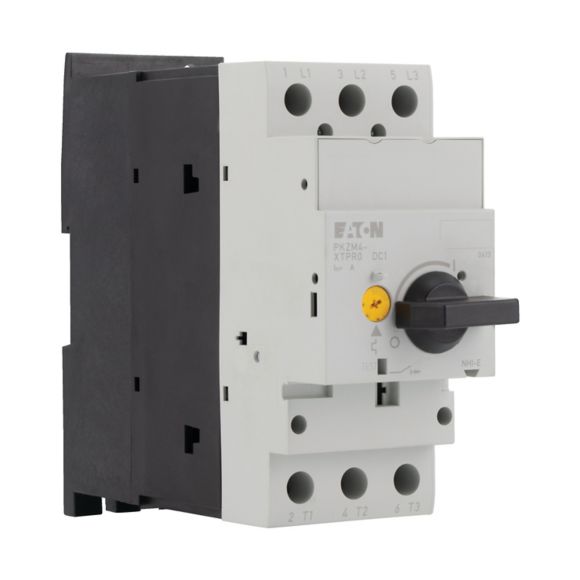

PKZM4-25 Wyłącznik silnikowy 25A 12,5kW
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 222352 |
GTIN(EAN) | 4015082223526 |
Price unit | piece |
Catalog price | 1 752,75 zł (1 425,00 zł + 23% VAT) |
Sale price | from 646,43 zł / szt. (525,55 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłącznik silnikowy zgodny z IEC/EN60947, 3-biegunowe wielkość konstrukcyjna PKZM 4, z regulowanym wyzwalaczem przeciążeniowym i zwarciowym bez opóźnienia, czuły na brak fazy, mocowanie na śruby i zaciski, znamionowe napięcie pracy Ue 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, dostępne akcesoria: łącznik pomocniczy, wyzwalacz napięcia
Additional features:
Information | Value |
---|---|
Net weight: | 1,136 kg |
Country of origin | Niemcy |
ETIM class: | Motor protection circuit-breaker |
Overload release current setting: | 16 - 25 A |
Adjustment range undelayed short-circuit release: | 388 - 388 A |
With thermal overload protection: | no |
Phase failure sensitive: | yes |
Switch off technique: | Thermomagnetic |
Rated operating voltage: | 690 - 690 V |
Rated permanent current Iu: | 25 A |
Rated operation power at AC-3, 230 V: | 5.5 kW |
Rated operation power at AC-3, 400 V: | 12.5 kW |
Type of electrical connection of main circuit: | Screw connection |
Type of control element: | Turn button |
Device construction: | Built-in device fixed built-in technique |
With integrated auxiliary switch: | no |
With integrated under voltage release: | no |
Number of poles: | 3 |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 150 kA |
Degree of protection (IP): | IP20 |
Height: | 140 mm |
Width: | 55 mm |
Depth: | 160 mm |
Power loss: | 14.7 W |
