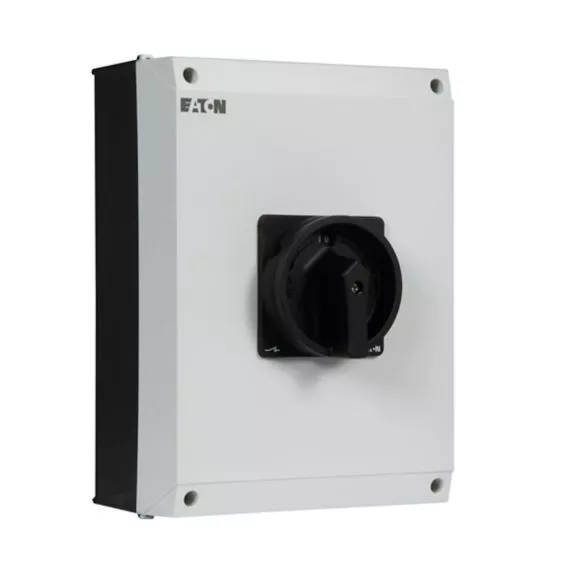

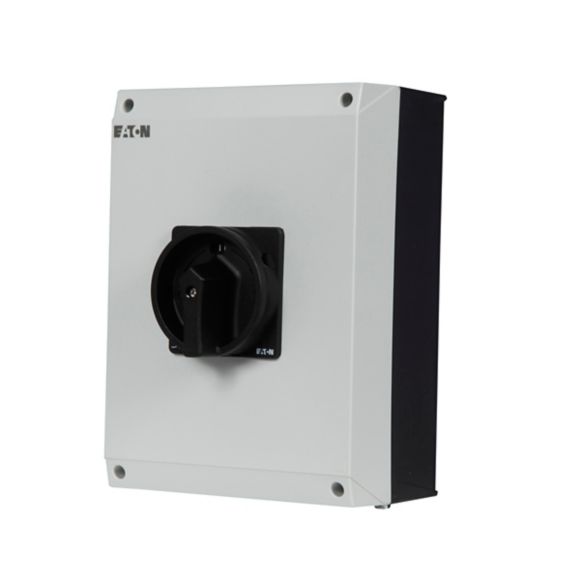

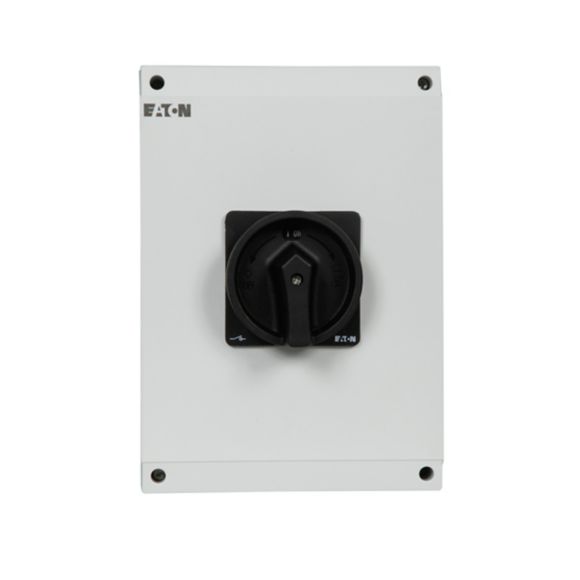

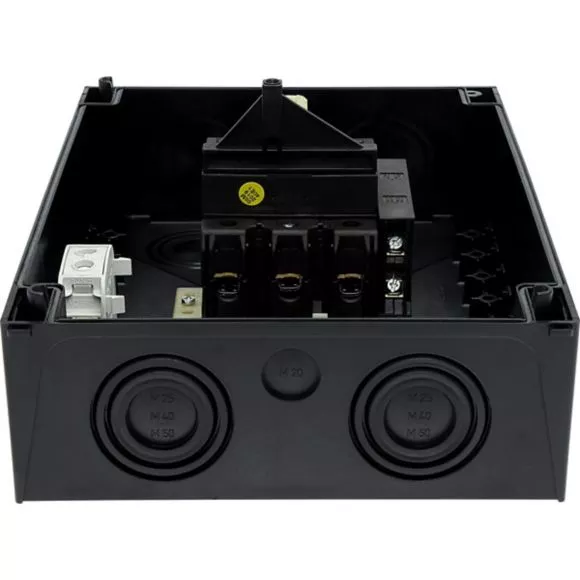

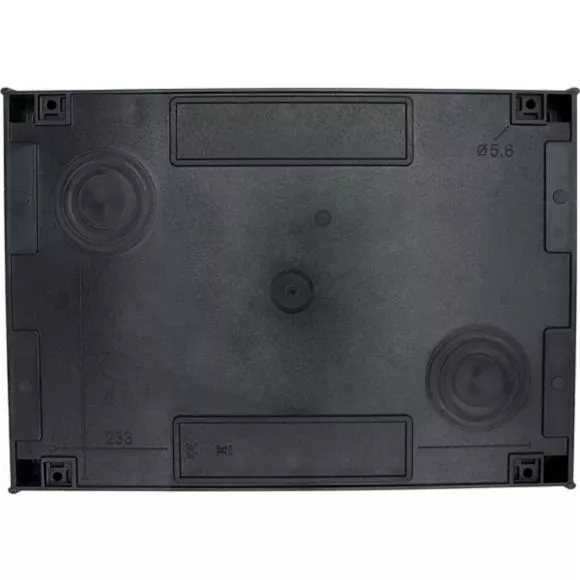

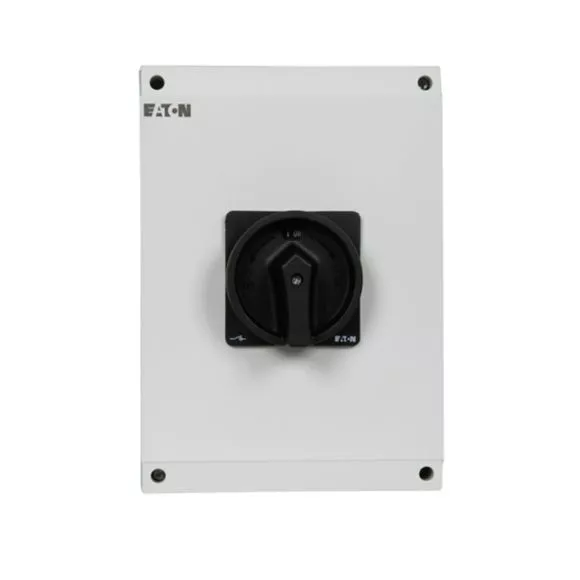

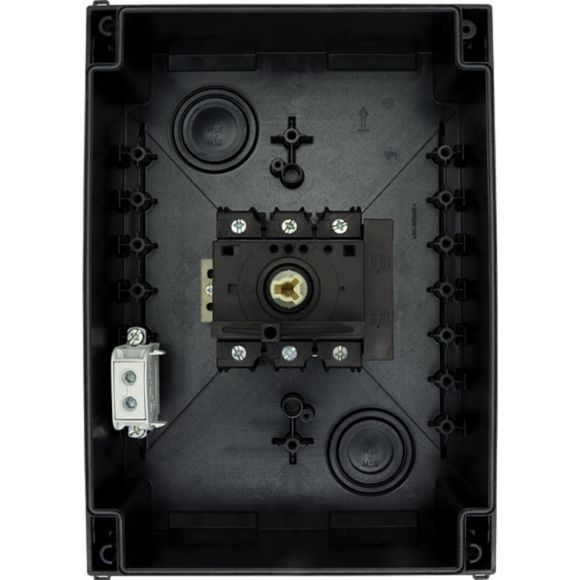

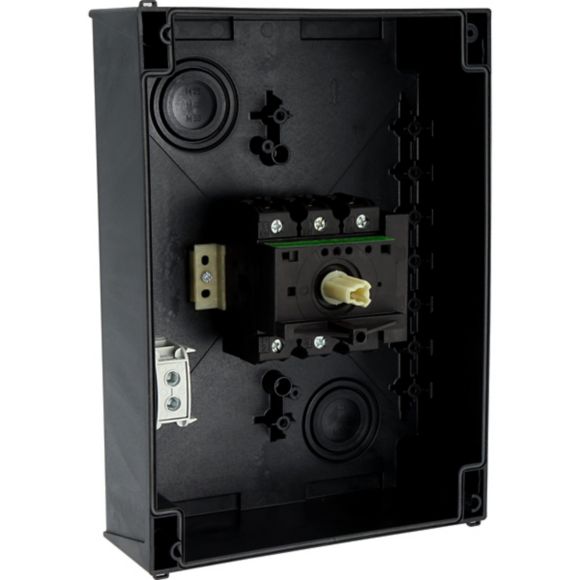

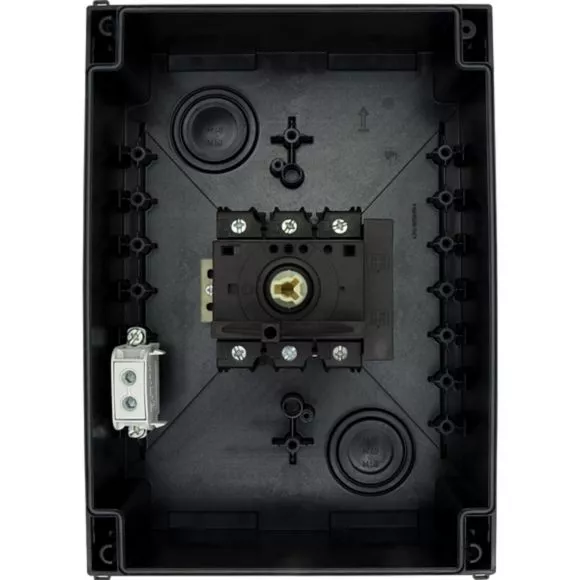

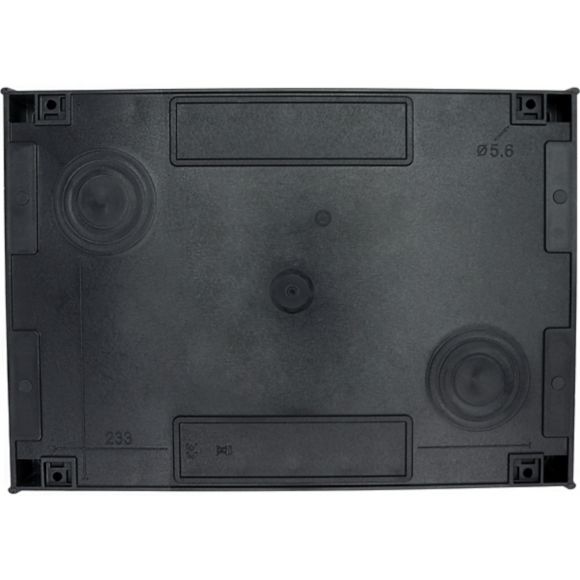

P3-100/I5/SVB-SW/HI11 Rozłącznik główny., 3 bieg.+1NO+1NC, 100 A, w obudowie IP65, pokrętło czarne z blokadą na kłódkę
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 207375 |
| GTIN(EAN) | 4015082073756 |
| Price unit | piece |
| Catalog price | 1 927,41 zł (1 567,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozłącznik główny / rozłącznik izolacyjny wł./wył. wg IEC/EN 60947-3, 690V/100A, klasa ochrony przód IP65, rękojeść czarna z wieńcem blokującym czarnym, zamykanie 3 kłódkami, rozłączniki izolacyjne P3 mają niewielkie wymiary i solidną konstrukcję. Napęd ręczny działa bezpośrednio na zestyki. Zestyki po wyłączeniu rozwierają się w sposób wymuszony.. Ogólne konstrukcje: obudowa natynkowa z izolacją, montaż, montaż pośredni, montaż rozdzielacza IVS
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,54 kg |
| Country of origin | Wielka Brytania |
| ETIM class: | Switch disconnector (low voltage) |
| Version as main switch: | yes |
| Version as maintenance-/service switch: | yes |
| Version as safety switch: | no |
| Version as emergency stop installation: | no |
| Version as reversing switch: | no |
| Number of switches: | 1 |
| Max. rated operation voltage Ue AC: | 690 V |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current Iu: | 100 A |
| Rated permanent current at AC-23, 400 V: | 100 A |
| Rated permanent current at AC-21, 400 V: | 100 A |
| Rated operation power at AC-3, 400 V: | 37 kW |
| Rated short-time withstand current lcw: | 2 kA |
| Rated operation power at AC-23, 400 V: | 55 kW |
| Switching power at 400 V: | 55 kW |
| Conditioned rated short-circuit current Iq: | 80 kA |
| Number of poles: | 3 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Voltage release optional: | no |
| Device construction: | Complete device in housing |
| Suitable for floor mounting: | yes |
| Suitable for front mounting 4-hole: | no |
| Suitable for front mounting centre: | no |
| Suitable for distribution board installation: | no |
| Suitable for intermediate mounting: | no |
| Colour control element: | Black |
| Type of control element: | Door coupling rotary drive |
| Interlockable: | yes |
| Type of electrical connection of main circuit: | Screw connection |
| Degree of protection (IP), front side: | IP65 |
| Degree of protection (NEMA): | 12 |
| With pre-assembled cabling: | no |
| Width: | 200 mm |
| Height: | 180 mm |
| Depth: | 169 mm |
