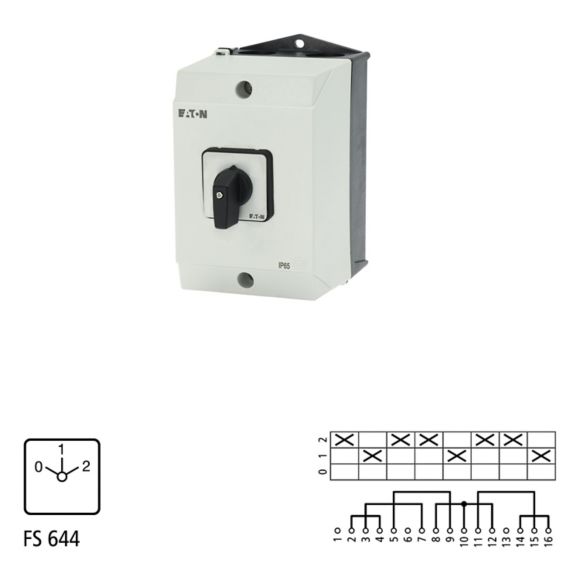

T3-4-8440/I2 Przełącznik liczby biegunów, Styki: 8, 32 A, układ Dahlandera, 2 prędkości, tabliczka: 0-1-2, 60 °, bez samopowrotu, w obudowie IP65, pokrętło czarne bez możliwości blokady
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 207196 |
GTIN(EAN) | 4015082071967 |
Price unit | piece |
Catalog price | 1 000,11 zł (813,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Łącznik krzywkowy wg IEC/EN60947, wielkość konstrukcyjna T3, w obudowie natynkowej, tabliczka czołowa ok. 48X48, stopień ochrony IP65, z czarną przetyczką, pomiarowy prąd stały Iu 32A, znamionowe napięcie pracy Ue 690V, dostępne akcesoria zgodnie z danymi katalogu łączników krzywkowych T
Additional features:
Information | Value |
---|---|
Net weight: | 594 g |
ETIM class: | Off-load switch |
Model: | Dahlander switch |
Number of poles: | 3 |
With zero (off) position: | yes |
With retraction in 0-position: | no |
Rated permanent current Iu: | 32 A |
Rated operation current Ie at AC-3, 400 V: | 23.7 A |
Rated operation power at AC-3, 400 V: | 12 kW |
Degree of protection (IP), front side: | IP65 |
Degree of protection (NEMA), front side: | 12 |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
Suitable for floor mounting: | yes |
Suitable for front mounting: | no |
Suitable for distribution board installation: | no |
Suitable for intermediate mounting: | no |
Complete device in housing: | yes |
Housing material: | Plastic |
Type of control element: | Short thumb-grip |
Type of electrical connection of main circuit: | Screw connection |
