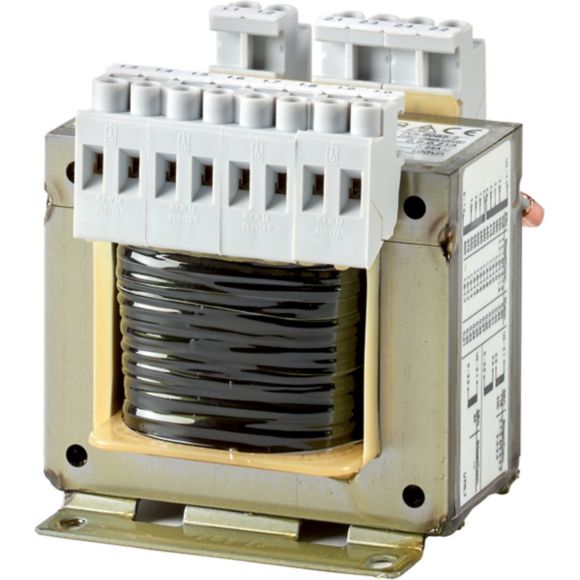

UTI0,5-115 Transformator uniwersalny UTI 500VA
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 206926 |
| GTIN(EAN) | 4015082069261 |
| Price unit | piece |
| Catalog price | 2 346,84 zł (1 908,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Transformatory UTI nadają się do stosowania w obwodach prądu sterowania zgodnie z normą IEC/EN 60204 wzgl. VDE 0113. W wypadku napięcia po stronie pierwotnej dostępne są następujące wartości 208V, 230 V, 380 V, 400 V, 415 V, 440 V, 460 V, 480 V, 500 V, 525 V, 550 V 575V i 600V. W napięciu wtórnym dostępne są następujące wartości 1x115V lub 2x115V.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 6,8 kg |
| ETIM class: | One-phase control transformer |
| Built as safety transformer: | yes |
| Built as isolating transformer: | yes |
| Built as energy saving transformer: | no |
| Primary voltage 1: | 208 - 600 V |
| Primary voltage 2: | 0 - 0 V |
| Primary voltage 3: | 0 - 0 V |
| Primary voltage 4: | 0 - 0 V |
| Primary voltage 5: | 0 - 0 V |
| Primary voltage 6: | 0 - 0 V |
| Primary voltage 7: | 0 - 0 V |
| Primary voltage 8: | 0 - 0 V |
| Primary voltage 9: | 0 - 0 V |
| Primary voltage 10: | 0 - 0 V |
| Secondary voltage 1: | 115 - 115 V |
| Secondary voltage 2: | 115 - 115 V |
| Secondary voltage 3: | 0 - 0 V |
| Secondary voltage 4: | 0 - 0 V |
| Secondary voltage 5: | 0 - 0 V |
| Secondary voltage 6: | 0 - 0 V |
| Secondary voltage 7: | 0 - 0 V |
| Secondary voltage 8: | 0 - 0 V |
| Secondary voltage 9: | 0 - 0 V |
| Secondary voltage 10: | 0 - 0 V |
| Rated apparent power: | 500 VA |
| Type of insulation material according to IEC 85: | B |
| Short-circuit-proof: | no |
| Relative short circuit voltage: | 3.5 % |
| Width: | 121 mm |
| Height: | 124 mm |
| Depth: | 120 mm |
| Degree of protection (IP): | IP00 |
| Ring core: | no |
| Suitable for mounting on PCB: | no |
| Modular version: | no |
| Conductor material: | Copper |
