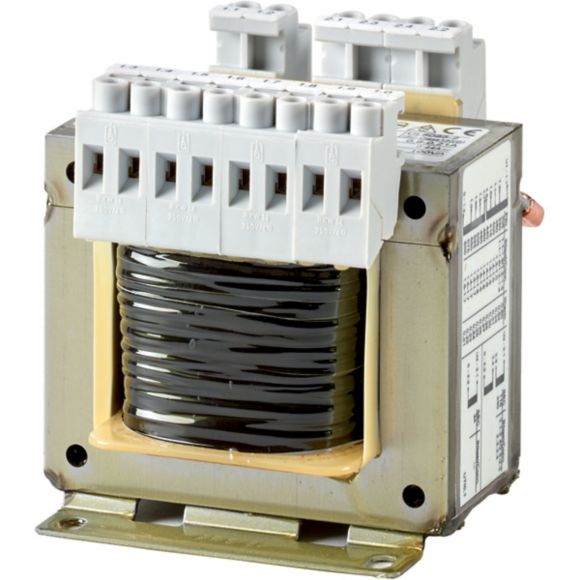

UTI0,315-115 Transformator uniwersalny UTI 315VA
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 206925 |
GTIN(EAN) | 4015082069254 |
Price unit | piece |
Catalog price | 1 900,35 zł (1 545,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Transformatory UTI nadają się do stosowania w obwodach prądu sterowania zgodnie z normą IEC/EN 60204 wzgl. VDE 0113. W wypadku napięcia po stronie pierwotnej dostępne są następujące wartości 208V, 230 V, 380 V, 400 V, 415 V, 440 V, 460 V, 480 V, 500 V, 525 V, 550 V 575V i 600V. W napięciu wtórnym dostępne są następujące wartości 1x115V lub 2x115V.
Additional features:
Information | Value |
---|---|
Net weight: | 4,3 kg |
ETIM class: | One-phase control transformer |
Built as safety transformer: | yes |
Built as isolating transformer: | yes |
Built as energy saving transformer: | no |
Primary voltage 1: | 208 - 600 V |
Primary voltage 2: | 0 - 0 V |
Primary voltage 3: | 0 - 0 V |
Primary voltage 4: | 0 - 0 V |
Primary voltage 5: | 0 - 0 V |
Primary voltage 6: | 0 - 0 V |
Primary voltage 7: | 0 - 0 V |
Primary voltage 8: | 0 - 0 V |
Primary voltage 9: | 0 - 0 V |
Primary voltage 10: | 0 - 0 V |
Secondary voltage 1: | 115 - 115 V |
Secondary voltage 2: | 115 - 115 V |
Secondary voltage 3: | 0 - 0 V |
Secondary voltage 4: | 0 - 0 V |
Secondary voltage 5: | 0 - 0 V |
Secondary voltage 6: | 0 - 0 V |
Secondary voltage 7: | 0 - 0 V |
Secondary voltage 8: | 0 - 0 V |
Secondary voltage 9: | 0 - 0 V |
Secondary voltage 10: | 0 - 0 V |
Rated apparent power: | 315 VA |
Type of insulation material according to IEC 85: | B |
Short-circuit-proof: | no |
Relative short circuit voltage: | 5 % |
Width: | 121 mm |
Height: | 124 mm |
Depth: | 88 mm |
Degree of protection (IP): | IP00 |
Ring core: | no |
Suitable for mounting on PCB: | no |
Modular version: | no |
Conductor material: | Copper |
