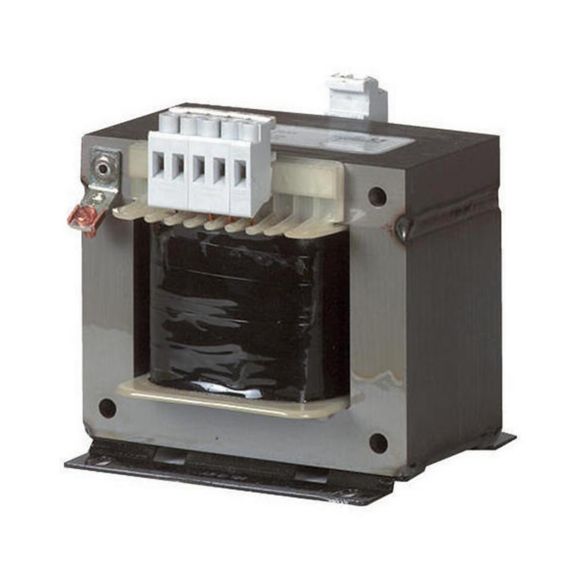

STN0,315(400/230) Transformator sterujący 315VA
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 204982 |
| GTIN(EAN) | 4015082049829 |
| Price unit | piece |
| Catalog price | 1 106,88 zł (899,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Transformator wykonany zgodnie z normą IEC/EN 61558-2-2, VDE 0570 część 2-2, UL 506, CSA 22.2 No.66, zaczepy +- 5%, stopień ochrony IP00, 100% ED
Additional features:
| Information | Value |
|---|---|
| Net weight: | 3,539 kg |
| ETIM class: | One-phase control transformer |
| Built as safety transformer: | no |
| Built as isolating transformer: | no |
| Built as energy saving transformer: | no |
| Primary voltage 1: | 400 - 400 V |
| Primary voltage 2: | 0 - 0 V |
| Primary voltage 3: | 0 - 0 V |
| Primary voltage 4: | 0 - 0 V |
| Primary voltage 5: | 0 - 0 V |
| Primary voltage 6: | 0 - 0 V |
| Primary voltage 7: | 0 - 0 V |
| Primary voltage 8: | 0 - 0 V |
| Primary voltage 9: | 0 - 0 V |
| Primary voltage 10: | 0 - 0 V |
| Secondary voltage 1: | 230 - 230 V |
| Secondary voltage 2: | 0 - 0 V |
| Secondary voltage 3: | 0 - 0 V |
| Secondary voltage 4: | 0 - 0 V |
| Secondary voltage 5: | 0 - 0 V |
| Secondary voltage 6: | 0 - 0 V |
| Secondary voltage 7: | 0 - 0 V |
| Secondary voltage 8: | 0 - 0 V |
| Secondary voltage 9: | 0 - 0 V |
| Secondary voltage 10: | 0 - 0 V |
| Rated apparent power: | 315 VA |
| Type of insulation material according to IEC 85: | B |
| Short-circuit-proof: | no |
| Relative short circuit voltage: | 5.3 % |
| Width: | 106 mm |
| Height: | 112 mm |
| Depth: | 91 mm |
| Degree of protection (IP): | IP00 |
| Ring core: | no |
| Suitable for mounting on PCB: | no |
| Modular version: | no |
| Conductor material: | Copper |
