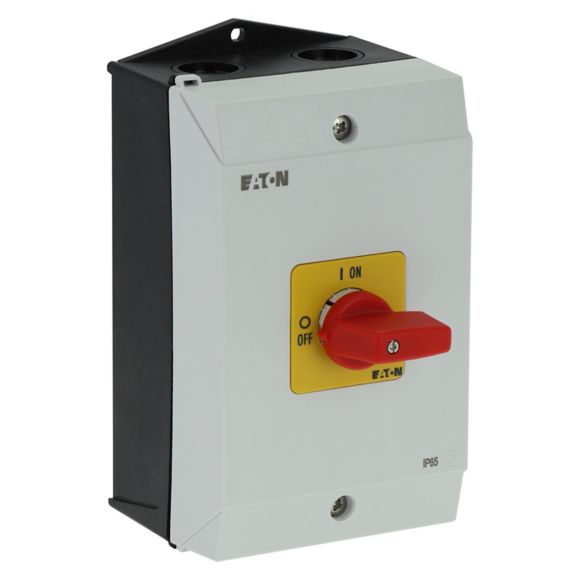

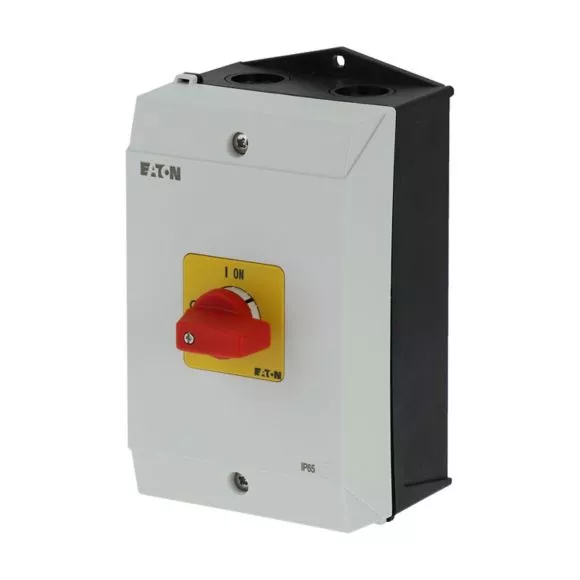

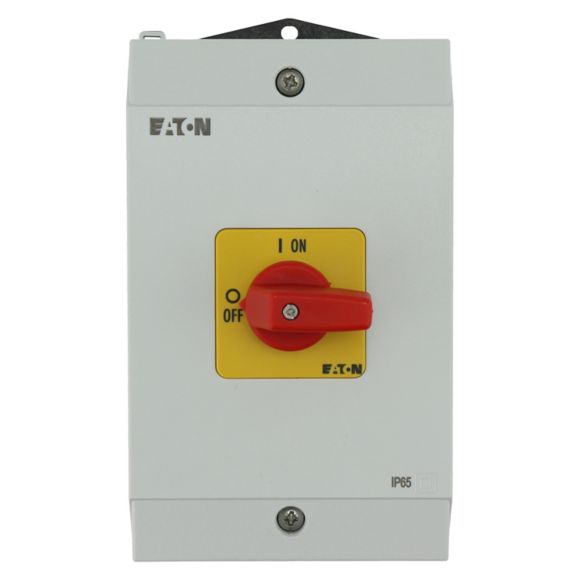

P1-40/I2H-RT/N Rozłącznik ZAŁ-WYŁ, 3 bieg.+N, 40A, w obudowie ze szkła utwardzanego, pokrętło czerwono-żółte bez możliwości blokady
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 199929 |
GTIN(EAN) | 4015082953416 |
Price unit | piece |
Catalog price | 866,04 zł (704,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 564 g |
ETIM class: | Switch disconnector (low voltage) |
Version as main switch: | no |
Version as maintenance-/service switch: | no |
Version as safety switch: | no |
Version as emergency stop installation: | no |
Version as reversing switch: | no |
Number of switches: | 1 |
Max. rated operation voltage Ue AC: | 690 V |
Rated operating voltage: | 690 - 690 V |
Rated permanent current Iu: | 40 A |
Rated permanent current at AC-23, 400 V: | 40 A |
Rated permanent current at AC-21, 400 V: | 40 A |
Rated operation power at AC-3, 400 V: | 15 kW |
Rated short-time withstand current lcw: | 0.64 kA |
Rated operation power at AC-23, 400 V: | 22 kW |
Switching power at 400 V: | 22 kW |
Conditioned rated short-circuit current Iq: | 80 kA |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
Motor drive optional: | no |
Motor drive integrated: | no |
Voltage release optional: | no |
Device construction: | Complete device in housing |
Suitable for floor mounting: | no |
Suitable for front mounting 4-hole: | no |
Suitable for front mounting centre: | no |
Suitable for distribution board installation: | no |
Suitable for intermediate mounting: | no |
Colour control element: | Red |
Type of control element: | Short thumb-grip |
Interlockable: | no |
Type of electrical connection of main circuit: | Screw connection |
Degree of protection (IP), front side: | IP65 |
