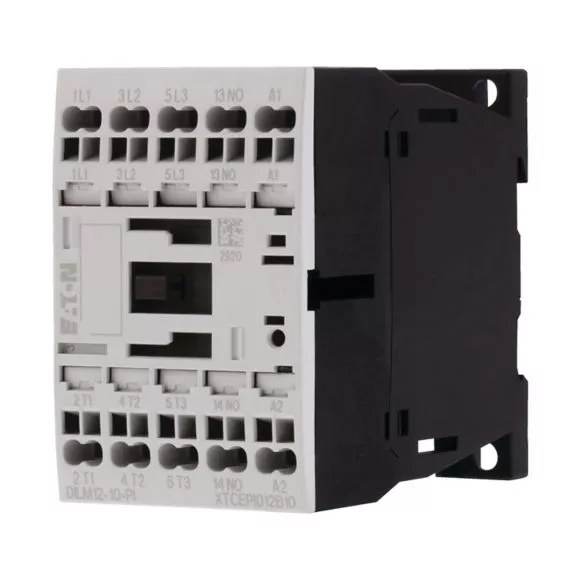

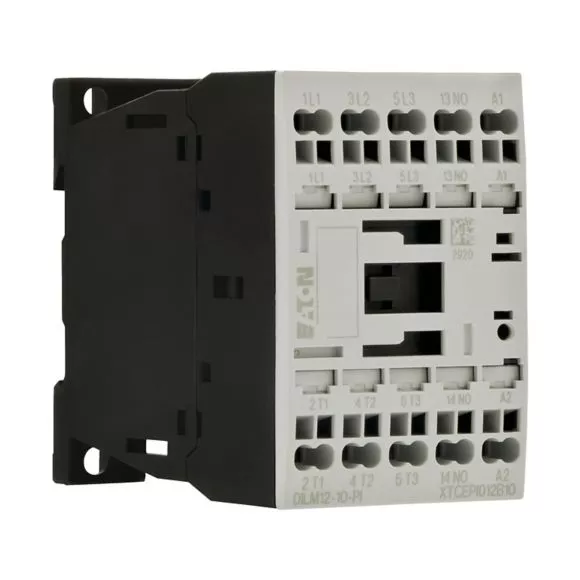

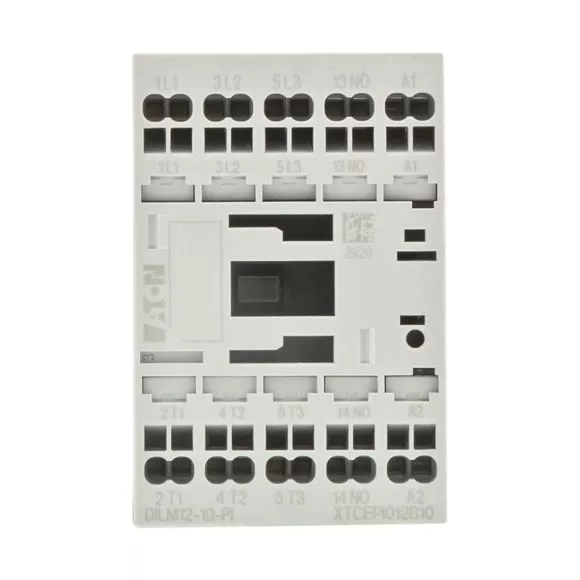

DILM12-10(220V50/60HZ)-PI Stycznik mocy DILM,5,5kW/400V,sterowanie 220VAC 50/60Hz, 1NO
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 199651 |
| GTIN(EAN) | 4015081983520 |
| Price unit | piece |
| Catalog price | 286,84 zł (233,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 225 g |
| Country of origin | Rumunia |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 220 - 220 V |
| Rated control supply voltage AC 60 Hz: | 220 - 220 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-1, 400 V: | 22 A |
| Rated operation current Ie at AC-3, 400 V: | 12 A |
| Rated operation power at AC-3, 400 V: | 5.5 kW |
| Rated operation current Ie at AC-4, 400 V: | 7 A |
| Rated operation power at AC-4, 400 V: | 3 kW |
| Rated operation power NEMA: | 0 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Type of electrical connection of main circuit: | Spring clamp connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Operating voltage AC 50 Hz: | 24 - 690 V |
| Operating voltage AC 60 Hz: | 24 - 690 V |
| Width: | 45 mm |
| Height: | 68 mm |
| Depth: | 75 mm |
