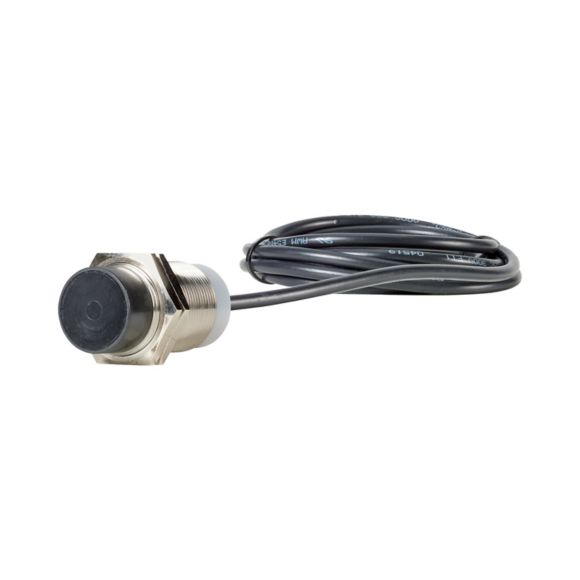

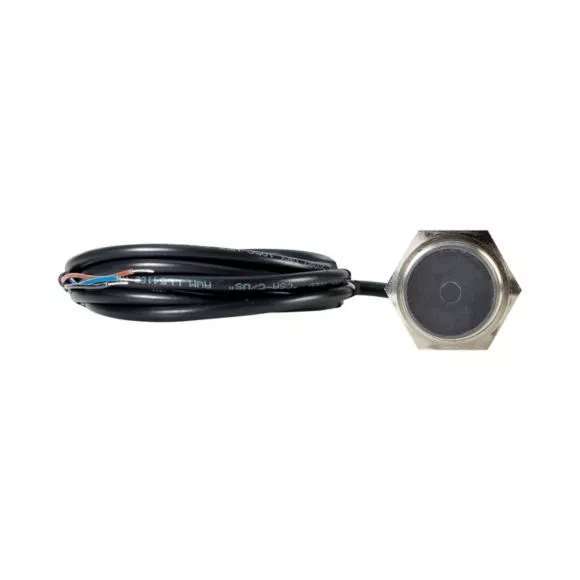

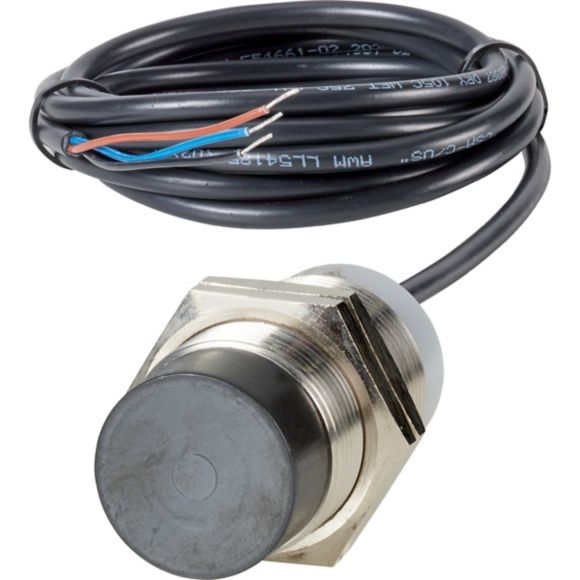

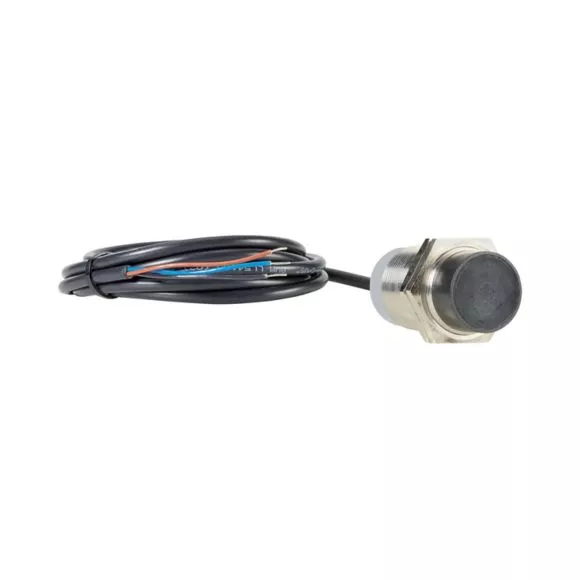

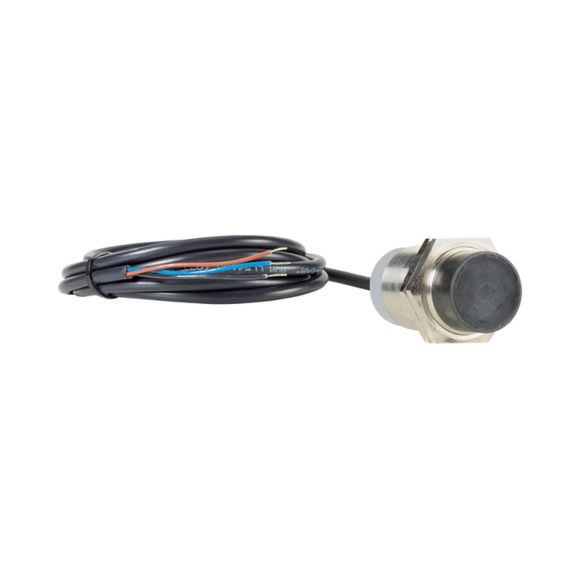

E57G-30UNN22-C2 Czujnik induk.,DC,cylindr. M30 ,metal, 2m kabel
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 197761 |
GTIN(EAN) | 4015081948680 |
Price unit | piece |
Catalog price | 356,82 zł (290,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 177 g |
ETIM class: | Inductive proximity switch |
Width sensor: | 0 mm |
Height of sensor: | 0 mm |
Length of sensor: | 67.7 mm |
Diameter sensor: | 30 mm |
Mechanical mounting condition for sensor: | Not flat |
Switching distance: | 22 mm |
Suitable for safety functions: | no |
Type of switch function: | Breaker contact |
Type of switching output: | NPN |
Type of electric connection: | Cable |
Number of semiconductor outputs with signalling function: | 1 |
Number of contact energized outputs with signalling function: | 0 |
Number of protected semiconductor outputs: | 0 |
Number of protected contact energized outputs: | 0 |
Type of actuation: | Metallic Target |
Type of interface: | None |
Type of interface for safety communication: | None |
Construction type housing: | Cylinder, screw-thread |
Coating housing: | Other |
Cascadable: | no |
SIL according to IEC 61508: | None |
Performance level according to EN ISO 13849-1: | None |
Max. output current at protected output: | 0 mA |
Supply voltage: | 10 - 30 V |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 10 - 30 V |
Voltage type: | DC |
Switching frequency: | 200 Hz |
With monitoring function downstream switching devices: | no |
Housing material: | Metal |
Compression-resistant: | no |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Degree of protection (NEMA): | 1 |
