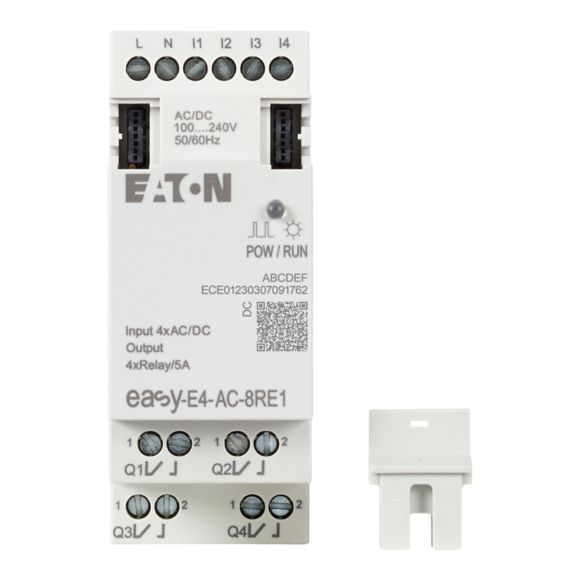

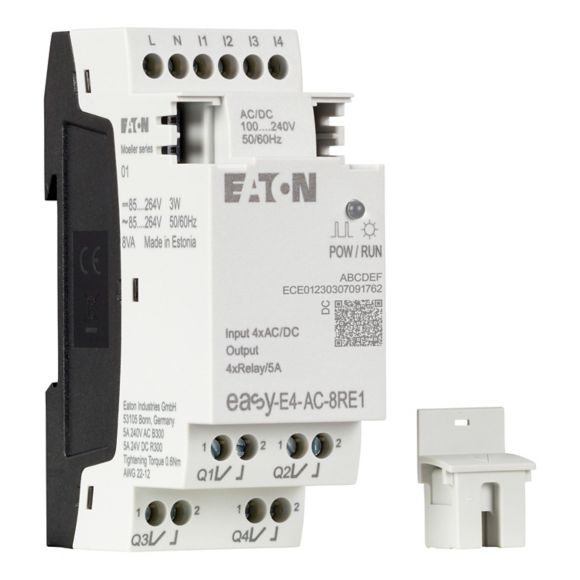

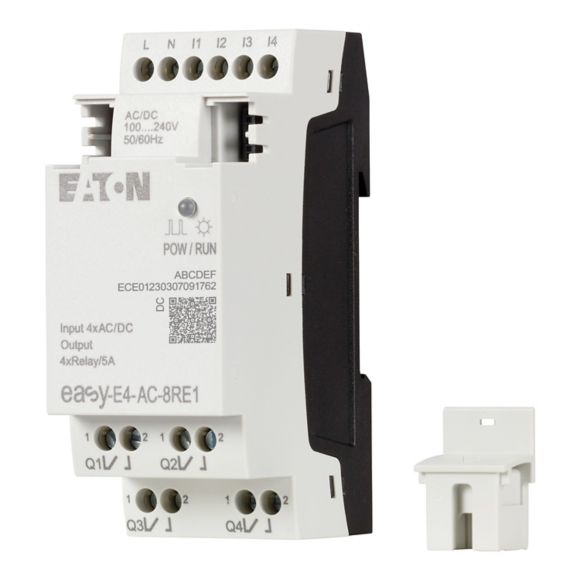

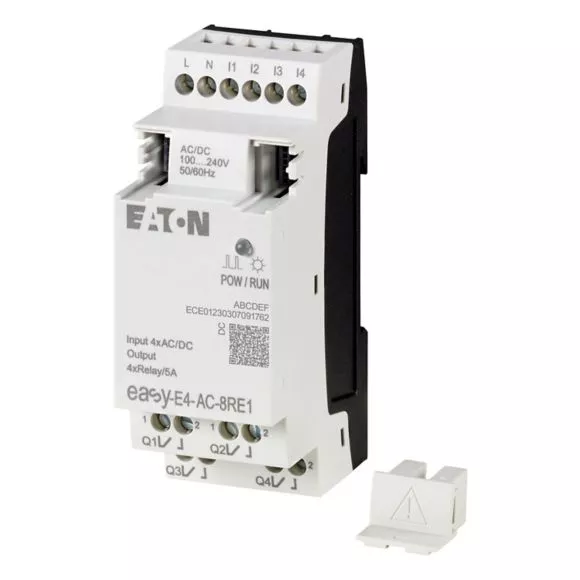

EASY-E4-AC-8RE1 easyE4 rozszerzenie 230VAC/DC, 4DI, 4DO-R
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 197221 |
| GTIN(EAN) | 4015081939435 |
| Price unit | piece |
| Catalog price | 664,45 zł (540,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 125 g |
| Country of origin | Estonia |
| ETIM class: | Logic module |
| Supply voltage AC 50 Hz: | 85 - 264 V |
| Supply voltage AC 60 Hz: | 85 - 264 V |
| Supply voltage DC: | 85 - 264 V |
| Voltage type (supply voltage): | AC |
| Switching current: | 5 A |
| Number of analogue inputs: | 0 |
| Number of analogue outputs: | 0 |
| Number of digital inputs: | 4 |
| Number of digital outputs: | 4 |
| With relay output: | yes |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces wireless: | 0 |
| Number of HW-interfaces other: | 0 |
| With optical interface: | no |
| Supporting protocol for TCP/IP: | yes |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for other bus systems: | no |
| Radio standard Bluetooth: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| IO link master: | no |
| Redundancy: | no |
| With display: | no |
| Degree of protection (IP): | IP20 |
| Basic device: | no |
| Expandable: | yes |
| Expansion device: | yes |
| With time switch clock: | no |
| Rail mounting possible: | yes |
| Wall mounting/direct mounting: | yes |
| Front built-in possible: | yes |
| Rack-assembly possible: | no |
| Suitable for safety functions: | no |
| SIL according to IEC 61508: | None |
| Performance level according to EN ISO 13849-1: | None |
| Appendant operation agent (Ex ia): | no |
| Appendant operation agent (Ex ib): | no |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Width: | 36 mm |
| Height: | 90 mm |
| Depth: | 58 mm |
| Power consumption: | 3 W |
| Supporting protocol for EtherCAT: | no |
| Certified for UL hazardous location class I: | yes |
| Certified for UL hazardous location class II: | no |
| Certified for UL hazardous location class III: | no |
| Certified for UL hazardous location division 1: | no |
| Certified for UL hazardous location division 2: | yes |
| Certified for UL hazardous location group A (acetylene): | yes |
| Certified for UL hazardous location group B (hydrogen): | yes |
| Certified for UL hazardous location group C (ethylene): | yes |
| Certified for UL hazardous location group D (propane): | yes |
| Certified for UL hazardous location group E (metal dusts): | no |
| Certified for UL hazardous location group F (carbonaceous dusts): | no |
| Certified for UL hazardous location group G (non-conductive dusts): | no |
