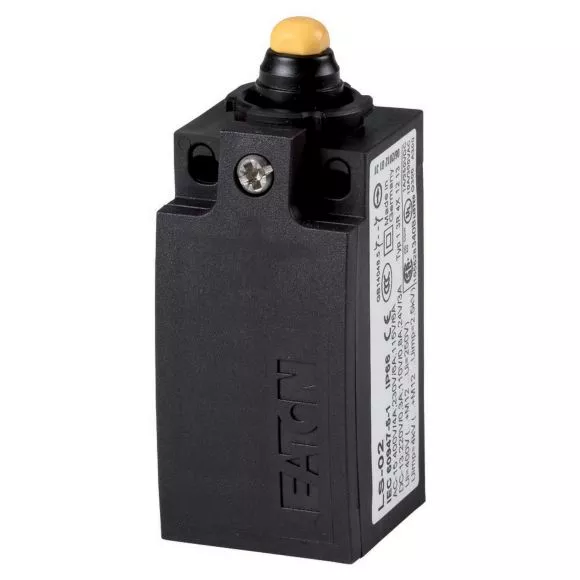

LS-02-SW/F Wył. krańcowy 2NC, zam. min. 10 szt.
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 197187 |
GTIN(EAN) | 4015080896548 |
Price unit | piece |
Catalog price | 142,93 zł (116,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | End switch |
Width sensor: | 31 mm |
Diameter sensor: | 0 mm |
Height of sensor: | 61 mm |
Length of sensor: | 33.5 mm |
Rated operation current Ie at AC-15, 24 V: | 6 A |
Rated operation current Ie at AC-15, 125 V: | 6 A |
Rated operation current Ie at AC-15, 230 V: | 6 A |
Rated operation current Ie at DC-13, 24 V: | 3 A |
Rated operation current Ie at DC-13, 125 V: | 0.8 A |
Rated operation current Ie at DC-13, 230 V: | 0.3 A |
Switching function: | Slow-action switch |
Switching function latching: | no |
Output electronic: | no |
Forced opening: | yes |
Number of safety auxiliary contacts: | 2 |
Number of contacts as normally closed contact: | 2 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 0 |
Type of interface: | None |
Type of interface for safety communication: | None |
Construction type housing: | Cuboid |
Housing material: | Plastic |
Coating housing: | Other |
Type of control element: | Plunger |
Alignment of the control element: | Other |
Type of electric connection: | Other |
With status indication: | no |
Suitable for safety functions: | yes |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Ambient temperature during operating: | 25 - 70 °C |
Degree of protection (IP): | IP67 |
Degree of protection (NEMA): | 4X |
