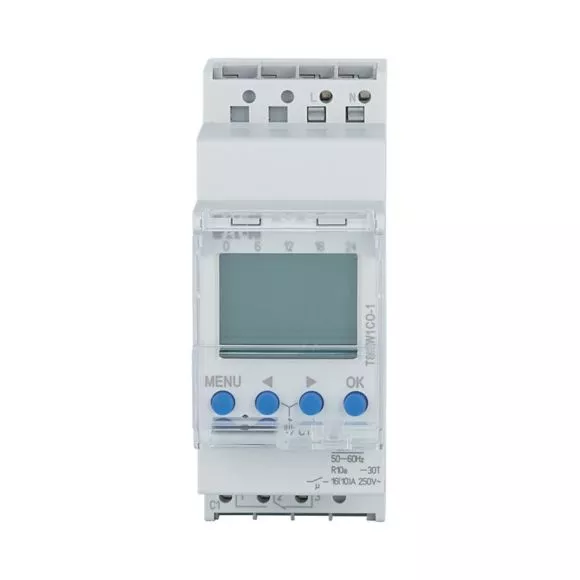

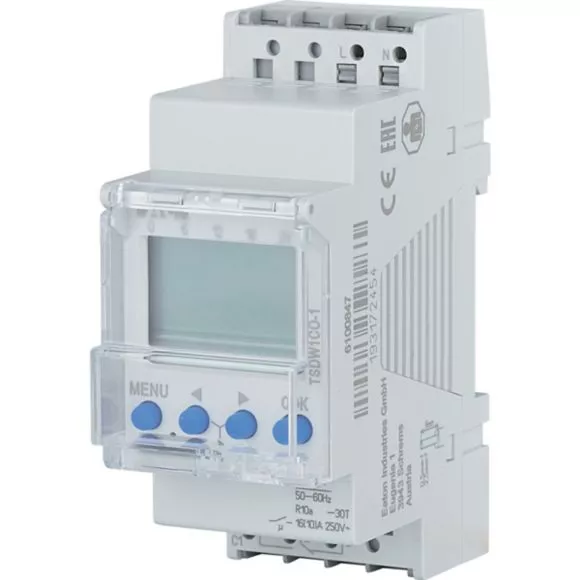

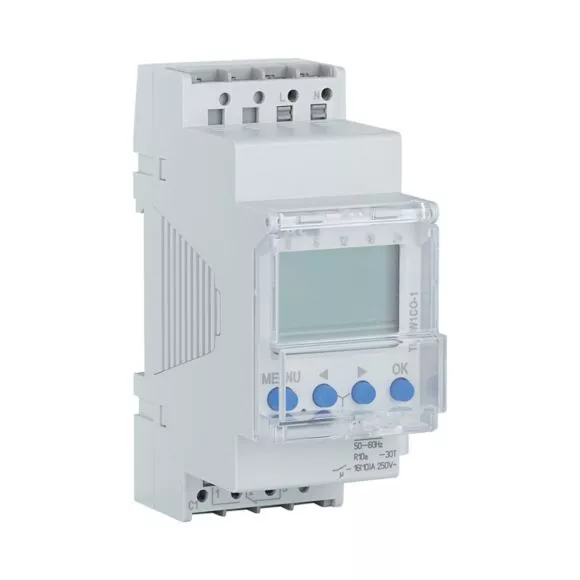

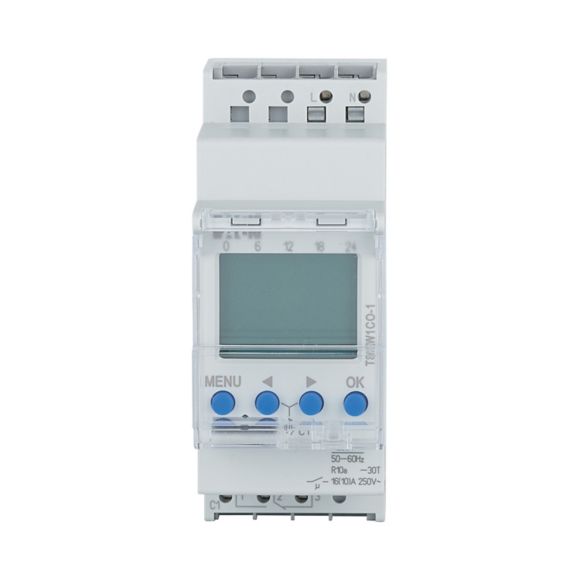

TSDW1CO-1 Cyfrowy zegar sterowniczy tyg., 1 przem.
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 196848 |
GTIN(EAN) | 9008790990441 |
Price unit | piece |
Catalog price | 1 409,58 zł (1 146,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 106 g |
ETIM class: | Digital time switch for distribution board |
Mounting method: | DIN rail |
Number of channels: | 1 |
Supply voltage: | 230 - 240 V |
Voltage type (supply voltage): | AC |
Frequency supply voltage: | 50 - 60 Hz |
Autonomy in hours: | 0 |
Autonomy in years: | 10 |
Accuracy per day: | 0.5 s |
Text guidance in display: | yes |
External programming: | yes |
With memory card: | no |
60 min program: | no |
24 h program: | yes |
Weekly program: | yes |
Annual program: | no |
Holiday program: | yes |
Impulse program: | no |
Cycle program: | no |
Astro program: | no |
Random program: | no |
Hour meter: | yes |
Mains synchronous: | no |
Quartz controlled: | yes |
Radio-controlled: | no |
Radio-controlled (DCF77): | no |
GPS (global positioning system): | no |
Contact type: | Change-over contact (NO/NC) |
Number of contacts: | 1 |
Shortest switching time channel 1: | 1 min |
Shortest switching time channel 2: | 0 min |
Number of memory locations: | 56 |
Automatic switching summer-/winter time: | yes |
Suitable for manual operation: | yes |
External pushbutton input: | no |
Switching preselection: | yes |
Nominal switching current at 250 V AC: | 16 A |
Max. switching power LED: | 600 W |
Potential free switch contact: | yes |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 2 |
Width: | 35.8 mm |
Height: | 90.1 mm |
Depth: | 69.2 mm |
