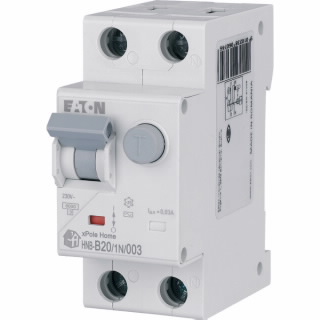

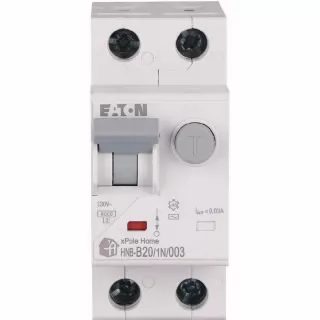

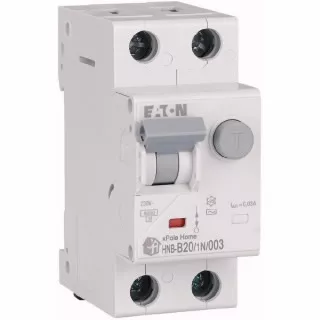

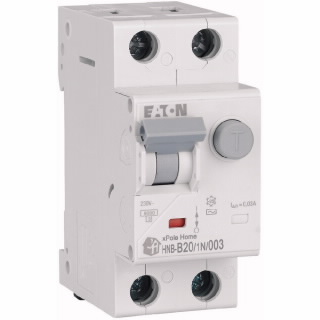

HNB-B20/1N/003 Wyłącznik kombinowany 6kA, In=20A, IΔN=0,03A, char. B, typ AC, 1+N bieg. Seria HNB
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 195122 |
GTIN(EAN) | 9010238060753 |
Price unit | piece |
Catalog price | 476,75 zł (387,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 203 g |
Country of origin | Rumunia |
ETIM class: | Earth leakage circuit breaker |
Number of poles (total): | 2 |
Number of protected poles: | 1 |
Rated voltage: | 230 V |
Rated insulation voltage Ui: | 500 V |
Rated impulse withstand voltage Uimp: | 4 kV |
Rated current: | 20 A |
Rated fault current: | 0.03 A |
Leakage current type: | AC |
Current limiting class: | 3 |
Rated short-circuit breaking capacity according to EN 61009: | 6 kA |
Rated short-circuit breaking capacity according to IEC 60947-2: | 0 kA |
Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
Disconnection characteristic: | Undelayed |
Surge current capacity: | 0.25 kA |
Voltage type: | AC |
Frequency: | 50 Hz |
Release characteristic: | B |
Concurrently switching neutral conductor: | yes |
With interlocking device: | no |
Over voltage category: | 3 |
Pollution degree: | 2 |
Ambient temperature during operating: | -25 - 40 °C |
Width in number of modular spacings: | 2 |
Built-in depth: | 69.5 mm |
Flush-mounted installation: | no |
Anti-nuisance tripping version: | no |
Degree of protection (IP): | IP20 |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
Connectable conductor cross section multi-wired: | 1 - 25 mm² |
