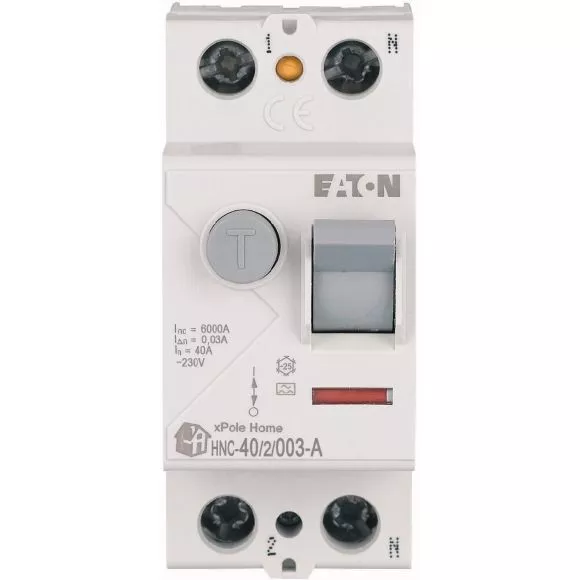

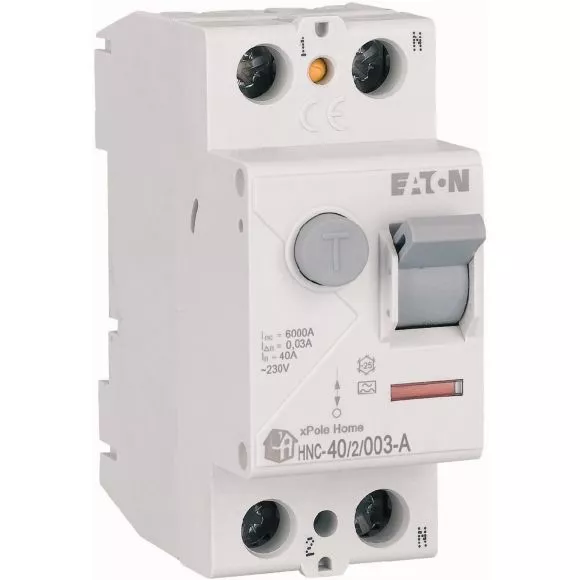

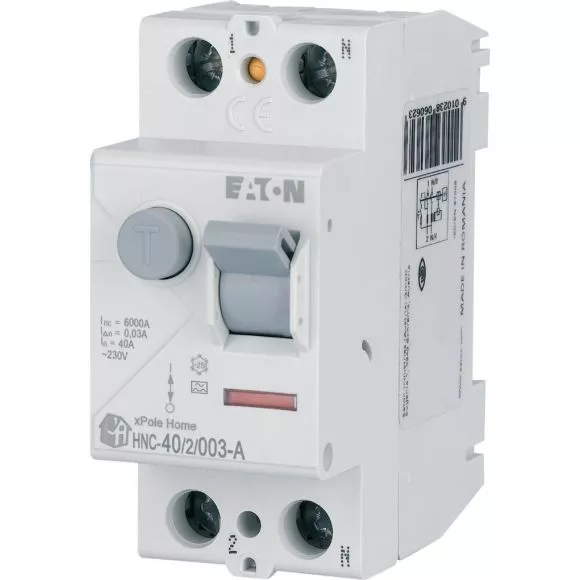

HNC-40/2/003-A Wyłącznik różnicowoprądowy 6kA, In=40A, IΔN=0,03A, Typ A, 2-bieg. Seria HNC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 194685 |
| GTIN(EAN) | 9010238061866 |
| Price unit | piece |
| Catalog price | 606,39 zł (493,00 zł + 23% VAT) |
| Sale price | from 144,51 zł / szt. (117,49 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Fehlerstrom-Schutzschalter HNC, 2-polig, Bemessungsstrom Ein: 40 A, Bemessungskurzschlussfestigkeit Icn: 6 kA, Bemessungsfehlerstrom IΔN: 0,03 A, Typ A, Schaltgeräte für den Wohnungsbereich und kommerzielle Anwendungen
Additional features:
| Information | Value |
|---|---|
| Net weight: | 207 g |
| Country of origin | Serbia |
| ETIM class: | Residual current circuit breaker (RCCB) |
| Number of poles: | 2 |
| Rated voltage: | 230 V |
| Rated current: | 40 A |
| Rated fault current: | 0,03 A |
| Rated insulation voltage Ui: | 440 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Mounting method: | DIN rail |
| Leakage current type: | A |
| Selective protection: | no |
| Short-time delayed tripping: | no |
| Short-circuit breaking capacity (Icw): | 6 kA |
| Surge current capacity: | 0,25 kA |
| Voltage type: | AC |
| With interlocking device: | yes |
| Frequency: | 50 Hz |
| Additional equipment possible: | yes |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 45 mm |
| Ambient temperature during operating: | -25 - 60 °C |
| Pollution degree: | 2 |
| Connectable conductor cross section multi-wired: | 1,5 - 16 mm² |
| Connectable conductor cross section solid-core: | 1,5 - 35 mm² |
| Explosion-proof: | no |
| RAL-number (similar): | 7 035 |
