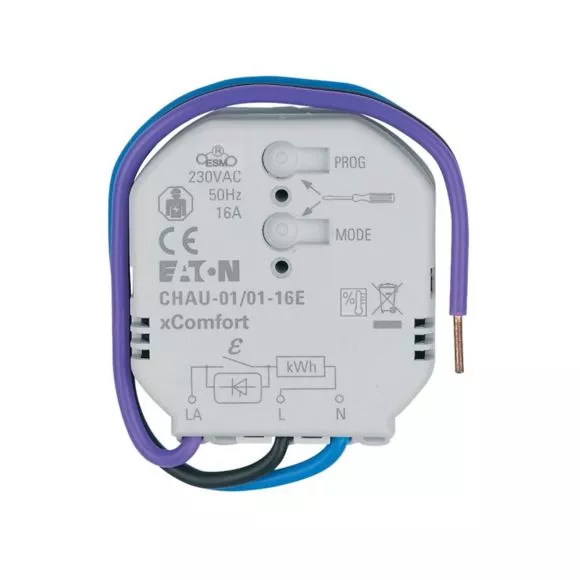

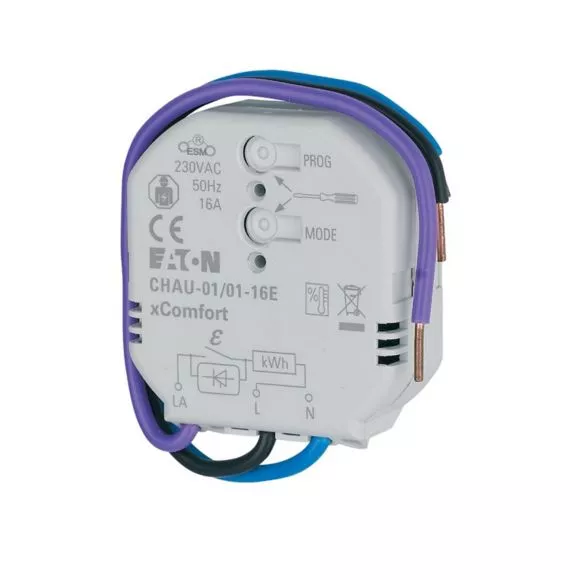

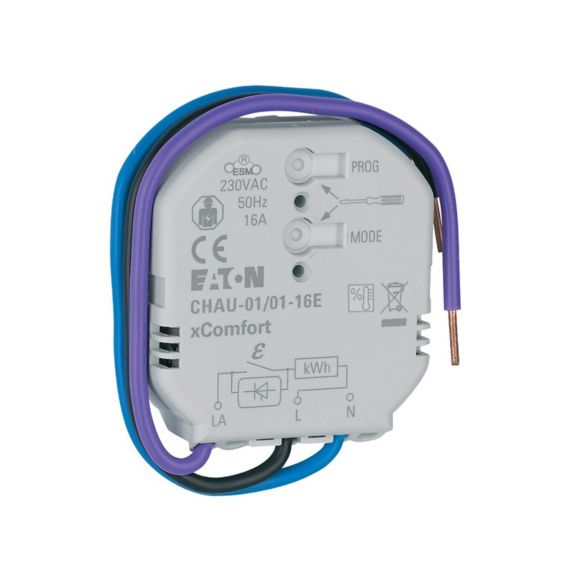

CHAU-01/01-16E Odbiornik sterujący ogrzewaniem, 16A, EMS
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 194373 |
| GTIN(EAN) | 9010238045941 |
| Price unit | piece |
| Catalog price | 2 988,90 zł (2 430,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Heating actuator for bus system |
| Bus system KNX: | no |
| Bus system KNX-RF (Radio Frequent): | no |
| Bus system radio frequent: | yes |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Other bus systems: | xComfort |
| Radio frequent bidirectional: | yes |
| Mounting method: | Flush-mounted |
| Width in number of modular spacings: | 3 |
| With bus connection: | yes |
| Bus module detachable: | no |
| Correcting variable consistent: | yes |
| Correcting variable switching: | no |
| Valve protection function: | no |
| Manual switch: | no |
| Max. switching current (resistive load): | 16 A |
| Number of outputs: | 1 |
| Max. output current: | 16 A |
| Switching voltage: | 196 - 253 V |
| Degree of protection (IP): | IP20 |
| Min. depth of built-in installation box: | 40 mm |
