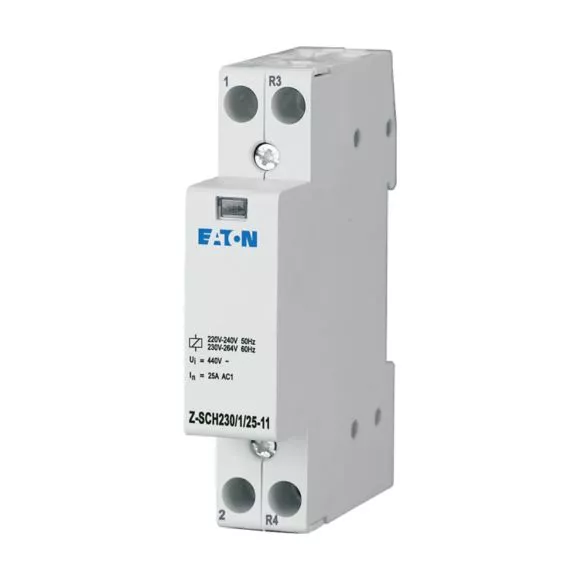

Z-SCH230/1/25-11 Stycznik instalacyjny Z-SCH 1MU szer. 230VAC 1zw. + 1rozw.
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 193886 |
| GTIN(EAN) | 9010238040090 |
| Price unit | piece |
| Catalog price | 248,71 zł (202,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 140 g |
| ETIM class: | Installation contactor for distribution board |
| Rated operating voltage: | 440 - 440 V |
| Rated operation current: | 25 A |
| Rated excitation voltage: | 195.5 - 253 V |
| Voltage type (operating voltage): | AC |
| Voltage type (excitation voltage): | AC |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 1 |
| Max. incandescent lamp load: | 3000 W |
| Max. load fluorescent lamp: | 1160 VA |
| Max. load fluorescent lamp (Duo circuit): | 2552 VA |
| Max. load fluorescent lamp (parallel compensated): | 1044 VA |
| Slider for hand switch: | no |
| Width in number of modular spacings: | 1 |
| Built-in depth: | 60 mm |
| Additional equipment possible: | yes |
| With day/night function: | no |
| Hum-free: | no |
| Degree of protection (IP): | IP20 |
