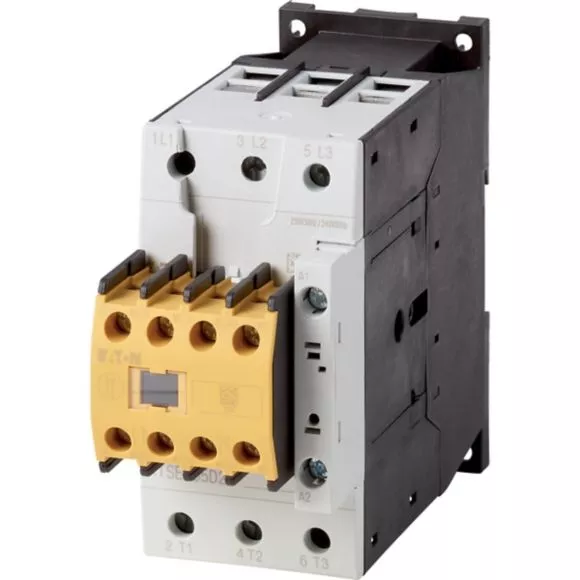

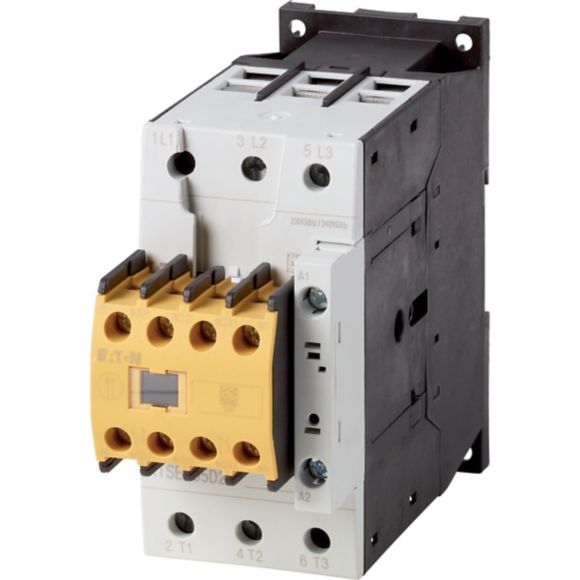

DILMS65-22(230V50HZ,240V60HZ) Stycznik mocy safety 65A, 3P + 2Z + 2R, sterowanie AC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 191748 |
| GTIN(EAN) | 4015081922611 |
| Price unit | piece |
| Catalog price | 1 934,79 zł (1 573,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 920 g |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 240 - 240 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-1, 400 V: | 98 A |
| Rated operation current Ie at AC-3, 400 V: | 65 A |
| Rated operation power at AC-3, 400 V: | 30 kW |
| Rated operation current Ie at AC-4, 400 V: | 25 A |
| Rated operation power at AC-4, 400 V: | 12 kW |
| Rated operation power NEMA: | 37 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 2 |
| Number of auxiliary contacts as normally closed contact: | 2 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
