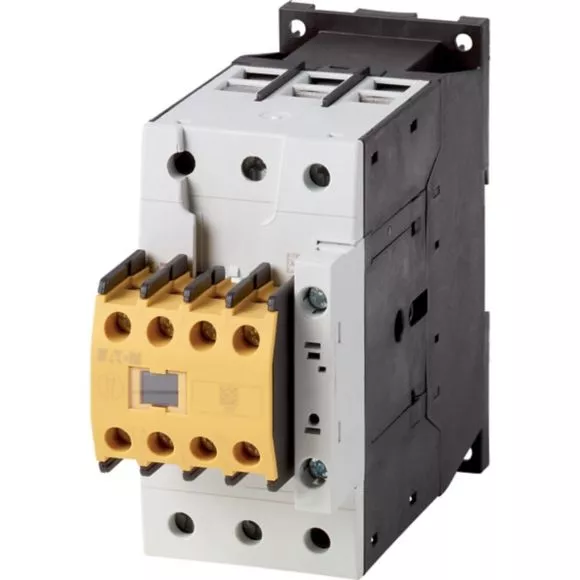

DILMS50-22(RDC24) Stycznik mocy safety 50A, 3P + 2Z + 2R, sterowanie DC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 191714 |
| GTIN(EAN) | 4015081922277 |
| Price unit | piece |
| Catalog price | 2 258,28 zł (1 836,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,082 kg |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Voltage type for actuating: | DC |
| Rated operation current Ie at AC-1, 400 V: | 80 A |
| Rated operation current Ie at AC-3, 400 V: | 50 A |
| Rated operation power at AC-3, 400 V: | 22 kW |
| Rated operation current Ie at AC-4, 400 V: | 21 A |
| Rated operation power at AC-4, 400 V: | 10 kW |
| Rated operation power NEMA: | 29.8 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 2 |
| Number of auxiliary contacts as normally closed contact: | 2 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
