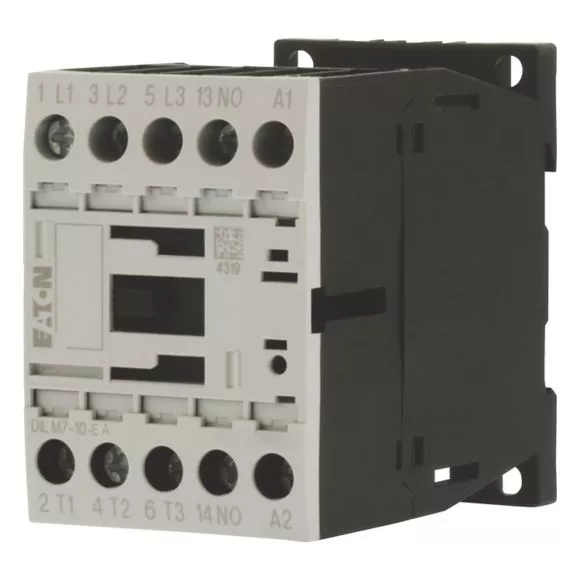

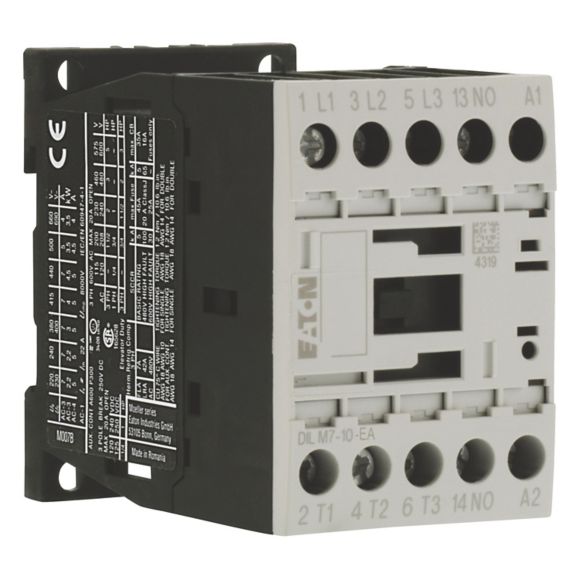

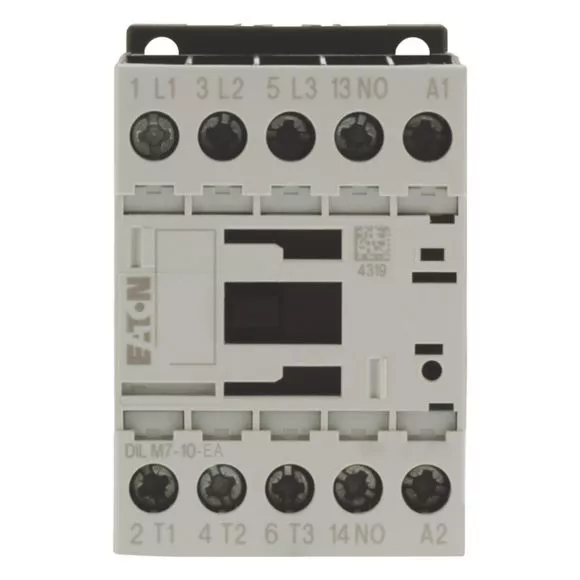

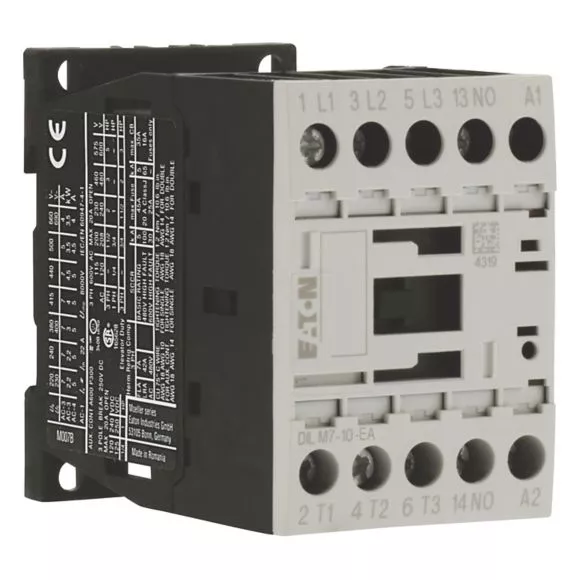

DILM7-10-EA(24VDC) Stycznik,3kW/400V,sterowanie 24VDC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 190026 |
| GTIN(EAN) | 4015081880225 |
| Price unit | piece |
| Catalog price | 216,11 zł (175,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 296 g |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Voltage type for actuating: | DC |
| Rated operation current Ie at AC-1, 400 V: | 22 A |
| Rated operation current Ie at AC-3, 400 V: | 7 A |
| Rated operation power at AC-3, 400 V: | 3 kW |
| Rated operation current Ie at AC-4, 400 V: | 5 A |
| Rated operation power at AC-4, 400 V: | 2.2 kW |
| Rated operation power NEMA: | 2.2 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
