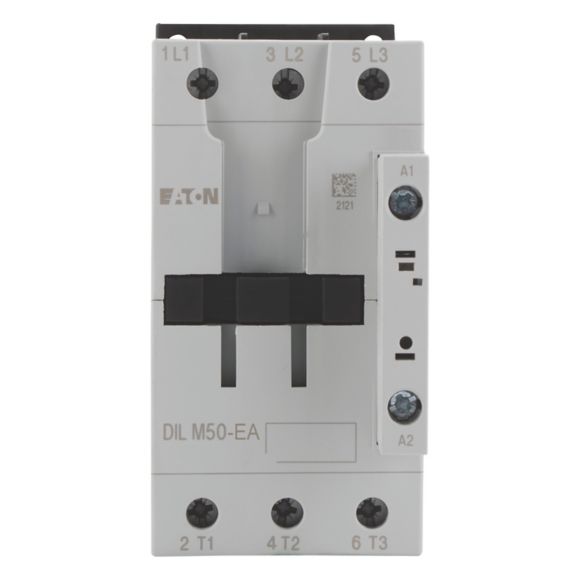

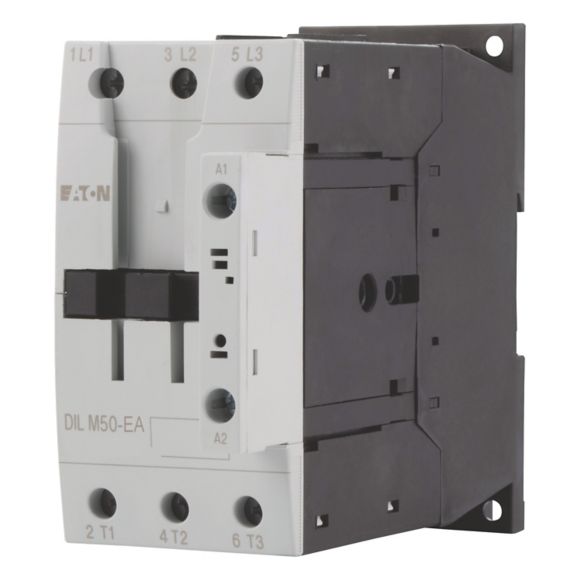

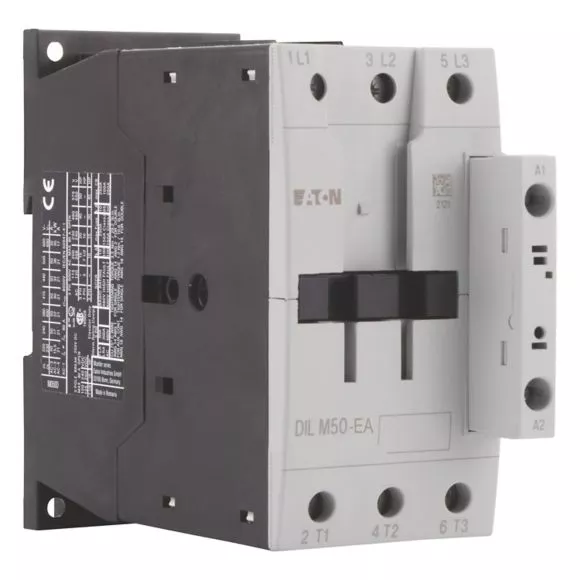

DILM50-EA(230V50HZ,240V60HZ) Stycznik,22kW/400V,sterowanie 230VAC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 190011 |
| GTIN(EAN) | 4015081880072 |
| Price unit | piece |
| Catalog price | 1 007,37 zł (819,00 zł + 23% VAT) |
| Sale price | from 439,13 zł / szt. (357,02 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Leistungsschütz, Anwendung: Leistungsschütze für Motoren, Schütze bis 170 A, 3-polig, Gebrauchskategorie: AC-1: Nicht oder leicht induktive Lasten, Widerstandsöfen, NAC-3: Käfigläufermotoren: anlassen, während Betrieb ausschalten, AC-4: Käfigläufermotoren: anlassen, Einstecken, reversieren, Tippen, Anschlusstechnik: Schraubklemmen, Hinweise: Geeignet auch für Motoren der Effizienzklasse IE3., IE3-fähige Geräte sind mit dem Logo auf der Verpackung gekennzeichnet., Anzahl der Pole: 3-polig, Bemessungsbetriebsstrom AC-3, 380 V, 400 V: Ie= 50 A, Bemessungsbetriebsstrom AC-1 konventioneller thermischer Strom, 3-polig
Additional features:
| Information | Value |
|---|---|
| Net weight: | 872 g |
| Country of origin | Rumunia |
| ETIM class: | Power contactor, AC switching |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-1, 400 V: | 80 A |
| Rated operation current Ie at AC-3, 400 V: | 50 A |
| Rated operation power at AC-3, 400 V: | 22 kW |
| Rated operation current Ie at AC-4, 400 V: | 21 A |
| Rated operation power at AC-4, 400 V: | 10 kW |
| Rated operation power NEMA: | 29,8 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Width: | 55 mm |
| Height: | 115 mm |
| Depth: | 132,1 mm |
