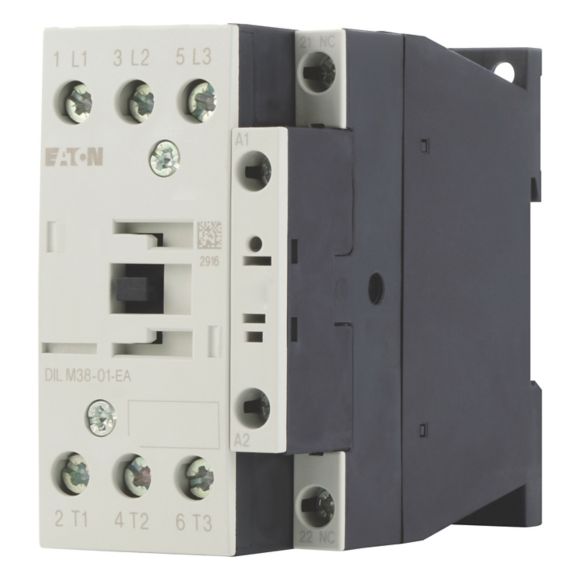

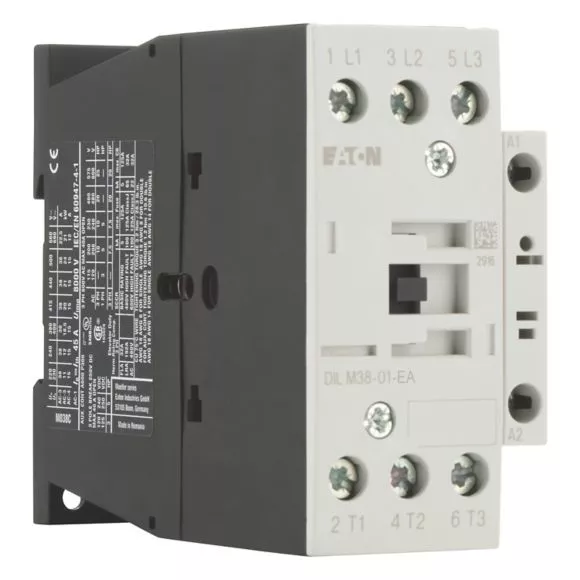

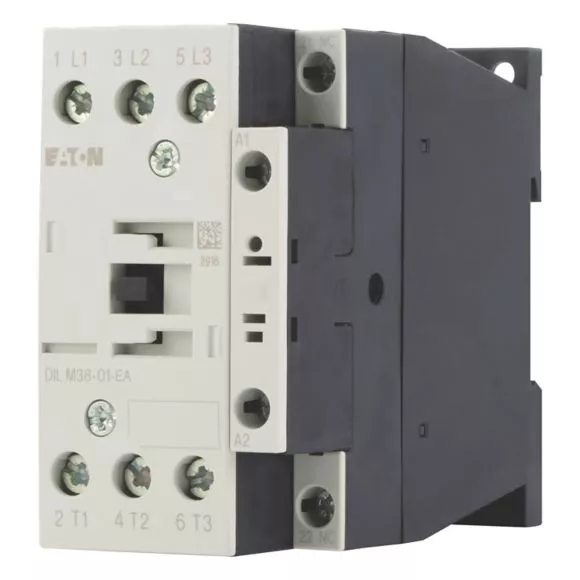

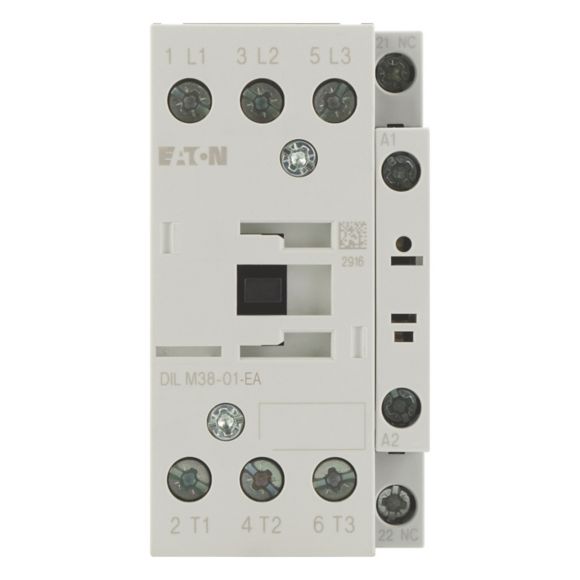

DILM38-01-EA(230V50HZ,240V60HZ) Stycznik,18,5kW/400V,sterowanie 230VAC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 190007 |
| GTIN(EAN) | 4015081880034 |
| Price unit | piece |
| Catalog price | 738,49 zł (600,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 428 g |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 240 - 240 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-1, 400 V: | 45 A |
| Rated operation current Ie at AC-3, 400 V: | 38 A |
| Rated operation power at AC-3, 400 V: | 18.5 kW |
| Rated operation current Ie at AC-4, 400 V: | 15 A |
| Rated operation power at AC-4, 400 V: | 7 kW |
| Rated operation power NEMA: | 14.9 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
