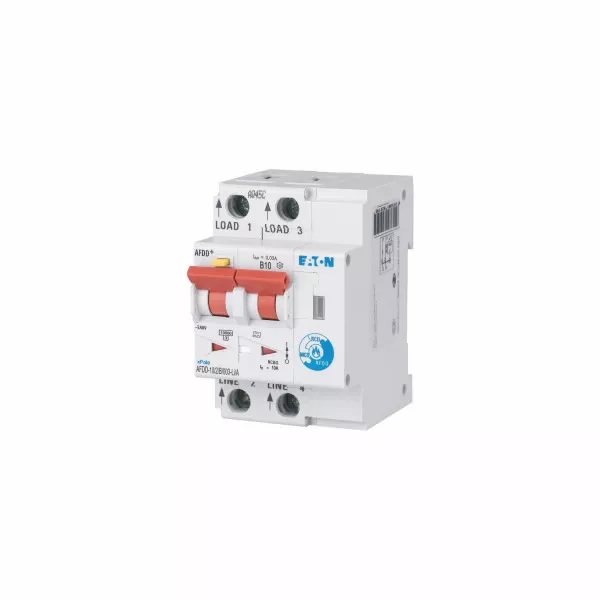

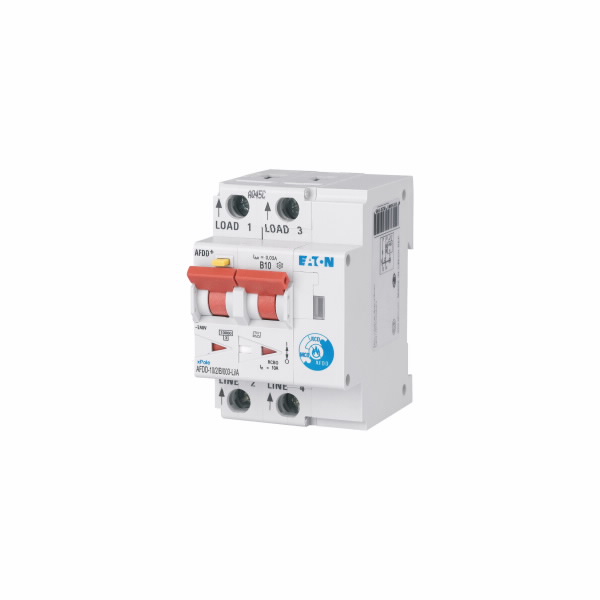

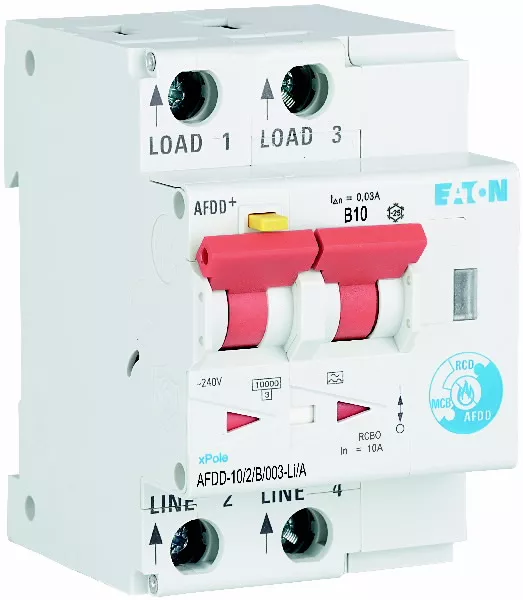

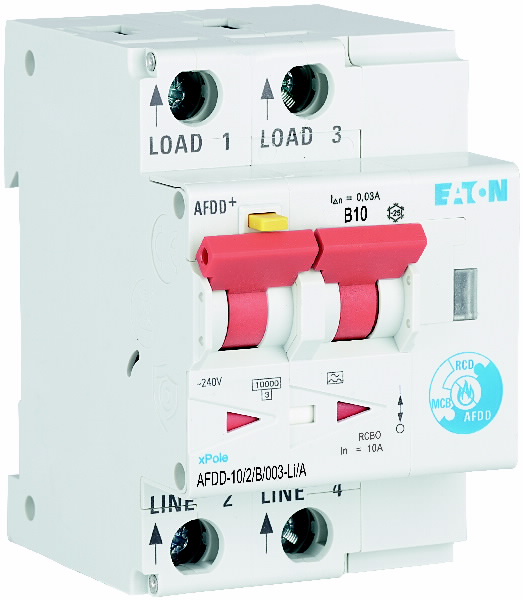

AFDD-10/2/B/003-LI/A Przeciwpożarowy detektor iskrzenia, In=10A, IΔn=0,03A, char. B, Typ Li/A, 2-bieg seria AFDD
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 187169 |
| GTIN(EAN) | 4015081822188 |
| Price unit | piece |
| Catalog price | 2 201,70 zł (1 790,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 277 g |
| ETIM class: | Earth leakage circuit breaker with auxiliary device |
| Frequency: | 50 Hz |
| Built-in depth: | 67 mm |
| Rated current: | 10 A |
| Rated voltage: | 230 V |
| Release characteristic: | B |
| Number of poles: | 2 |
| Rated fault current: | 0.03 A |
| Leakage current type: | A |
| Current limiting class: | 3 |
| Over voltage category: | 3 |
| Pollution degree: | 2 |
| Width in number of modular spacings: | 3 |
| Degree of protection (IP): | IP20 |
| Concurrently switching neutral conductor: | no |
| Rated short-circuit breaking capacity according to IEC 60947-2: | 0 kA |
| Rated switch current auxiliary device: | 0 A |
| Rated voltage auxiliary device: | 230 V |
| Control voltage type auxiliary equipment: | AC |
| Additional equipment attached at delivery: | Fire protection switch |
| Rated short-circuit breaking capacity according to EN 61009: | 10 kA |
