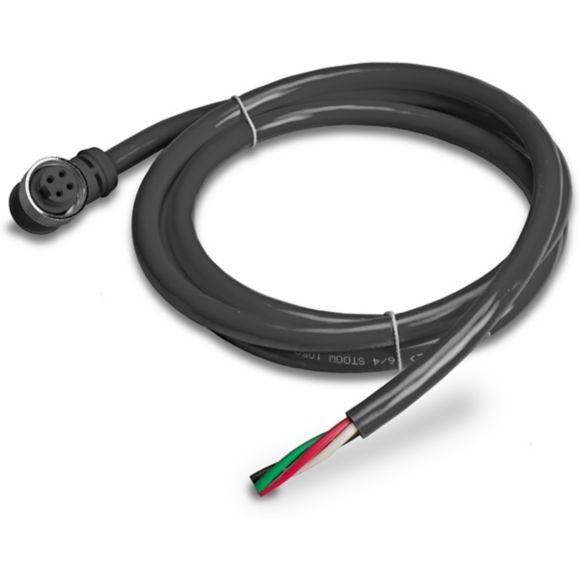

SWD4-M3LR4P-2R Moduł IP67 - SmartWire-DT
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 183218 |
| GTIN(EAN) | 4015081781515 |
| Price unit | piece |
| Catalog price | 567,77 zł (461,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 205 g |
| Country of origin | Stany Zjednoczone |
| ETIM class: | Data and communication cable |
| Conductor material: | Other |
| Conductor surface: | Bare |
| Diameter conductor: | 1.5 mm |
| Nominal cross section conductor: | 0.5 mm² |
| AWG size: | 20 |
| Conductor category: | Class 2 = stranded |
| Number of cores: | 4 |
| Number of stranding elements: | 26 |
| Stranding element: | Pairs |
| Material core insulation: | Other |
| Specification core insulation: | Other |
| Core identification according to HD 308 S2: | no |
| Core identification: | Colour |
| Screen over stranding element: | Foil |
| Stranding: | Bundle |
| Screen over stranding: | None |
| Longitudinal water blocking cable: | no |
| Radial water blocking cable: | yes |
| Suitable for underground installation: | no |
| Approved type of underground installation: | Other |
| Protective sheath: | Other |
| Material outer sheath: | Polyvinyl chloride (PVC) |
| Specification material outer sheath: | Other |
| Colour outer sheath: | Black |
| Armouring/reinforcement: | None |
| Material armouring: | Other |
| Cable geometry: | Round |
| Reaction-to-fire according to EN 13501-6: Class: | None |
| Reaction-to-fire according to EN 13501-6: Smoke production: | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
| Reaction-to-fire according to EN 13501-6: Acidity: | None |
| Halogen free according to EN IEC 60754-2: | no |
| Low smoke according to EN IEC 61034-2: | no |
| Oil resistant according to EN IEC 60811-404: | yes |
| Outer diameter approx.: | 11 mm |
| Min. permitted bending radius, moving application with forced guidance: | 0 mm |
| Min. permitted bending radius, moving application/free movement: | 0 mm |
| Min. permitted bending radius, stationary application/permanent installation: | 64 mm |
| Permitted cable outer temperature during assembling/handling: | -25 - 70 °C |
| Permitted cable outer temperature after assembling without vibration: | -25 - 70 °C |
| Category: | Other |
| NVP value: | 66.5 % |
| UV resistant: | no |
| Certified for shipboard application: | no |
| Suitable as telephone cable: | no |
| Suitable as computer data cable: | no |
| Suitable as signalling cable: | yes |
| Compatible with Grade2TV according to XP-C 90-483: | no |
| Compatible with Grade3TV according to XP-C 90-483: | no |
| Cable type: | Other |
| Duplex: | no |
| Number of sheath layers: | 0 |
| Flame retardant according to IEC 60332-1-2: | no |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R): | no |
| Flame retardant according to IEC 60332-3-22 (Cat A): | no |
| Flame retardant according to IEC 60332-3-23 (Cat B): | no |
| Flame retardant according to IEC 60332-3-24 (Cat C): | no |
| Flame retardant according to IEC 60332-3-25 (Cat D): | no |
| Halogen free according to EN IEC 60754-1: | no |
| Halogen free according to EN IEC 60754-3: | no |
| Circuit integrity according to IEC 60331-23: | no |
| Suitable for use as security alarm cable: | no |
| Drain wire: | no |
| With rip cord: | no |
| Cable width approx.: | 5.6 mm |
| Cable height approx.: | 51.282 mm |
| Characteristic impedance: | 100 Ω |
| Nominal voltage U: | 24 V |
| With rodent protection: | no |
