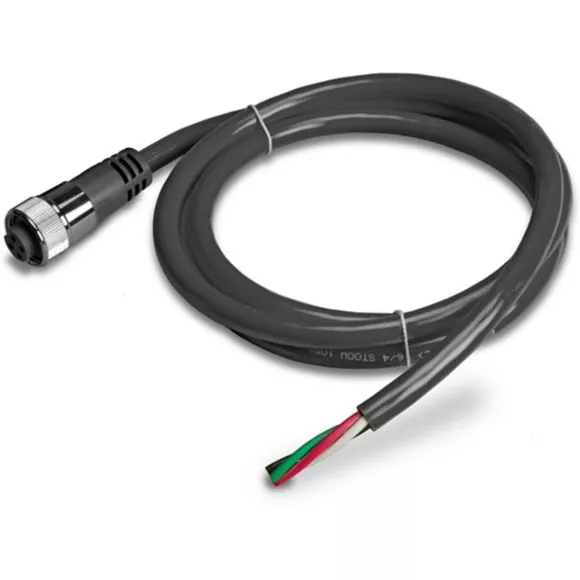

SWD4-3LR4P-2S Moduł IP67 - SmartWire-DT
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 183213 |
GTIN(EAN) | 4015081781461 |
Price unit | piece |
Catalog price | 700,98 zł (569,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 409 g |
ETIM class: | Data and communication cable |
Conductor material: | Other |
Conductor surface: | Bare |
Diameter conductor: | 1.5 mm |
Nominal cross section conductor: | 0.5 mm² |
AWG size: | 20 |
Conductor category: | Class 2 = stranded |
Number of cores: | 4 |
Number of stranding elements: | 26 |
Stranding element: | Pairs |
Material core insulation: | Other |
Specification core insulation: | Other |
Core identification according to HD 308 S2: | no |
Core identification: | Colour |
Screen over stranding element: | Foil |
Stranding: | Bundle |
Screen over stranding: | None |
Longitudinal water blocking cable: | yes |
Radial water blocking cable: | yes |
Suitable for underground installation: | no |
Approved type of underground installation: | Other |
Protective sheath: | Other |
Material outer sheath: | Polyvinyl chloride (PVC) |
Specification material outer sheath: | Other |
Colour outer sheath: | Black |
Armouring/reinforcement: | None |
Material armouring: | Other |
Cable geometry: | Round |
Reaction-to-fire according to EN 13501-6: Class: | None |
Reaction-to-fire according to EN 13501-6: Smoke production: | None |
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
Reaction-to-fire according to EN 13501-6: Acidity: | None |
Halogen free according to EN IEC 60754-2: | no |
Low smoke according to EN IEC 61034-2: | no |
Oil resistant according to EN IEC 60811-404: | yes |
Outer diameter approx.: | 11 mm |
Min. permitted bending radius, moving application with forced guidance: | 0 mm |
Min. permitted bending radius, moving application/free movement: | 0 mm |
Min. permitted bending radius, stationary application/permanent installation: | 64 mm |
Permitted cable outer temperature during assembling/handling: | -25 - 70 °C |
Permitted cable outer temperature after assembling without vibration: | -25 - 70 °C |
Category: | Other |
NVP value: | 66.5 % |
UV resistant: | yes |
Certified for shipboard application: | no |
Suitable as telephone cable: | no |
Suitable as computer data cable: | no |
Suitable as signalling cable: | yes |
Compatible with Grade2TV according to XP-C 90-483: | no |
Compatible with Grade3TV according to XP-C 90-483: | no |
