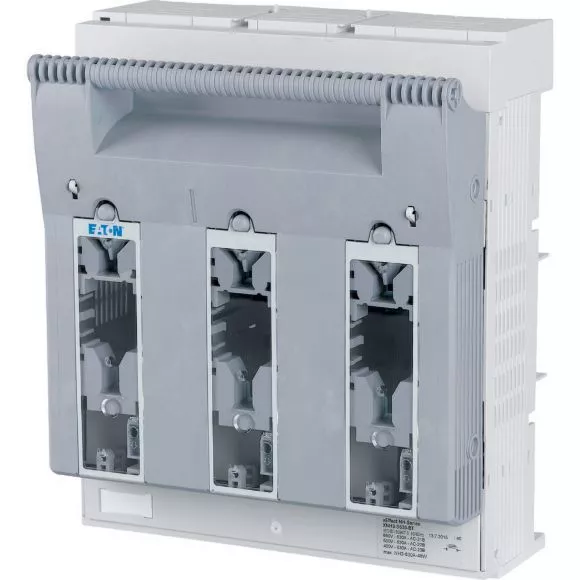

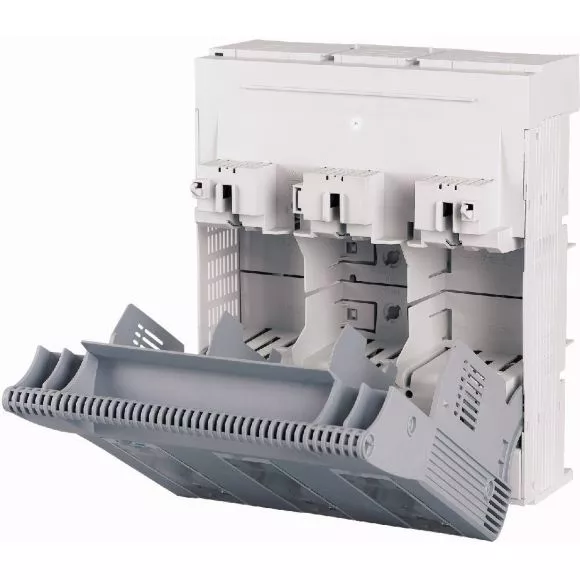

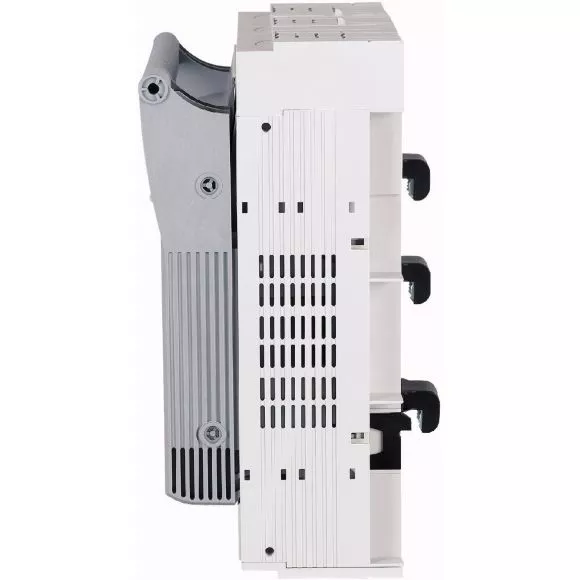

XNH3-S630-BT Rozłącznik bezpiecznikowy 630A, rozmiar 3, 3-bieg., montaż na Sasy 60i, wersja Basic z zaciskami skrzynkowymi
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 183078 |
GTIN(EAN) | 4015081780051 |
Price unit | piece |
Catalog price | 7 391,07 zł (6 009,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 4,474 kg |
ETIM class: | Fuse switch disconnector |
Version as main switch: | no |
Version as safety switch: | no |
Max. rated operation voltage Ue AC: | 690 V |
Rated permanent current Iu: | 630 A |
Rated operation power at AC-23, 400 V: | 0 kW |
Conditioned rated short-circuit current Iq: | 120 kA |
Rated short-time withstand current lcw: | 3 kA |
Suitable for fuses: | NH3 |
Number of poles: | 3 |
With error protection: | no |
Type of electrical connection of main circuit: | Frame clamp |
Cable entry: | Other |
Equipped with connectors: | no |
Suitable for floor mounting: | no |
Suitable for front mounting: | no |
Suitable for busbar mounting: | yes |
Type of control element: | Cover grip |
Position control element: | Front side |
Motor drive optional: | no |
Motor drive integrated: | no |
Version as emergency stop installation: | no |
Degree of protection (IP), front side: | Other |
