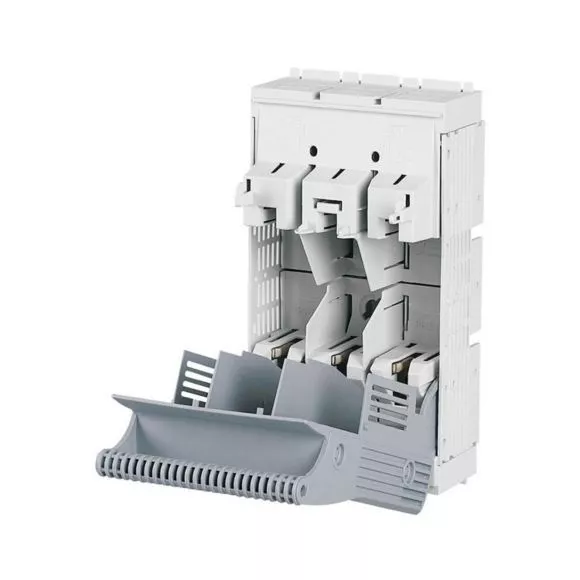

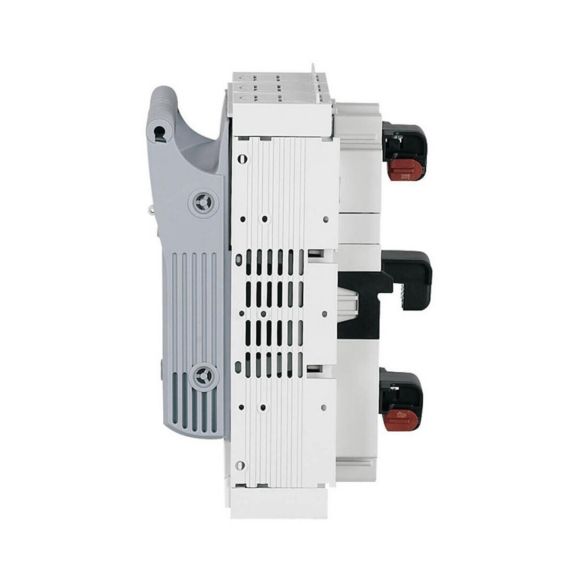

XNH00-S160-BT1 Rozłącznik bezpiecznikowy 160A, rozmiar 00, 3-bieg., montaż na Sasy 60i, wersja Basic z zaciskami skrzynkowymi
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 183034 |
| GTIN(EAN) | 4015081779611 |
| Price unit | piece |
| Catalog price | 1 172,56 zł (953,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 811 g |
| Country of origin | Niemcy |
| ETIM class: | Fuse switch disconnector |
| Version as main switch: | no |
| Version as safety switch: | no |
| Max. rated operation voltage Ue AC: | 690 V |
| Rated permanent current Iu: | 160 A |
| Rated operation power at AC-23, 400 V: | 0 kW |
| Conditioned rated short-circuit current Iq: | 120 kA |
| Rated short-time withstand current lcw: | 7 kA |
| Suitable for fuses: | NH00 |
| Number of poles: | 3 |
| With error protection: | no |
| Type of electrical connection of main circuit: | Frame clamp |
| Cable entry: | Other |
| Equipped with connectors: | no |
| Suitable for floor mounting: | no |
| Suitable for front mounting: | no |
| Suitable for busbar mounting: | yes |
| Type of control element: | Cover grip |
| Position control element: | Front side |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Version as emergency stop installation: | no |
| Degree of protection (IP), front side: | Other |
