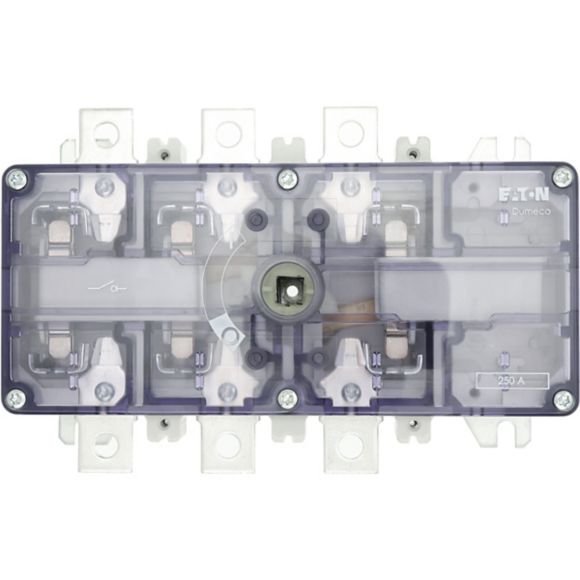

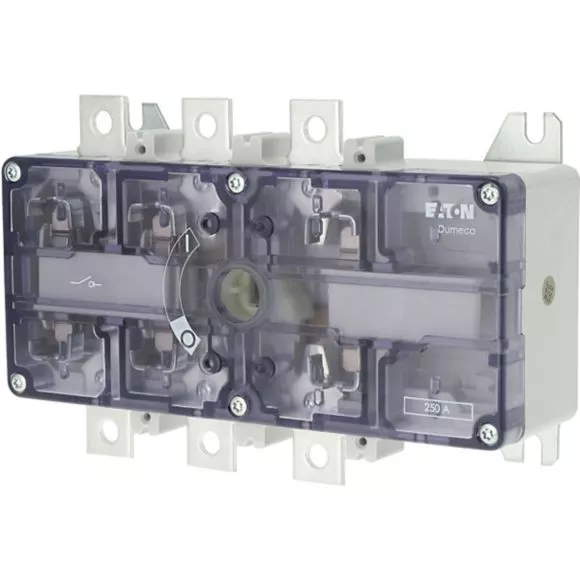

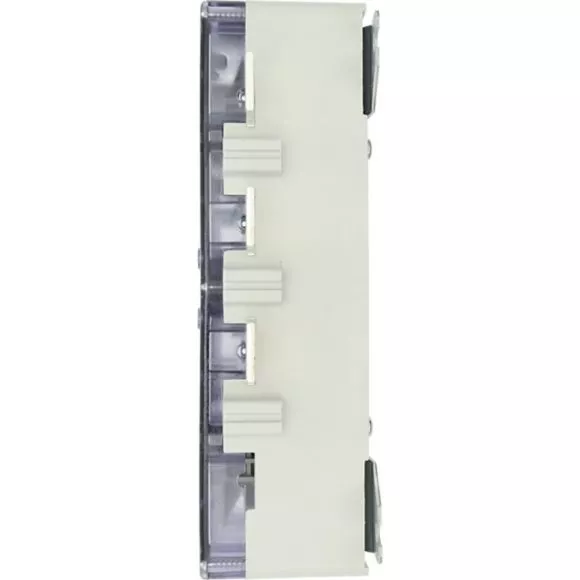

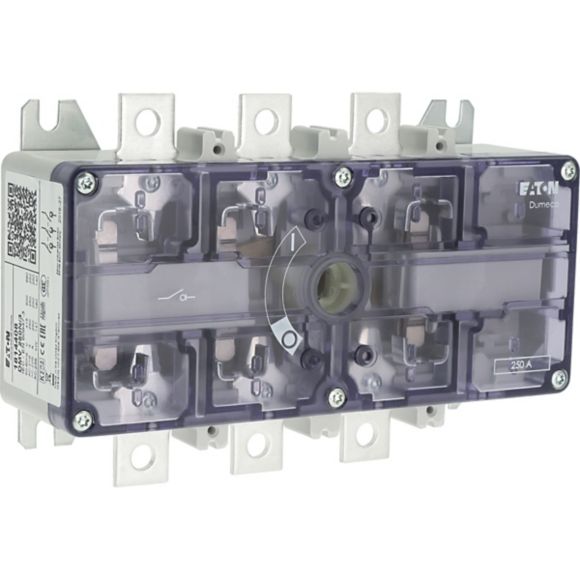

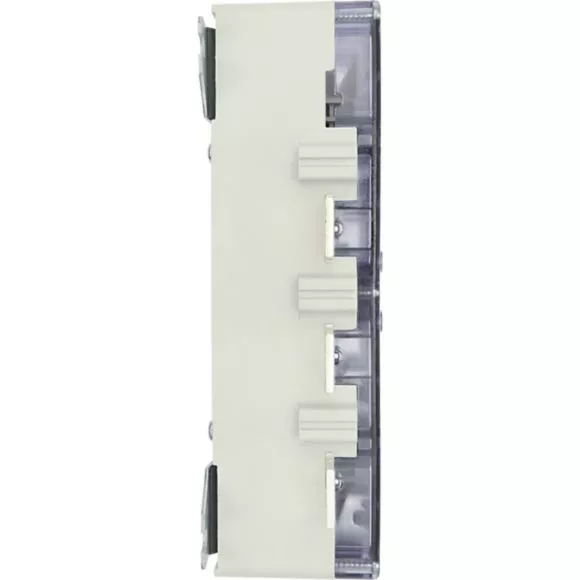

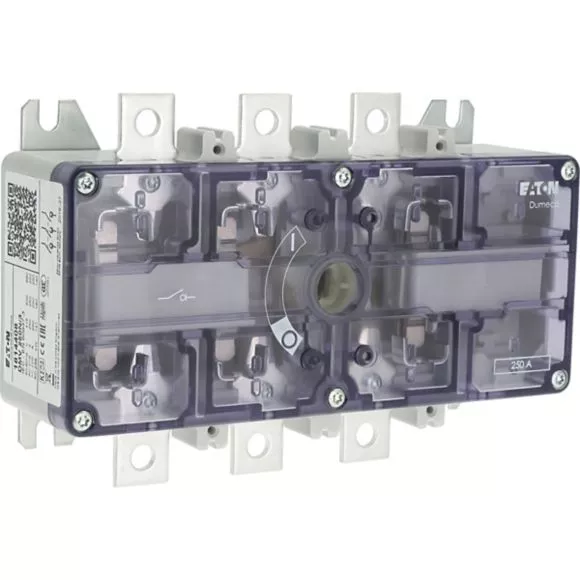

DMV-250N/3 Rozłącznik izolacyjny Dumeco 3P 250A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 1814408 |
| GTIN(EAN) | 8711426853812 |
| Price unit | piece |
| Catalog price | 1 691,25 zł (1 375,00 zł + 23% VAT) |
| Sale price | from 528,44 zł / szt. (429,63 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozłącznik izolacyjny Dumeco typ DMV 250N/3, moc załączalna 250 A, 3- biegunowy, bez osi i rękojeści, z akcesoriami do przyłączania
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,62 kg |
| ETIM class: | Switch disconnector (low voltage) |
| Version as main switch: | no |
| Version as maintenance-/service switch: | no |
| Version as safety switch: | no |
| Version as emergency stop installation: | yes |
| Version as reversing switch: | no |
| Number of switches: | 1 |
| Max. rated operation voltage Ue AC: | 690 V |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current Iu: | 250 A |
| Rated permanent current at AC-23, 400 V: | 250 A |
| Rated permanent current at AC-21, 400 V: | 250 A |
| Rated operation power at AC-3, 400 V: | 0 kW |
| Rated short-time withstand current lcw: | 12 kA |
| Rated operation power at AC-23, 400 V: | 140 kW |
| Switching power at 400 V: | 140 kW |
| Conditioned rated short-circuit current Iq: | 100 kA |
| Number of poles: | 3 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Voltage release optional: | no |
| Device construction: | Complete device in housing |
| Suitable for floor mounting: | yes |
| Suitable for front mounting 4-hole: | no |
| Suitable for front mounting centre: | no |
| Suitable for distribution board installation: | no |
| Suitable for intermediate mounting: | no |
| Colour control element: | Other |
| Type of control element: | Other |
| Interlockable: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Degree of protection (IP), front side: | IP20 |
| Degree of protection (NEMA): | Other |
