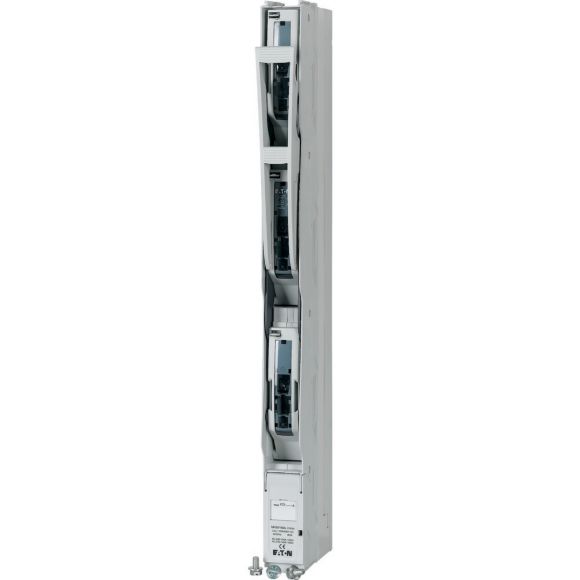

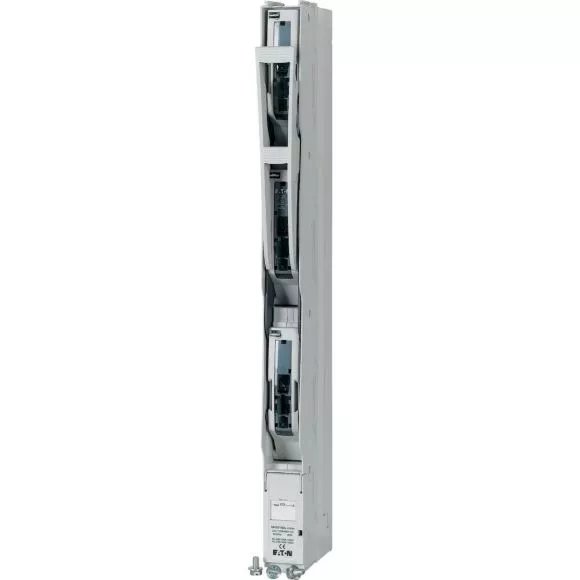

NHW-SLS-00/H Rozłącznik listwowy 00 160A
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 179754 |
GTIN(EAN) | 4015081748709 |
Price unit | piece |
Catalog price | 2 076,24 zł (1 688,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 1,65 kg |
ETIM class: | In-line fuse switch disconnector base |
Model: | Protection switch separator |
Double interrupting: | yes |
Rated permanent current Iu: | 160 A |
Distance between rail centre, 40 mm: | no |
Distance between rail centre, 50 mm: | no |
Distance between rail centre, 60 mm: | no |
Distance between rail centre, 100 mm: | no |
Distance between rail centre, 185 mm: | yes |
Max. rated operation voltage Ue AC: | 1000 V |
Conditioned rated short-circuit current Iq: | 100 kA |
Type of electrical connection of main circuit: | Rail connection |
Number of poles: | 3 |
Construction size fuse insert: | NH00 |
Release indication: | None |
