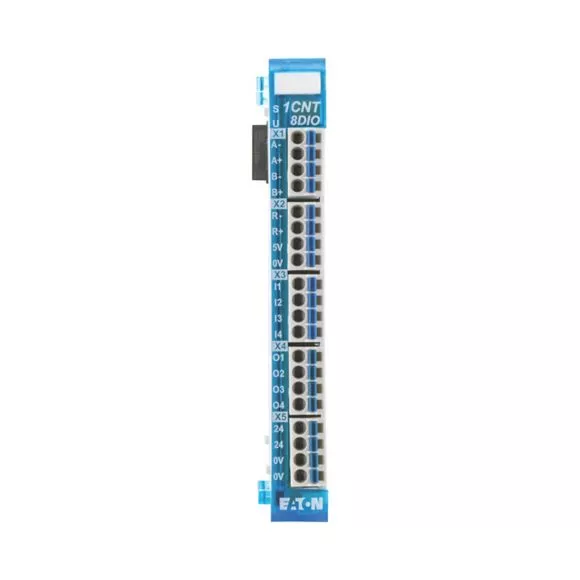

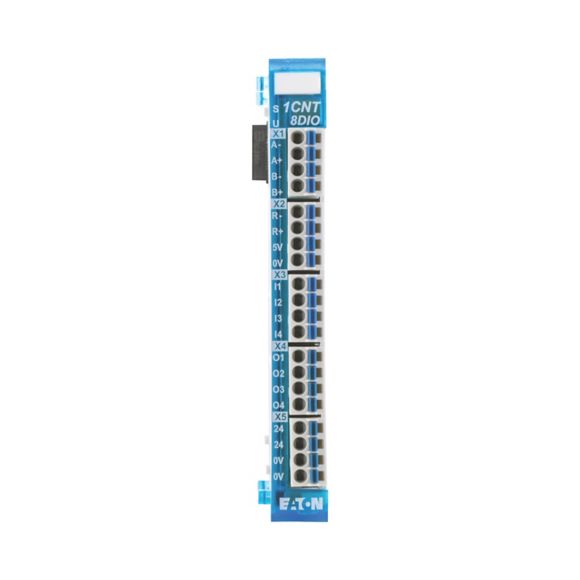

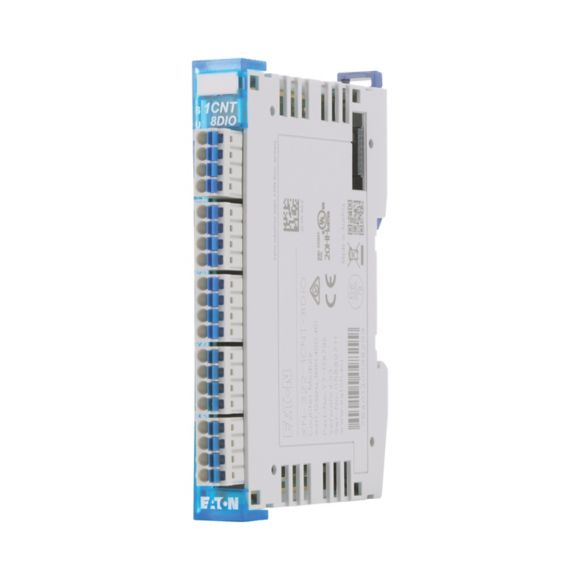

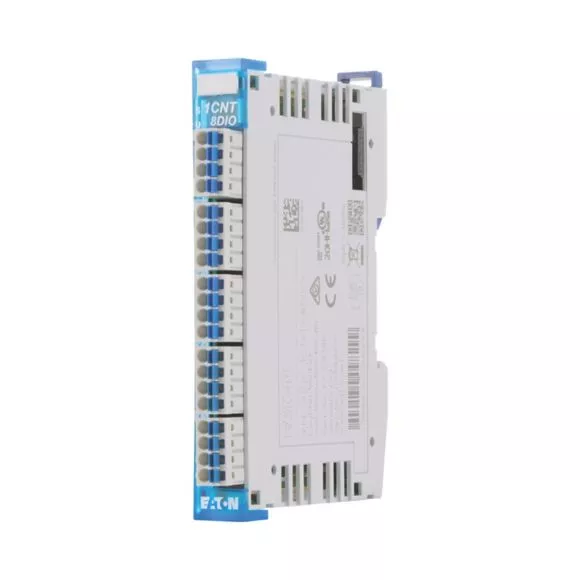

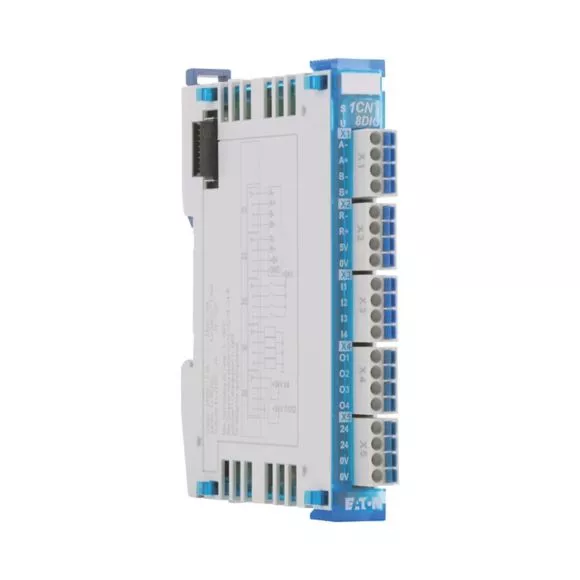

XN-322-1CNT-8DIO Moduł szybkiego licznika 125kHz, 16Bit, 4 WE, 4 WY
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 178795 |
| GTIN(EAN) | 7640130098299 |
| Price unit | piece |
| Catalog price | 1 790,88 zł (1 456,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Counter module with RS422/TTL inputs for frequencies of up to 125 kHz and 4 digital inputs and 4 digital outputs with 2 A. These modules are particularly useful for reading counter values used in positioning applications.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 61 g |
| Country of origin | Austria |
| ETIM class: | Fieldbus, decentr. periphery - function-/technology module |
| Supply voltage AC 50 Hz: | 0 - 0 V |
| Supply voltage AC 60 Hz: | 0 - 0 V |
| Supply voltage DC: | 18 - 30 V |
| Voltage type (supply voltage): | DC |
| Number of functions: | 0 |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces wireless: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces other: | 1 |
| With optical interface: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for other bus systems: | yes |
| Radio standard Bluetooth: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| IO link master: | no |
| System accessory: | yes |
| Suitable for counting: | yes |
| Suitable for weighing: | no |
| Suitable for temperature control: | no |
| Suitable for welding control: | no |
| Suitable for pressure control: | no |
| Suitable for NC: | no |
| Suitable for electronic positioning: | yes |
| Suitable for CNC: | no |
| Suitable for SSI: | no |
| Suitable for incremental data detection: | yes |
| Suitable for detection absolute value: | no |
| Suitable for flux controller: | yes |
| Suitable for flux measurement: | yes |
| Suitable for path controller: | no |
| Suitable for cam controller: | no |
| Suitable for flying saw: | no |
| Suitable for multi-axis control: | no |
| Suitable for single-axis controller: | yes |
| Suitable for multi-axis positioning: | no |
| Suitable for single-axis positioning: | yes |
| Function block restart blockage: | no |
| Function block automatic reset: | no |
| Contactor control function block: | no |
| Function block emergency stop: | no |
| Function block contactless working protection installation: | no |
| Function block affirm pushbutton: | no |
| Function block 2-hand switching: | no |
| Function block operating mode selection: | no |
| Function block access control: | no |
| Degree of protection (IP): | IP20 |
| Degree of protection (NEMA): | 1 |
| Fieldbus connection over separate bus coupler possible: | yes |
| Frequency measurement: | yes |
| Rail mounting possible: | yes |
| Wall mounting/direct mounting: | no |
| Front built-in possible: | no |
| Rack-assembly possible: | no |
| Suitable for safety functions: | no |
| SIL according to IEC 61508: | None |
| Performance level according to EN ISO 13849-1: | None |
| Appendant operation agent (Ex ia): | no |
| Appendant operation agent (Ex ib): | no |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Width: | 80.3 mm |
| Height: | 16.8 mm |
| Depth: | 104.2 mm |
| Supporting protocol for EtherCAT: | no |
| Certified for UL hazardous location class I: | no |
| Certified for UL hazardous location class II: | no |
| Certified for UL hazardous location class III: | no |
| Certified for UL hazardous location division 1: | no |
| Certified for UL hazardous location division 2: | no |
| Certified for UL hazardous location group A (acetylene): | no |
| Certified for UL hazardous location group B (hydrogen): | no |
| Certified for UL hazardous location group C (ethylene): | no |
| Certified for UL hazardous location group D (propane): | no |
| Certified for UL hazardous location group E (metal dusts): | no |
| Certified for UL hazardous location group F (carbonaceous dusts): | no |
| Certified for UL hazardous location group G (non-conductive dusts): | no |
