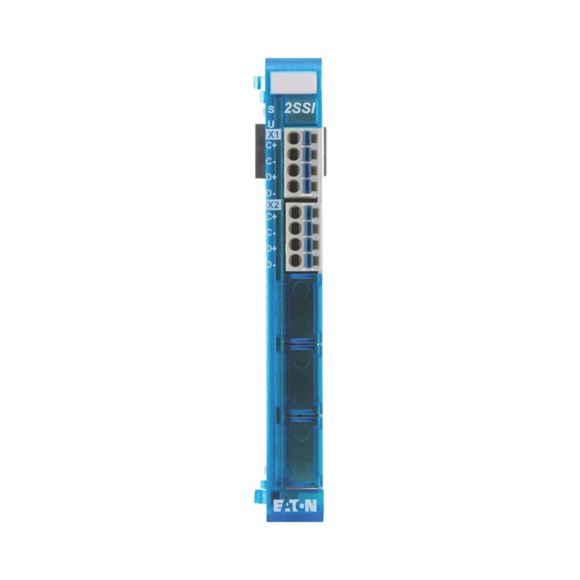

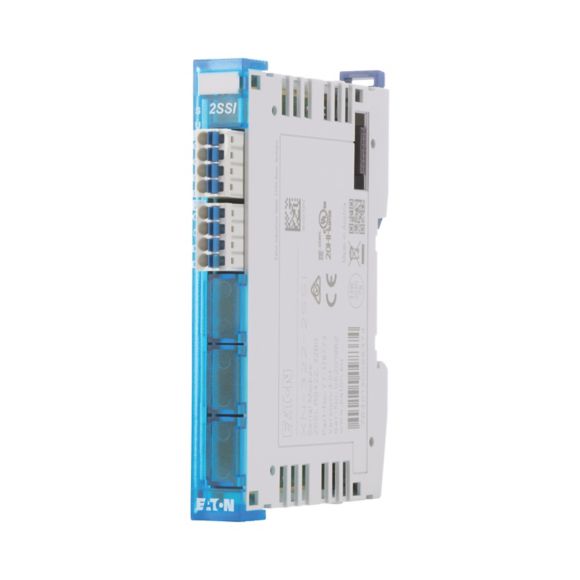

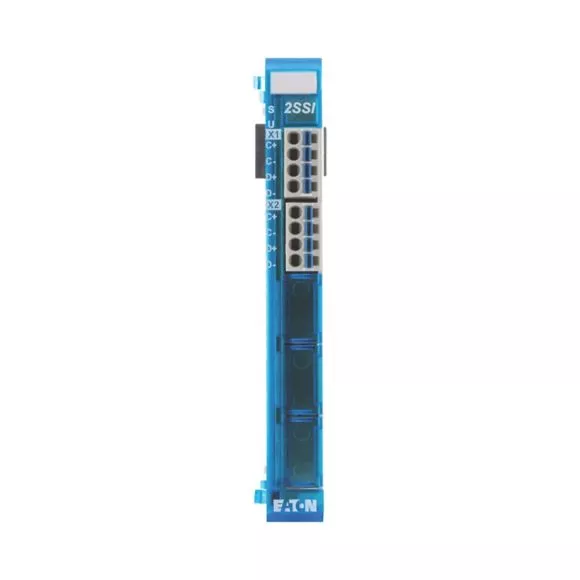

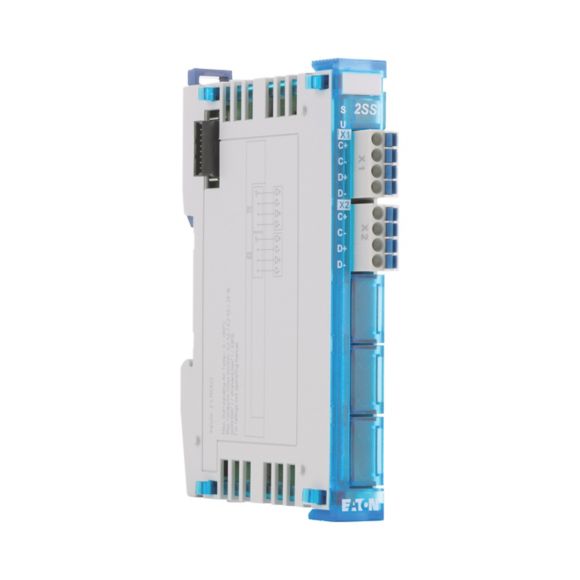

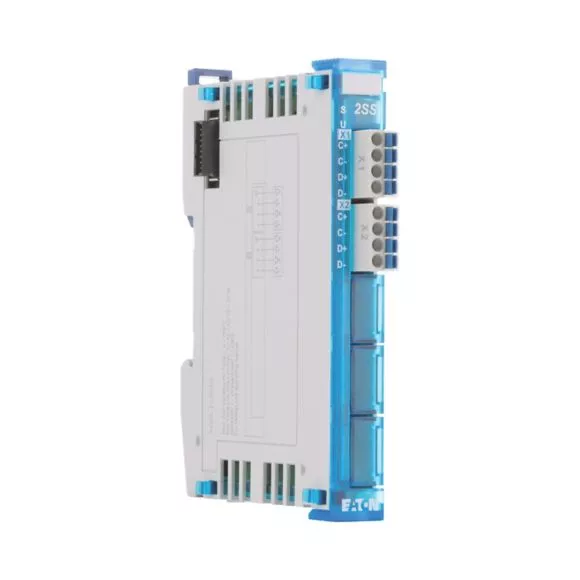

XN-322-2SSI Moduł komunikcji szeregowej SSI, 2 - kanały, RS422, 32Bit
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 178773 |
| GTIN(EAN) | 7640130098374 |
| Price unit | piece |
| Catalog price | 1 790,88 zł (1 456,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Interface module for interpreting data from two absolute encoders via the RS422 interface, specially designed for SSI encoders (e.g., absolute linear encoders). Natural binary and Gray code encoders (Gray code is internally converted to natural binary) are supported. 32 bits / 125 kHz, 250kHz, 500kHz, 1MHz
Additional features:
| Information | Value |
|---|---|
| Net weight: | 46 g |
| ETIM class: | Fieldbus, decentr. periphery - communication module |
| Supply voltage AC 50 Hz: | 0 - 0 V |
| Supply voltage AC 60 Hz: | 0 - 0 V |
| Supply voltage DC: | 18 - 30 V |
| Voltage type (supply voltage): | DC |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for other bus systems: | yes |
| Radio standard Bluetooth: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard GPRS: | no |
| Radio standard eGPRS: | no |
| Radio standard GSM: | no |
| Radio standard LTE: | no |
| Radio standard UMTS: | no |
| IO link master: | no |
| System accessory: | yes |
| Degree of protection (IP): | IP20 |
| With potential separation: | no |
| Fieldbus connection over separate bus coupler possible: | yes |
| Rail mounting possible: | yes |
| Wall mounting/direct mounting: | no |
| Front built-in possible: | no |
| Rack-assembly possible: | no |
| Suitable for safety functions: | no |
| SIL according to IEC 61508: | None |
| Performance level according to EN ISO 13849-1: | None |
| Appendant operation agent (Ex ia): | no |
| Appendant operation agent (Ex ib): | no |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Width: | 80.3 mm |
| Height: | 16.8 mm |
| Depth: | 104.2 mm |
