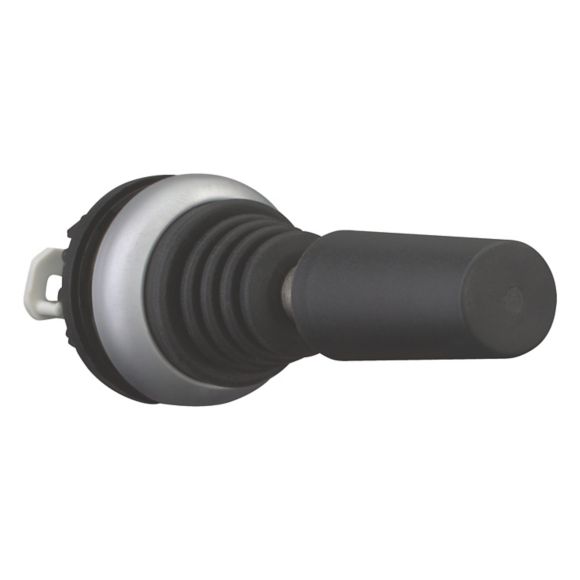

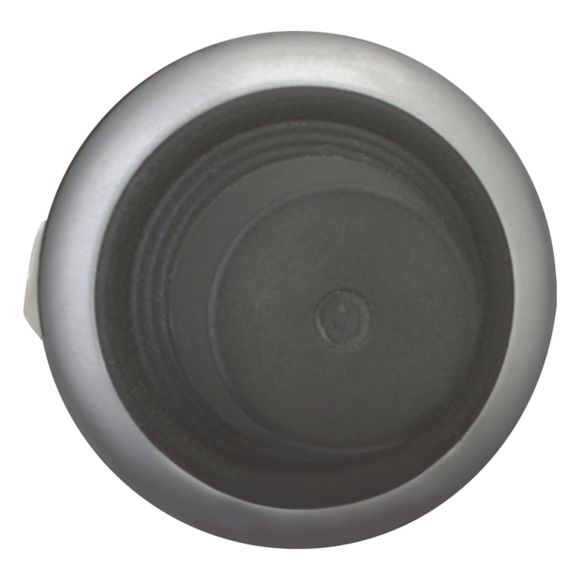

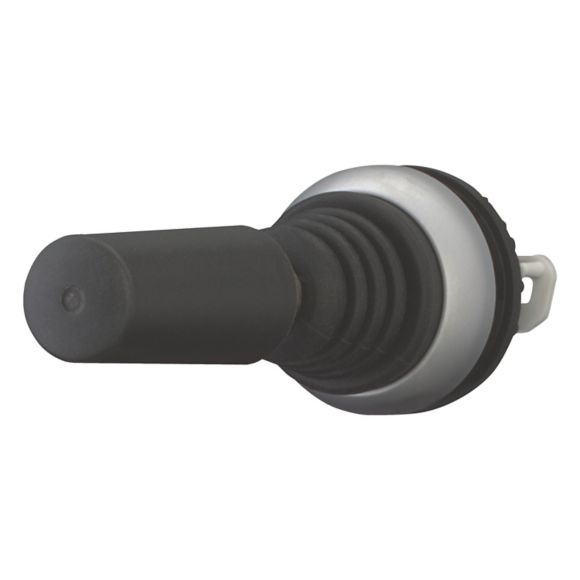

M22-WJS2H Joystick, 2 poz. sam., lewo-prawo., metal
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 178570 |
| GTIN(EAN) | 4015081738991 |
| Price unit | piece |
| Catalog price | 357,19 zł (290,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Den Joystick im RMQ-Titan Sortiment gibt es in tastender und rastender Ausführung. Bei einfacher Bewegungsrichtung gibt es je einen Typen für horizontaler und vertikaler Richtung. Die Taste erfüllt die Schutzart IP66 und ist für den weltweiten Einsatz zugelassen.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 28 g |
| Country of origin | Niemcy |
| ETIM class: | Control switch, Joystick |
| Rated operation current Ie at AC-21, 400 V: | 0 A |
| Centre mounting, hole diameter: | 22.5 mm |
| Joy stick length: | 75 mm |
| Number of actuation directions: | 2 |
| Number of switch positions: | 1 |
| Number of normally open contacts per actuation direction: | 0 |
| Number of normally closed contacts per actuation direction: | 0 |
| Number of make-and-break contacts per direction: | 0 |
| With retraction in 0-position: | yes |
| Locking in 0-position: | no |
| Coder: | no |
| Analogue output signal configurable: | no |
| With front ring: | yes |
| Material front ring: | Plastic |
| Colour front ring: | Titanium |
| Degree of protection (IP): | IP66 |
| Degree of protection (NEMA): | 4X, 13 |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-12-05 20:55:23 |
| Files to download: | |
| External links: |
