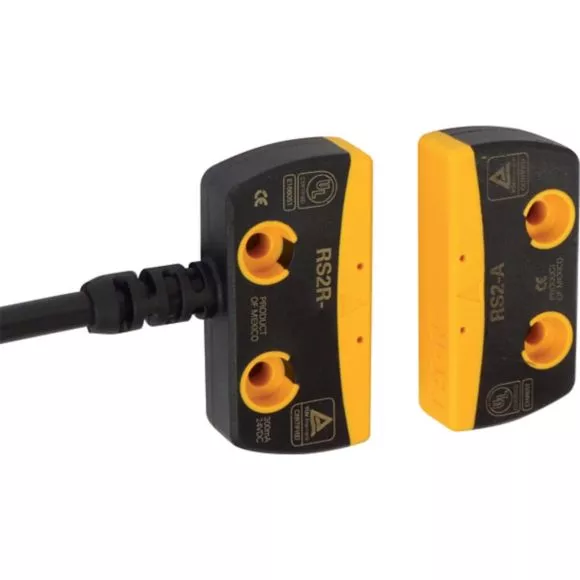

RS2R-11-C3 RS2R, 1NO, 1NC Magn. wył. bezp., 3m
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 177293 |
GTIN(EAN) | 4015081717460 |
Price unit | piece |
Catalog price | 920,66 zł (748,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Non-contacting safety switch, switching distance according to IEC 60947-5-2, SL up to Ple ISO 13849, SL up zo SIL3 according to IEC 62061, 1NO, 1NC, 3m cable
Additional features:
Information | Value |
---|---|
Net weight: | 182 g |
ETIM class: | Position switch with separate actuator |
Suitable for safety functions: | yes |
Width sensor: | 26 mm |
Height of sensor: | 13 mm |
Length of sensor: | 52 mm |
Number of safety auxiliary contacts: | 1 |
Number of contacts as normally closed contact: | 1 |
Number of contacts as normally open contact: | 1 |
Number of contacts as change-over contact: | 0 |
Type of switching contact: | Other |
Rated operation current Ie at AC-15, 24 V: | 0 A |
Rated operation current Ie at AC-15, 125 V: | 0 A |
Rated operation current Ie at AC-15, 230 V: | 0 A |
Rated operation current Ie at DC-13, 24 V: | 0.3 A |
Rated operation current Ie at DC-13, 125 V: | 0 A |
Rated operation current Ie at DC-13, 230 V: | 0 A |
Construction type housing: | Cuboid |
Housing material: | Plastic |
Coating housing: | Plastic-coated |
Type of interface: | None |
Type of interface for safety communication: | None |
Type of electric connection: | With cable preassembled |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Ambient temperature during operating: | -10 - 55 °C |
Degree of protection (IP): | IP67 |
Degree of protection (NEMA): | Other |
