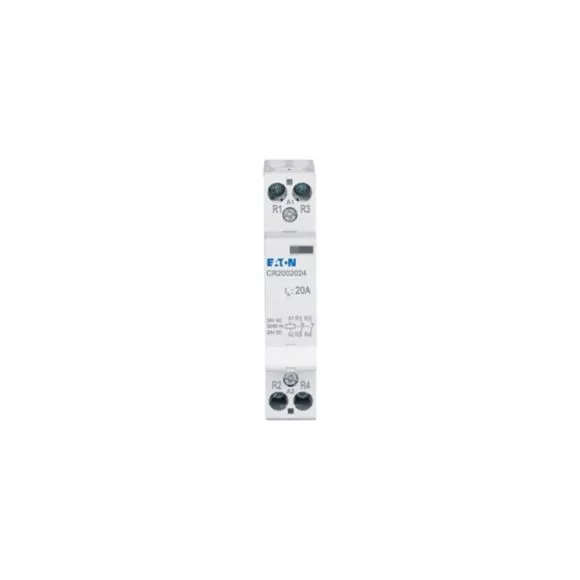

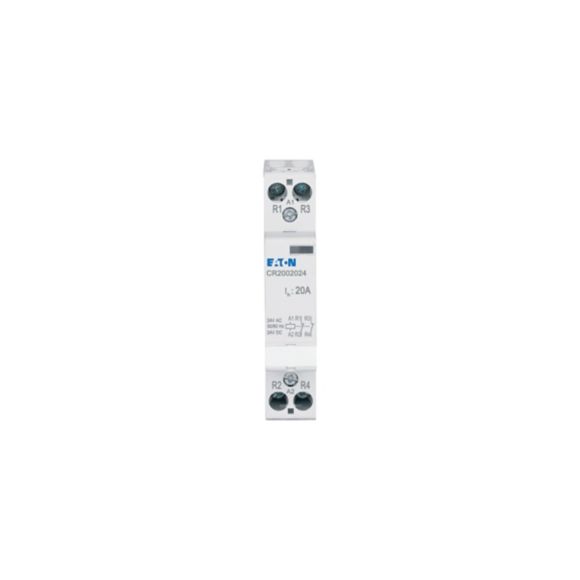

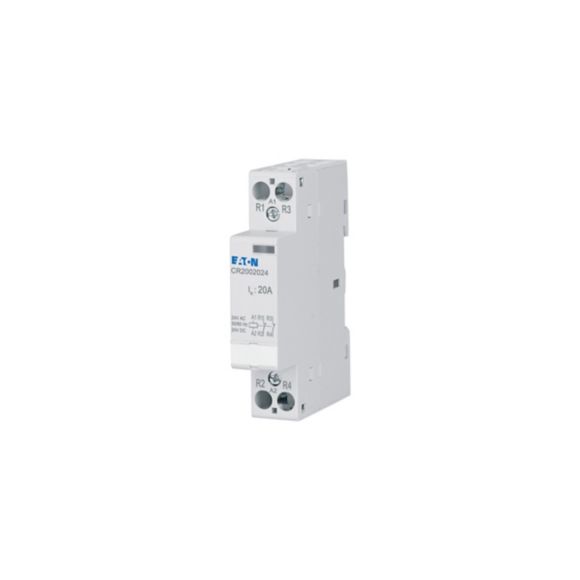

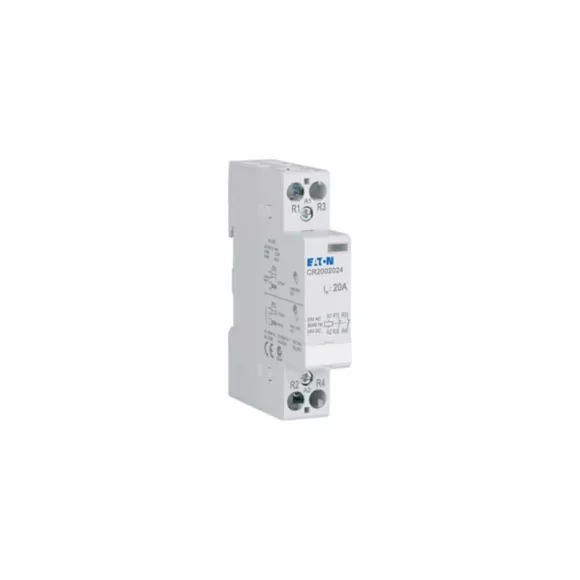

CR2002024 Stycznik 24V AC/DC 2rozw.
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 176469 |
GTIN(EAN) | 8711426209701 |
Price unit | piece |
Catalog price | 301,10 zł (244,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 137 g |
ETIM class: | Installation contactor for distribution board |
Rated operating voltage: | 400 - 400 V |
Rated operation current: | 20 A |
Rated excitation voltage: | 20.4 - 26.4 V |
Voltage type (operating voltage): | AC |
Voltage type (excitation voltage): | AC |
Number of contacts as normally open contact: | 0 |
Number of contacts as normally closed contact: | 2 |
Max. incandescent lamp load: | 1950 W |
Max. load fluorescent lamp: | 910 VA |
Max. load fluorescent lamp (Duo circuit): | 1160 VA |
Max. load fluorescent lamp (parallel compensated): | 232 VA |
Slider for hand switch: | no |
Width in number of modular spacings: | 1 |
Built-in depth: | 60 mm |
Additional equipment possible: | yes |
With day/night function: | no |
Hum-free: | no |
Degree of protection (IP): | IP20 |
