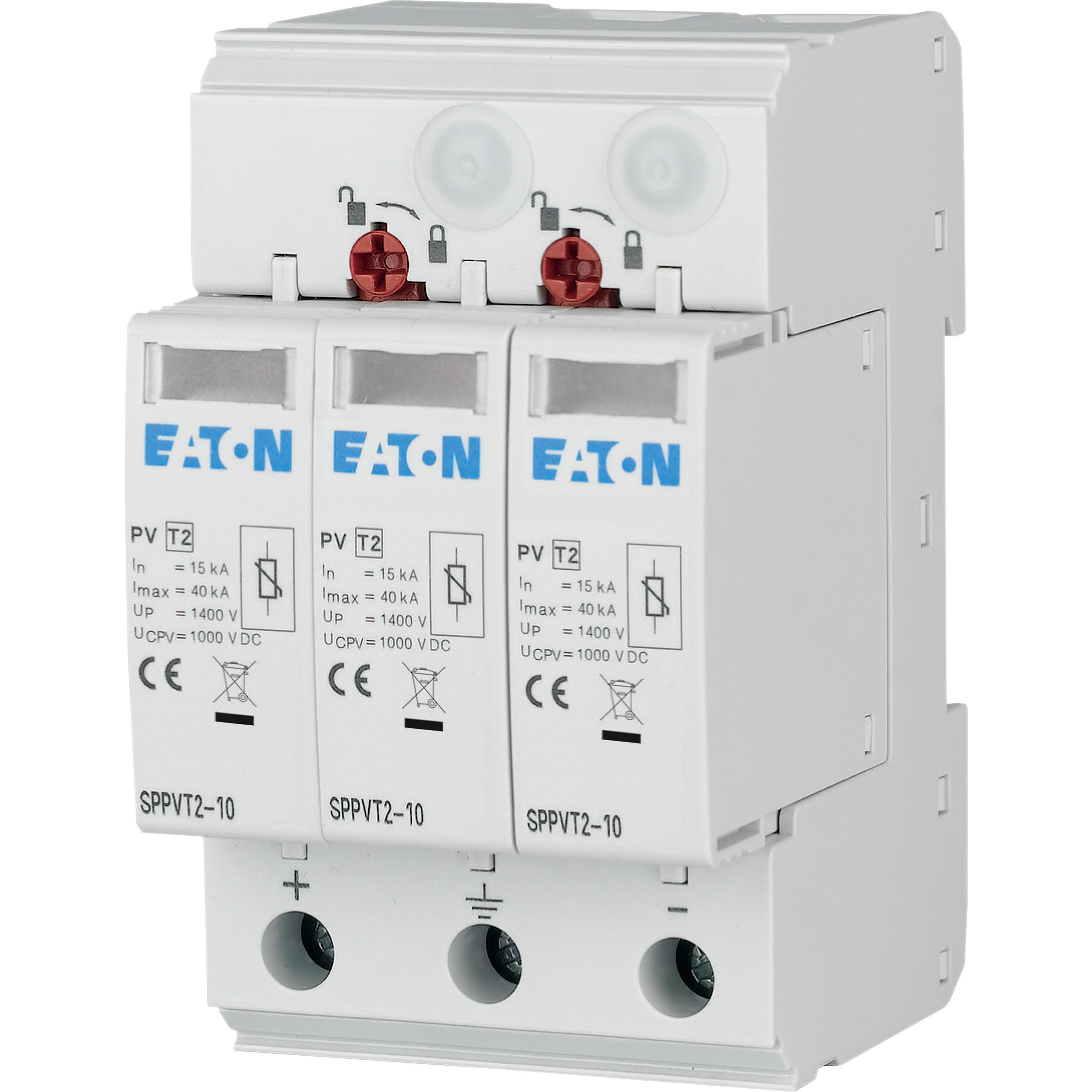

SPPVT2-10-2+PE Ogranicznik przepięć typ 2 1000VDC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 176090 |
| GTIN(EAN) | 4015081712861 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 246,90 zł / szt. (200,73 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 327 g |
| ETIM class: | Surge protection device for power supply systems |
| System configuration DC: | no |
| System configuration IT: | yes |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | no |
| Number of conductors (without earthing): | 2 |
| Nominal discharge surge current (8/20): | 15 kA |
| Max. discharge surge current (8/20): | 40 kA |
| Nominal voltage AC: | 0 V |
| Nominal voltage DC: | 975 V |
| Max. continuous voltage AC: | 0 V |
| Max. continuous voltage DC: | 1 170 V |
| Max. PV-voltage: | 1 170 V |
| Voltage protection level: | 3,7 kV |
| Voltage protection level L-N: | 0 kV |
| Voltage protection level N-PE: | 0 kV |
| Max. overcurrent protection device, parallel connection (fuse): | 0 A |
| Max. overcurrent protection device, series connection (fuse): | 0 A |
| Short-circuit breaking capacity (Isccr): | 0 kA |
| Integrated short-circuit protection: | no |
| Integrated short-circuit protection selective to fuse gG: | 0 A |
| Integrated backup fuse: | no |
| Leakage-current free: | no |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 3 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 0 mm² |
| Max. conductor cross section flexible (fine-strand): | 0 mm² |
| With remote signalling contact: | no |
| Signalling at the device: | Optical |
| Category type 2: | yes |
| Degree of protection (IP): | IP20 |
