EU1S-SWD-PF1-2 Moduł IP67 - zasilacz SmartWire-DT
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 174724 |
| GTIN(EAN) | 4015081712106 |
| Price unit | piece |
| Catalog price | 461,37 zł (375,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

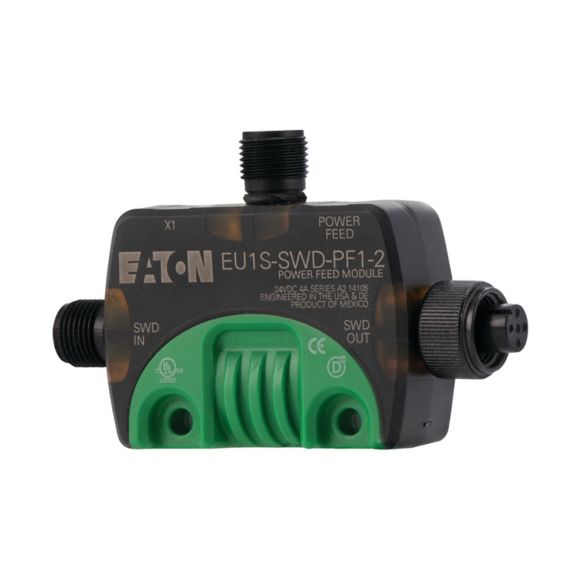

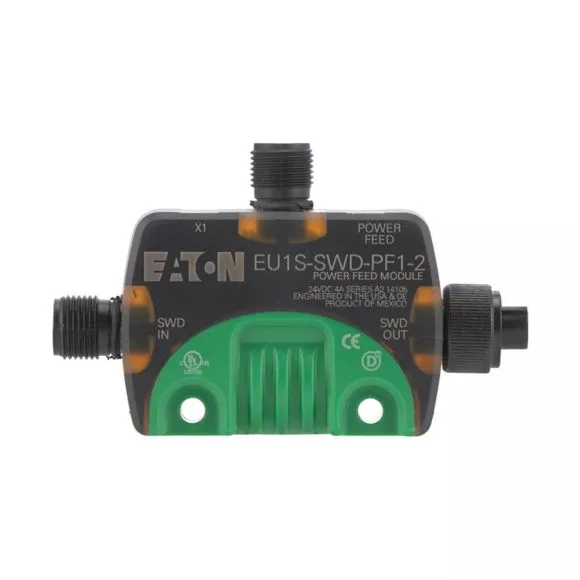

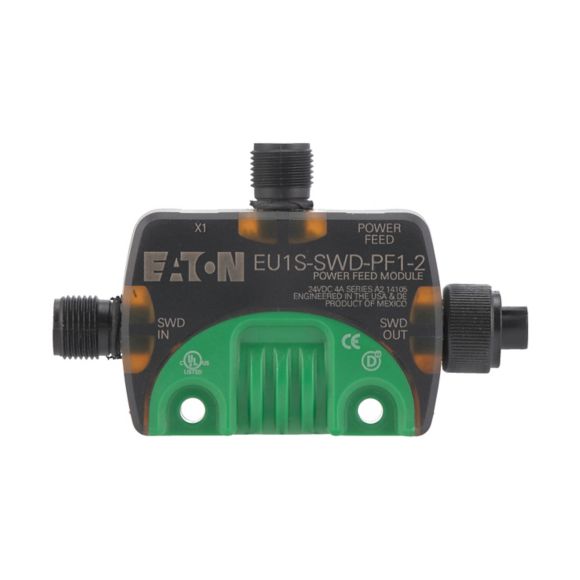

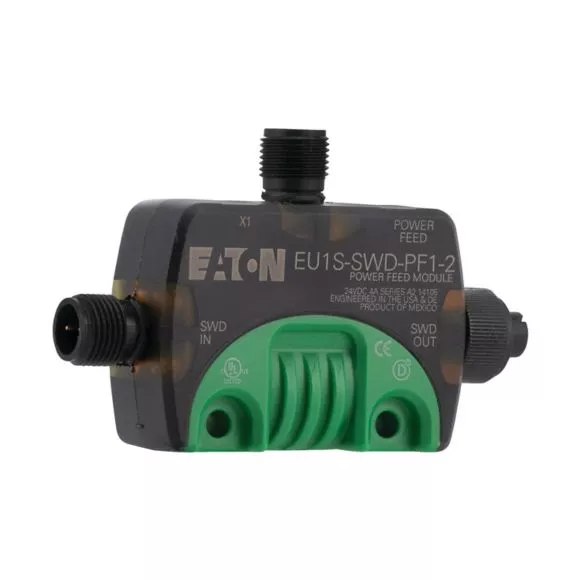

SmartWire-DT power feeder module with IP67 degree of protection for feeding the 24 VDC supply for the SmartWire-DT network, for powering SmartWire-DT modules as well as connected sensors/actuators, max. 4 A
Additional features:
| Information | Value |
|---|---|
| Net weight: | 60 g |
| Country of origin | Meksyk |
| ETIM class: | Fieldbus, decentr. periphery - power supply/segment module |
| Supply voltage AC 50 Hz: | 0 - 0 V |
| Supply voltage AC 60 Hz: | 0 - 0 V |
| Supply voltage DC: | 20.4 - 28.8 V |
| Voltage type (supply voltage): | DC |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces wireless: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces other: | 1 |
| With optical interface: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for other bus systems: | yes |
| Radio standard Bluetooth: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| System accessory: | yes |
| Degree of protection (IP): | IP67 |
| Type of electric connection: | Plug-in connection |
| With potential separation: | yes |
| With power supply module: | yes |
| Suitable as segment module: | yes |
| Remote module: | no |
| Fieldbus connection over separate bus coupler possible: | yes |
| Bus diagnosis possible: | no |
| Rail mounting possible: | yes |
| Wall mounting/direct mounting: | yes |
| Front built-in possible: | no |
| Rack-assembly possible: | no |
| Suitable for safety functions: | no |
| SIL according to IEC 61508: | None |
| Performance level according to EN ISO 13849-1: | None |
| Appendant operation agent (Ex ia): | no |
| Appendant operation agent (Ex ib): | no |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Width: | 56.9 mm |
| Height: | 20.1 mm |
| Depth: | 85.6 mm |
| Supporting protocol for EtherCAT: | no |
| Certified for UL hazardous location class I: | no |
| Certified for UL hazardous location class II: | no |
| Certified for UL hazardous location class III: | no |
| Certified for UL hazardous location division 1: | no |
| Certified for UL hazardous location division 2: | no |
| Certified for UL hazardous location group A (acetylene): | no |
| Certified for UL hazardous location group B (hydrogen): | no |
| Certified for UL hazardous location group C (ethylene): | no |
| Certified for UL hazardous location group D (propane): | no |
| Certified for UL hazardous location group E (metal dusts): | no |
| Certified for UL hazardous location group F (carbonaceous dusts): | no |
| Certified for UL hazardous location group G (non-conductive dusts): | no |
