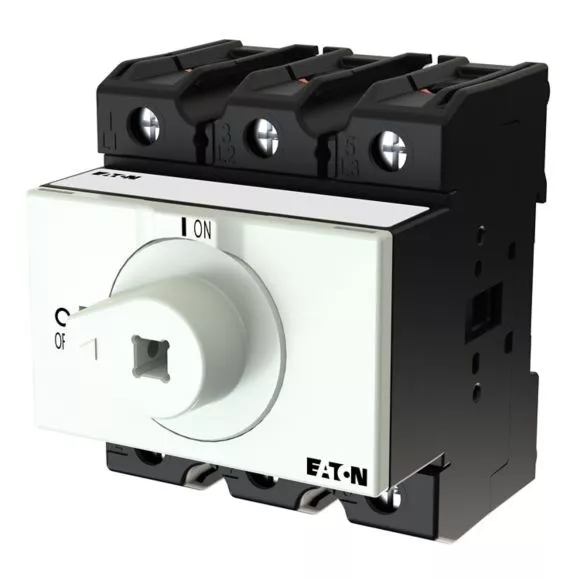

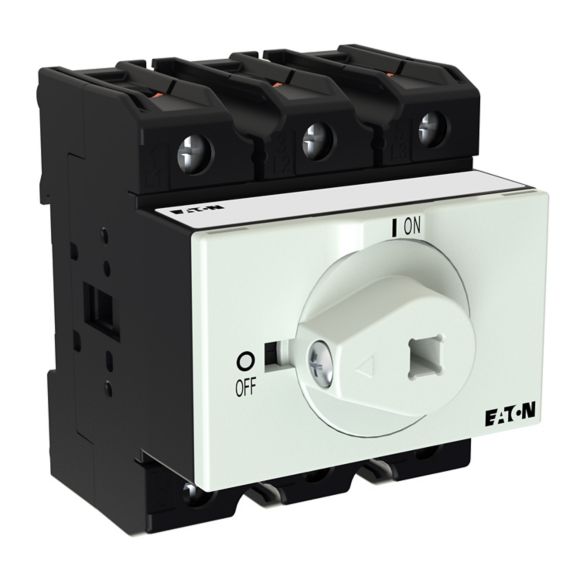

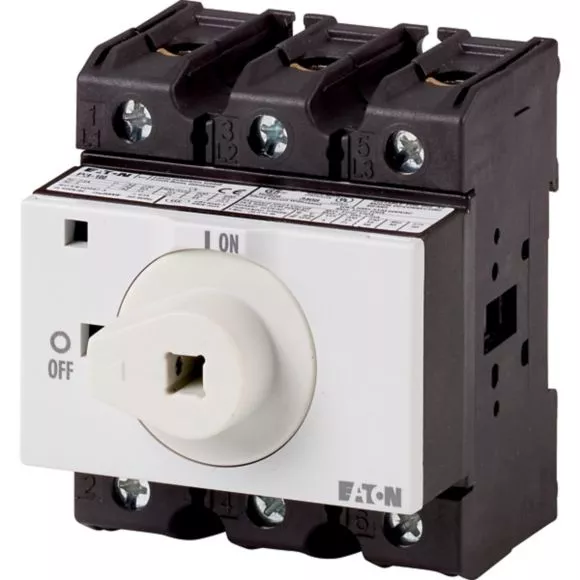

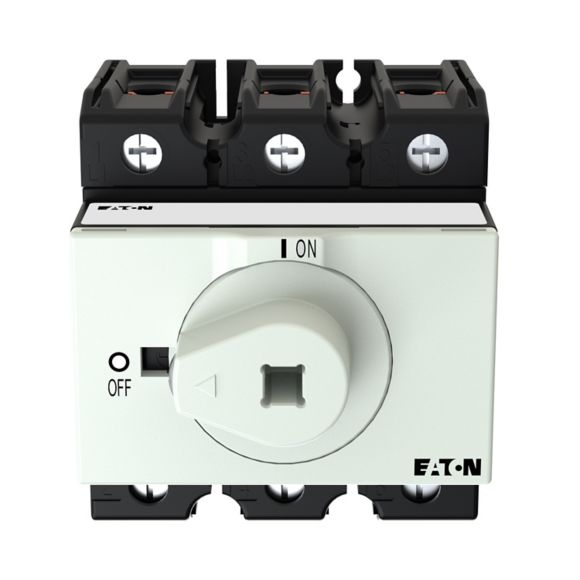

P3-100/XM Rozłącznik główny, 3 bieg., 100 A , bez wałka i rączki, montaż rozłączny
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 172837 |
| GTIN(EAN) | 4015081694204 |
| Price unit | piece |
| Catalog price | 1 108,48 zł (901,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Main switch/switch-disconnector on-off according to IEC/EN 60947-3, 690 V/100 A, degree of protection Front IP65, handle red with yellow locking collar lockable with 3 padlocks. Switch-disconnectors P3 have a very compact and robust design. the manual drive act directly to the connection of the contacts. The contacts are forced open when switching off. . General design: insulating material-surface mounting enclosure, flush mounted, rear mounting, IVS service distribution board mounting
Additional features:
| Information | Value |
|---|---|
| Net weight: | 290 g |
| ETIM class: | Switch disconnector (low voltage) |
| Version as main switch: | yes |
| Version as maintenance-/service switch: | no |
| Version as safety switch: | no |
| Version as emergency stop installation: | no |
| Version as reversing switch: | no |
| Number of switches: | 1 |
| Max. rated operation voltage Ue AC: | 690 V |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current Iu: | 100 A |
| Rated permanent current at AC-23, 400 V: | 100 A |
| Rated permanent current at AC-21, 400 V: | 100 A |
| Rated operation power at AC-3, 400 V: | 37 kW |
| Rated short-time withstand current lcw: | 2 kA |
| Rated operation power at AC-23, 400 V: | 55 kW |
| Switching power at 400 V: | 55 kW |
| Conditioned rated short-circuit current Iq: | 80 kA |
| Number of poles: | 3 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Voltage release optional: | no |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for floor mounting: | yes |
| Suitable for front mounting 4-hole: | no |
| Suitable for front mounting centre: | no |
| Suitable for distribution board installation: | no |
| Suitable for intermediate mounting: | yes |
| Colour control element: | Other |
| Type of control element: | Other |
| Interlockable: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Degree of protection (IP), front side: | IP65 |
| Degree of protection (NEMA): | 1 |
