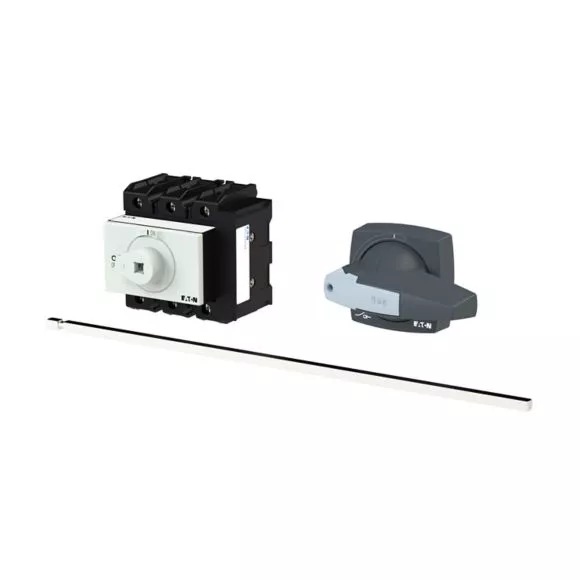

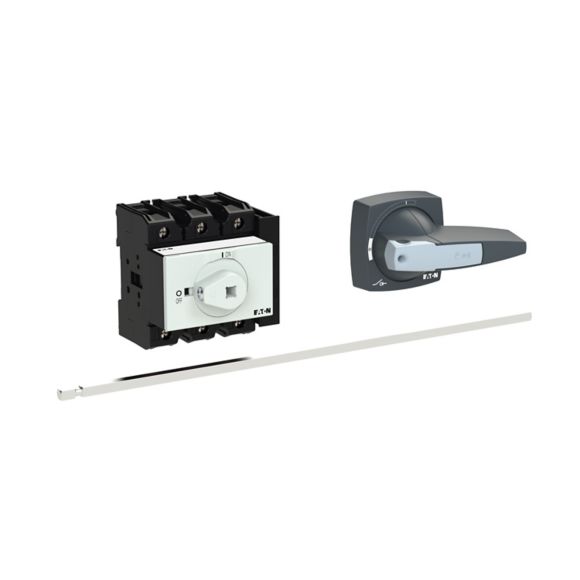

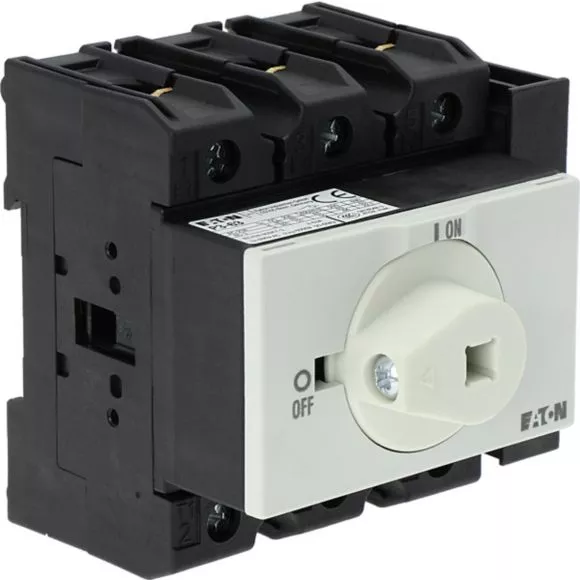

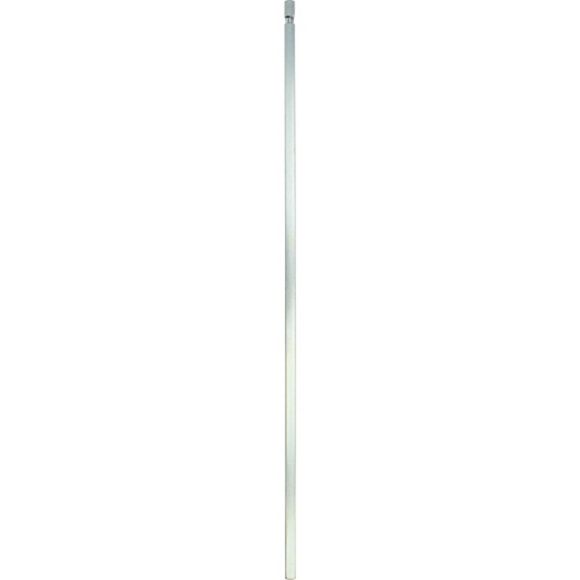

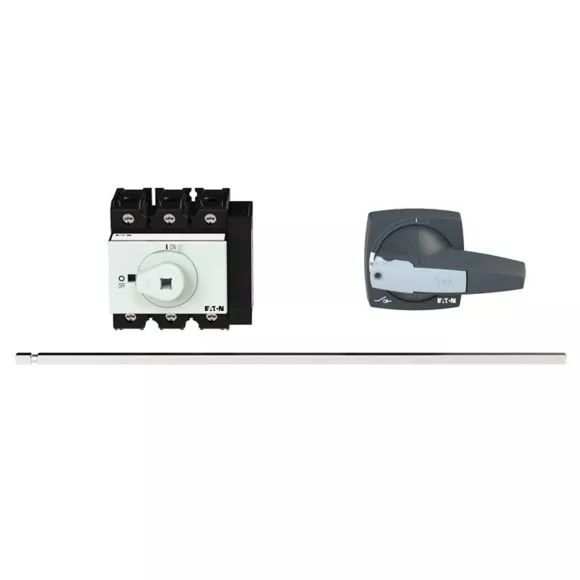

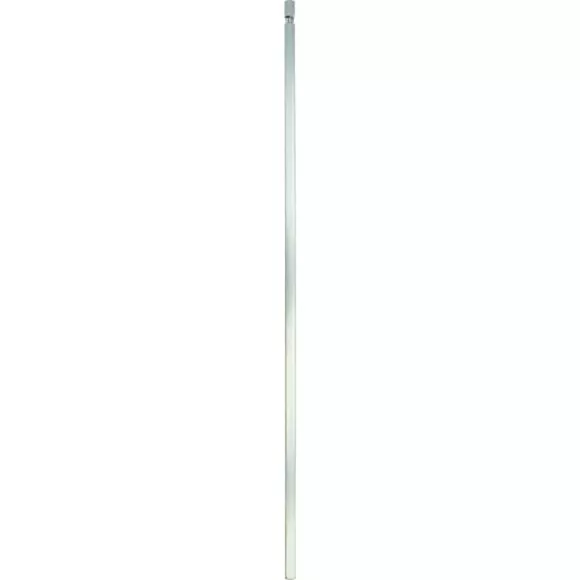

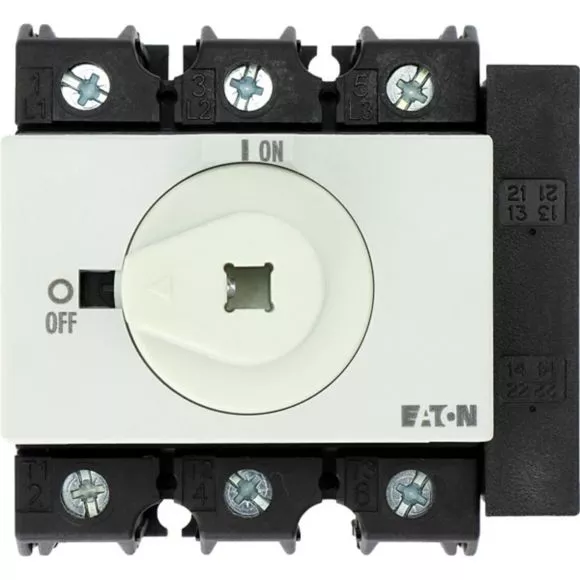

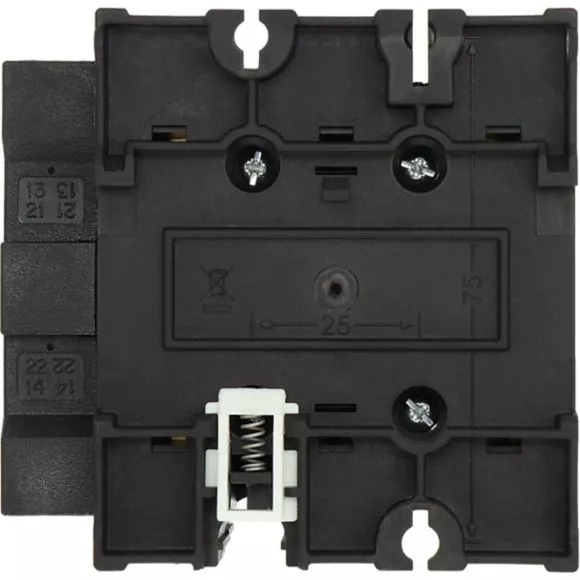

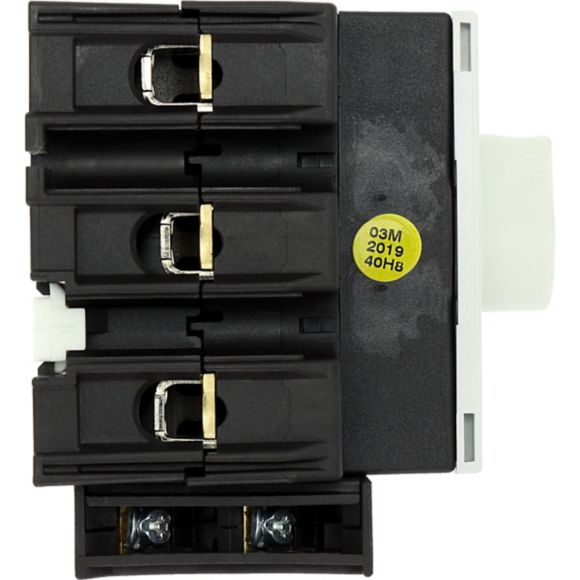

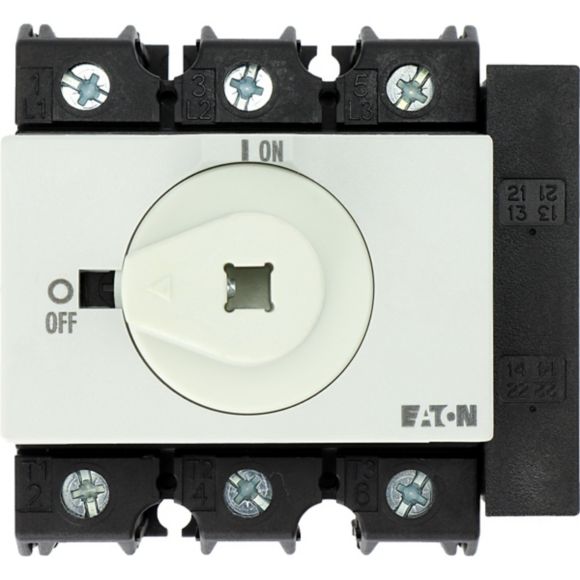

P3-63/M4/HI11/K2-PG Rozłącznik główny, 3 bieg. + 1 NO + 1 NC, 63 A, funkcja awaryjnego zatrzymania , blok. na kłódkę w pozycji Wył., z 400 mm metalową osią, montaż rozłączny, pokrętło K2 szare z blokadą na kłódkę
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 172815 |
| GTIN(EAN) | 4015081693993 |
| Price unit | piece |
| Catalog price | 1 493,22 zł (1 214,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 585 g |
| Country of origin | Wielka Brytania |
| ETIM class: | Switch disconnector (low voltage) |
| Version as main switch: | yes |
| Version as maintenance-/service switch: | yes |
| Version as safety switch: | no |
| Version as emergency stop installation: | no |
| Version as reversing switch: | no |
| Number of switches: | 1 |
| Max. rated operation voltage Ue AC: | 690 V |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current Iu: | 63 A |
| Rated permanent current at AC-23, 400 V: | 63 A |
| Rated permanent current at AC-21, 400 V: | 63 A |
| Rated operation power at AC-3, 400 V: | 30 kW |
| Rated short-time withstand current lcw: | 1.26 kA |
| Rated operation power at AC-23, 400 V: | 30 kW |
| Switching power at 400 V: | 30 kW |
| Conditioned rated short-circuit current Iq: | 100 kA |
| Number of poles: | 3 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Voltage release optional: | no |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for floor mounting: | yes |
| Suitable for front mounting 4-hole: | no |
| Suitable for front mounting centre: | no |
| Suitable for distribution board installation: | no |
| Suitable for intermediate mounting: | yes |
| Colour control element: | Grey |
| Type of control element: | Short thumb-grip |
| Interlockable: | yes |
| Type of electrical connection of main circuit: | Screw connection |
| Degree of protection (IP), front side: | IP65 |
| Degree of protection (NEMA): | 12 |
| With pre-assembled cabling: | no |
| Width: | 100 mm |
| Height: | 84 mm |
| Depth: | 340 mm |
