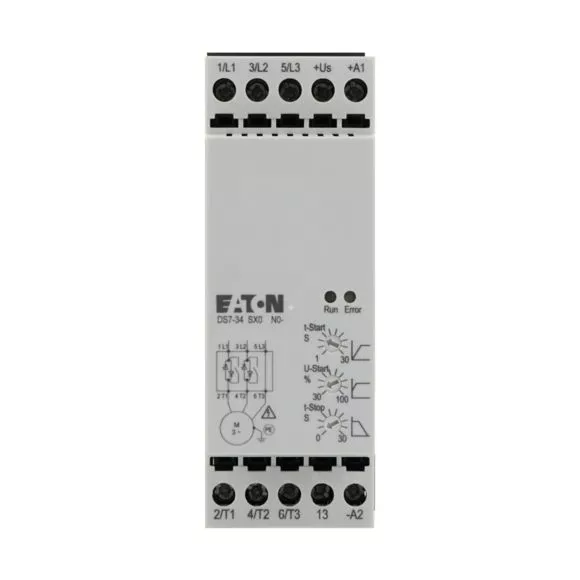

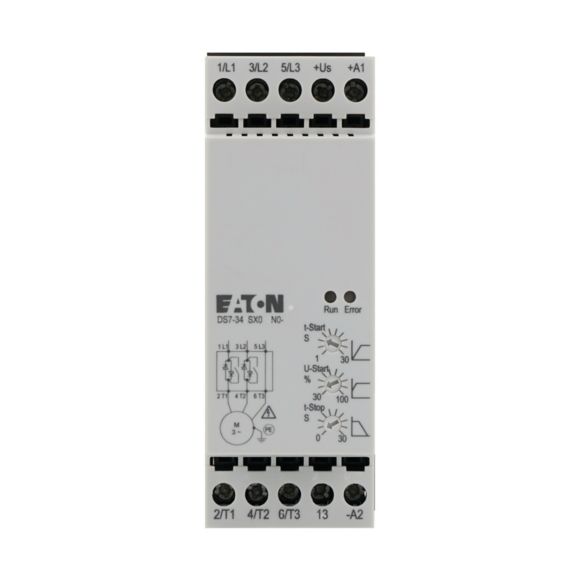

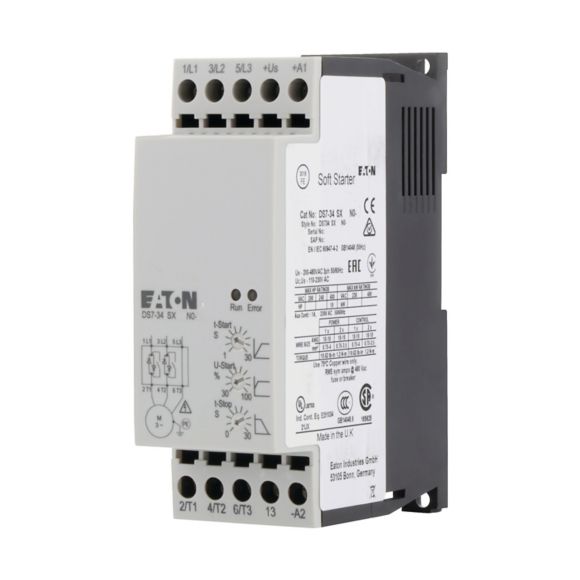

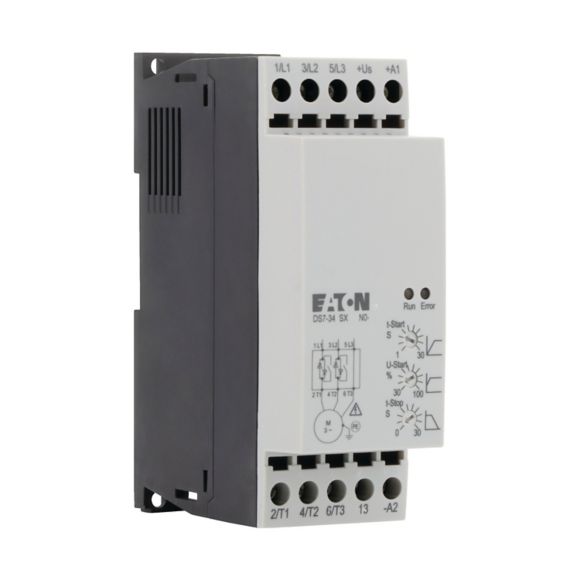

DS7-340SX004N0-L Softstarter DS7, 4 A, Uc=24 V AC/DC, od -40oC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 171740 |
| GTIN(EAN) | 4015081680658 |
| Price unit | piece |
| Catalog price | 1 383,75 zł (1 125,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
DS7 soft starters, 4 A, low-temperature
Additional features:
| Information | Value |
|---|---|
| Net weight: | 410 g |
| Country of origin | Wielka Brytania |
| ETIM class: | Soft starter |
| Rated operation current Ie at 40 °C Tu: | 4 A |
| Rated operating voltage Ue: | 230 - 480 V |
| Rated power three-phase motor, inline, at 230 V: | 0.75 kW |
| Rated power three-phase motor, inline, at 400 V: | 1.5 kW |
| Rated power three-phase motor, inside delta, at 230 V: | 0 kW |
| Rated power three-phase motor, inside delta, at 400 V: | 0 kW |
| Function: | Single direction |
| Internal bypass: | yes |
| With display: | no |
| Torque control: | no |
| Rated surrounding temperature without derating: | 40 °C |
| Rated control supply voltage AC 50 Hz: | 24 - 24 V |
| Rated control supply voltage AC 60 Hz: | 24 - 24 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Voltage type for actuating: | AC/DC |
| Integrated motor overload protection: | no |
| Release class: | Other |
| Degree of protection (IP): | IP20 |
| Degree of protection (NEMA): | 1 |
