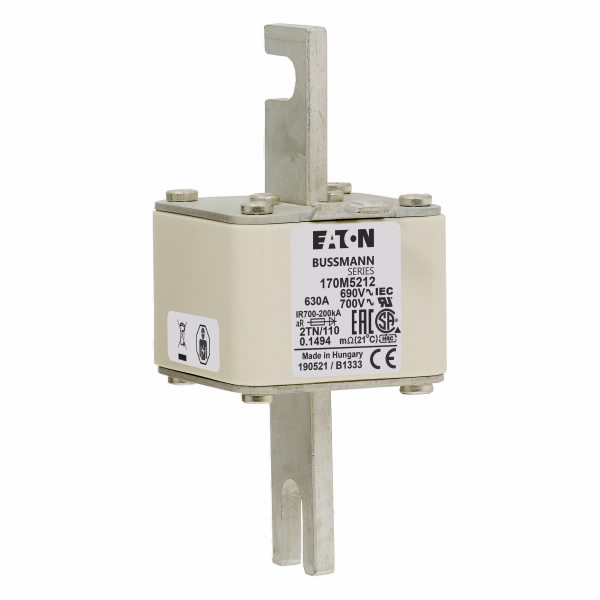

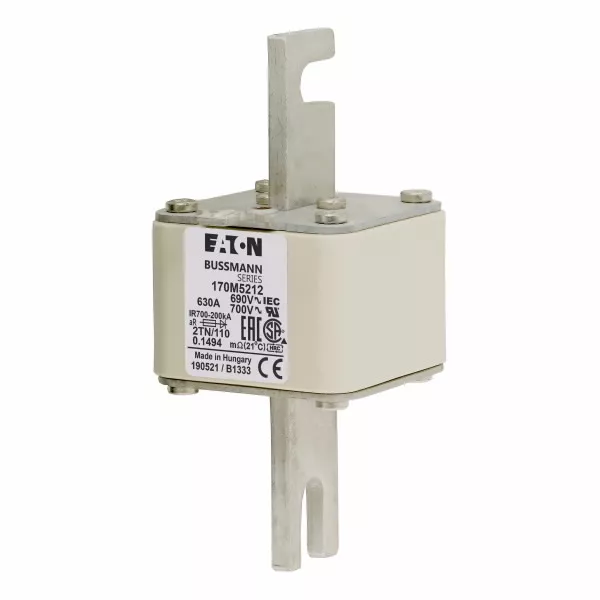

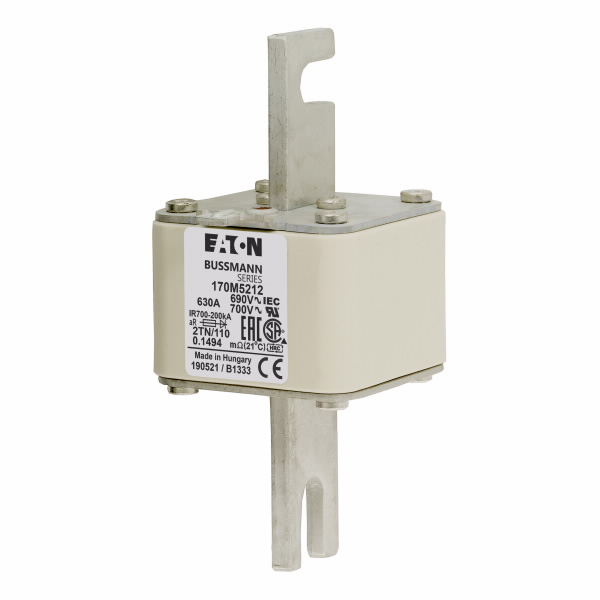

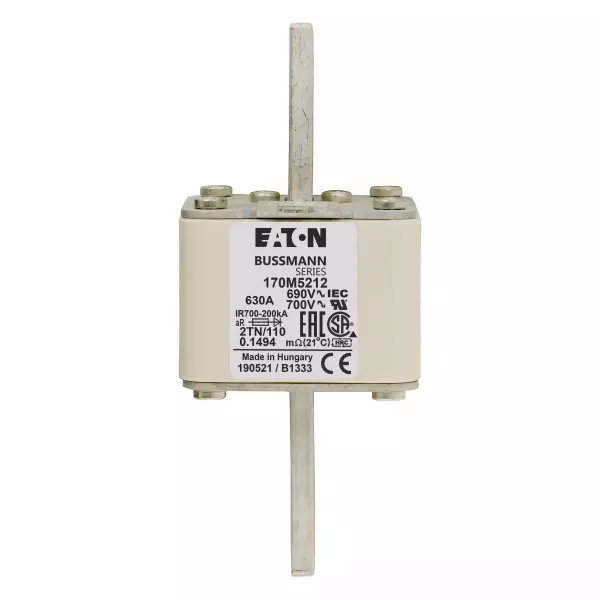

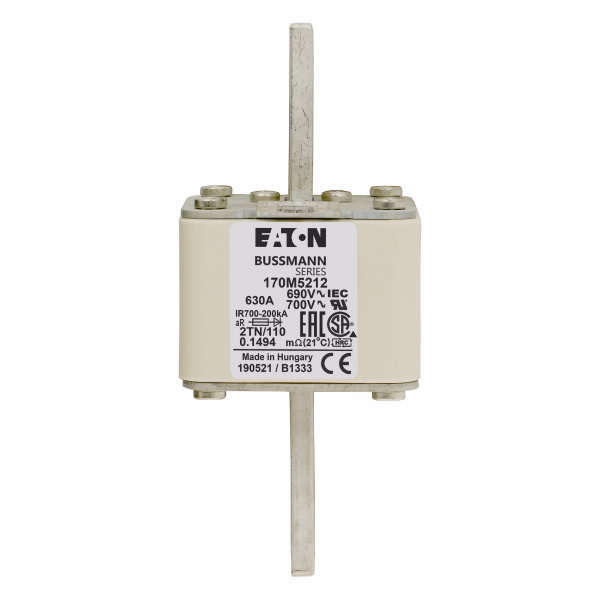

170M5212 Wkładka szybka, 630 A, AC 690 V, DIN 2, 61 x 75 x 138 mm, aR, DIN, IEC, pojedynczy wskaźnik
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 170M5212 |
GTIN(EAN) | 5027590456227 |
Price unit | piece |
Catalog price | 1 758,90 zł (1 430,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 623 g |
ETIM class: | HRC fuse |
Fuse construction type according to IEC 60269: | 2 |
Type of current: | AC |
Rated voltage AC: | 690 V |
Rated current: | 630 A |
Utilization category: | aR (accompanied semiconductor protection) |
Breaking capacity: | 200 kA |
Colour code: | None |
Type of fuse status indicator: | Top fuse status indicator |
Power loss at rated current: | 90 W |
Mounting holes: | M10 |
Centre-to-centre distance of connections: | 108 mm |
