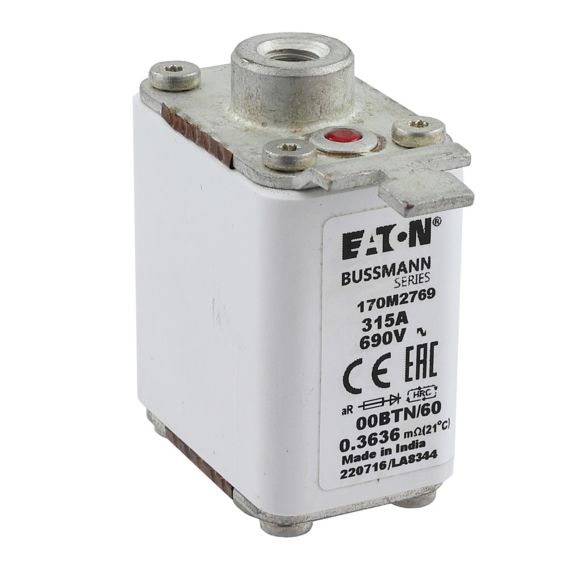

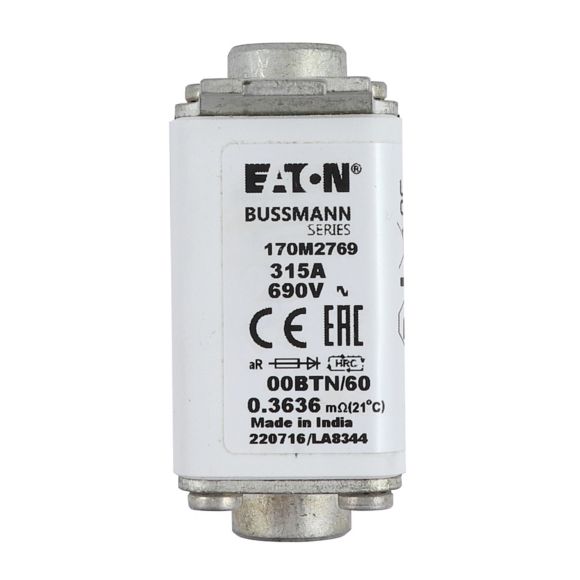

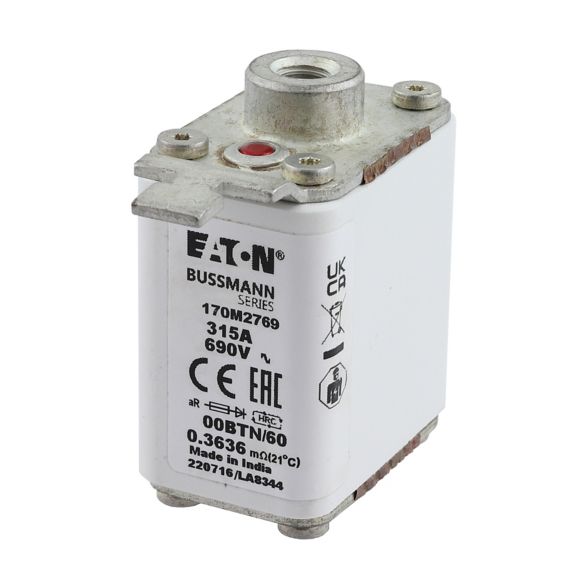

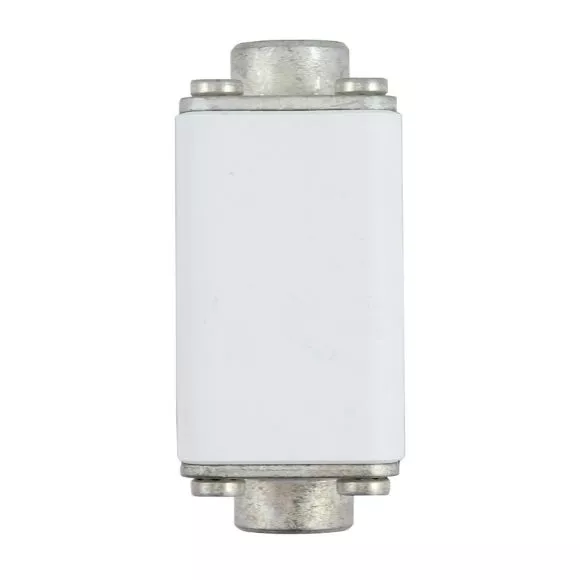

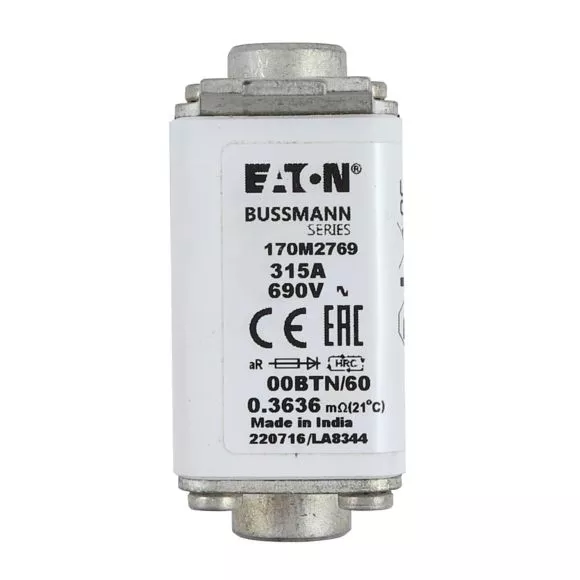

170M2769 Wkładka szybka, 315 A, AC 690 V, rozmiar 00, 30 x 62 x 64 mm, aR, IEC, pojedynczy wskaźnik
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 170M2769 |
GTIN(EAN) | 5027590443494 |
Price unit | piece |
Catalog price | 1 213,15 zł (986,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 228,6 g |
ETIM class: | HRC fuse |
Fuse construction type according to IEC 60269: | 0 |
Type of current: | AC |
Rated voltage AC: | 690 V |
Rated current: | 315 A |
Utilization category: | aR (accompanied semiconductor protection) |
Breaking capacity: | 200 kA |
Colour code: | None |
Type of fuse status indicator: | Top fuse status indicator |
Power loss at rated current: | 55 W |
Mounting holes: | M8 |
Centre-to-centre distance of connections: | 64 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
