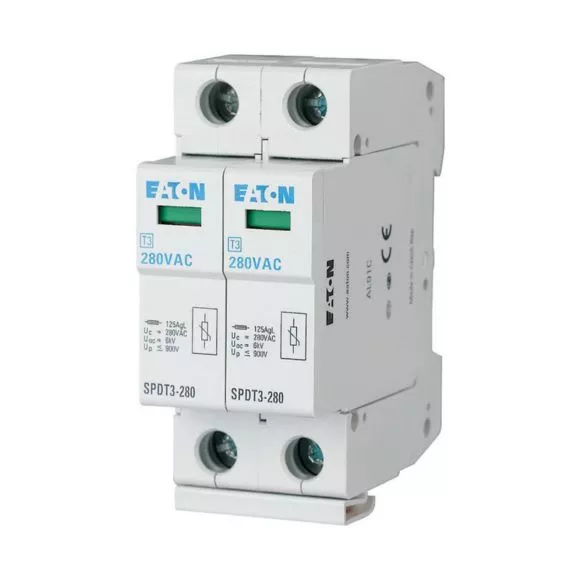

SPDT3-280/2 Oganicznik przepięć 2-bieg klasy III
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 170485 |
GTIN(EAN) | 4015081669837 |
Price unit | piece |
Catalog price | 270,60 zł (220,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 209 g |
ETIM class: | Surge protection device for power supply systems |
System configuration DC: | no |
System configuration IT: | no |
System configuration TN: | no |
System configuration TN-C: | no |
System configuration TN-C-S: | no |
System configuration TN-S: | no |
System configuration TT: | no |
System configuration other: | yes |
Number of conductors (without earthing): | 2 |
Nominal discharge surge current (8/20): | 5 kA |
Max. discharge surge current (8/20): | 10 kA |
Nominal voltage AC: | 280 V |
Nominal voltage DC: | 0 V |
Max. continuous voltage AC: | 280 V |
Max. continuous voltage DC: | 0 V |
Max. PV-voltage: | 0 V |
Voltage protection level: | 1.4 kV |
Voltage protection level L-N: | 0 kV |
Voltage protection level N-PE: | 0 kV |
Max. overcurrent protection device, parallel connection (fuse): | 0 A |
Max. overcurrent protection device, series connection (fuse): | 125 A |
Short-circuit breaking capacity (Isccr): | 0 kA |
Integrated short-circuit protection: | no |
Integrated short-circuit protection selective to fuse gG: | 0 A |
Integrated backup fuse: | no |
Leakage-current free: | no |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 2 modular spacing |
Max. conductor cross section solid (solid, stranded): | 25 mm² |
Max. conductor cross section flexible (fine-strand): | 0 mm² |
With remote signalling contact: | no |
Signalling at the device: | Optical |
Category type 2: | no |
Degree of protection (IP): | IP20 |
