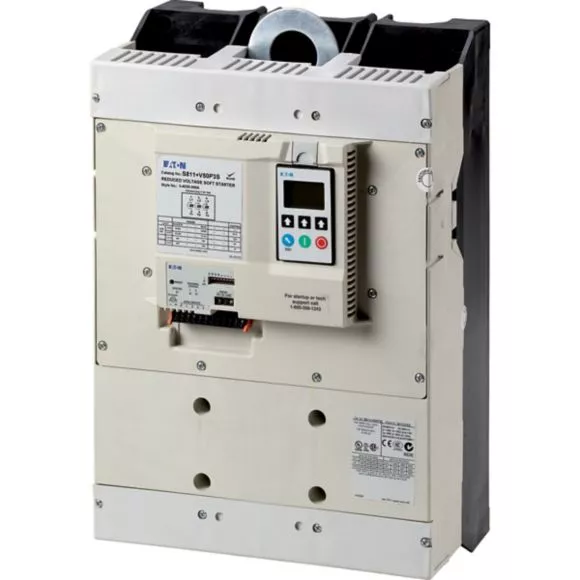

S811+V72V3S Softstarter 720 A 400 V: 400 kW 690 V: 630 kW Uc=24 VDC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 169007 |
| GTIN(EAN) | 4015081655014 |
| Price unit | piece |
| Catalog price | 48 941,70 zł (39 790,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Soft starters of the line S811+ are for standard asynchronous motors. The Power-Range depends on the kind of connection, starting at 18.5 kW to 560 kW at 400 V (standard connection) and 30 kW to 900 kW at 400 V connected zin-deltaz. THere, each phase of the soft starter is in line with each winding of the motor (requires 6 wires to the motor, motor only in delta).The line S811+ has a display to change the parameters for each application. With this display all parameters of the soft starter can be displayed or changed. The keypad is also required to reprogramm the digital and analog I/O of the soft starter.Alternative to the keypad changes can be done via communication link. There the same possibillities are offered as with the keypad on board. Standard is a Modbus interface, other network interfaces will follow.Typical applications for a soft starterPumps - reduce water-hammer with a special pump control algorythm. Mechanical stress of the system goes down and reliablillity risesfans - caused by the soft start belts will not slip, aging of the system reduces. Therefore costs of ownership goes down, live-time of the application risesconveyor belts - instead of a mechincal shock the belts starts softly. Goods on the belt will not fall down, the belt itself will run longer, live-time goes upcompressors - caused by the soft start belts will not slip, aging of the system reduces. Therefore costs of ownership goes down, live-time of the application risessaws, mixers, mills and crushers - caused by the current limit function current peaks can be avoided. This reduces energy costs for peak load
Additional features:
| Information | Value |
|---|---|
| Net weight: | 41,4 kg |
| ETIM class: | Soft starter |
| Rated operation current Ie at 40 °C Tu: | 720 A |
| Rated operating voltage Ue: | 200 - 690 V |
| Rated power three-phase motor, inline, at 230 V: | 200 kW |
| Rated power three-phase motor, inline, at 400 V: | 400 kW |
| Rated power three-phase motor, inside delta, at 230 V: | 200 kW |
| Rated power three-phase motor, inside delta, at 400 V: | 630 kW |
| Function: | Single direction |
| Internal bypass: | yes |
| With display: | yes |
| Torque control: | no |
| Rated surrounding temperature without derating: | 50 °C |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Voltage type for actuating: | DC |
| Integrated motor overload protection: | yes |
| Release class: | Adjustable |
| Degree of protection (IP): | IP20 |
| Degree of protection (NEMA): | Other |
