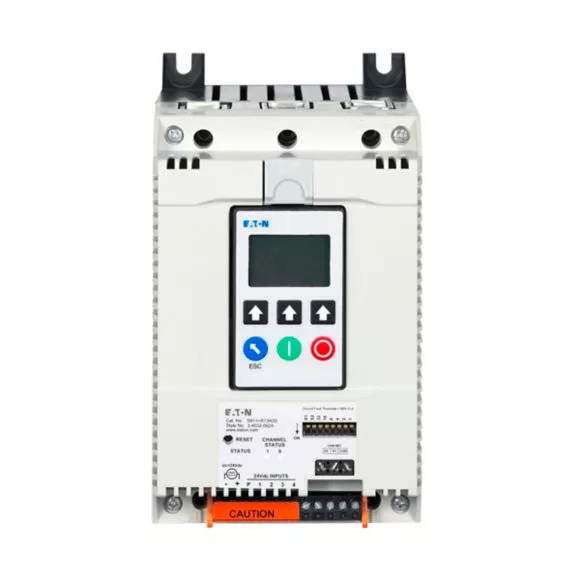

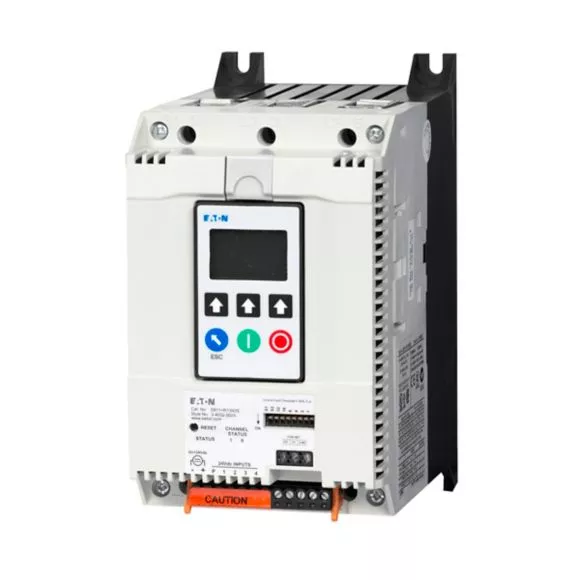

S811+R13P3S Softstarter 135 A 75 kW Uc=24 VDC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 168983 |
| GTIN(EAN) | 4015081654796 |
| Price unit | piece |
| Catalog price | 12 664,08 zł (10 296,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Soft starter, Description: With internal bypass contacts, Function: Soft starter for three-phase loads, with control unit and pump algorithm, Mains supply voltage (50/60 Hz): ULN= 200 - 600 V AC, Supply voltage: Us= 24 V DC, Control voltage: UC= 24 V DC, Assigned motor rating (Standard connection, In-Line) at 400 V, 50 Hz: P= 75 kW, at 460 V, 60 Hz: P= 100 HP, Rated operational current AC-53: Ie= 135 A, Rated operational current AC-53, In-Delta: Ie= 234 A, Startup class: CLASS 10 (star-delta replacement), CLASS 20 (heavy starting duty 3 x Ie for 45 s), CLASS 30 (6 x Ie for 30 s), Rated operational voltage: Ue= 200 V, 230 V, 400 V, 480 V , 600 V, Connection to SmartWire-DT: no, Frame size: R, Standards: IEC/EN 60947-4-2, UL 508, CSA22.2-14-1995, GB14048
Additional features:
| Information | Value |
|---|---|
| Net weight: | 4,8 kg |
| ETIM class: | Soft starter |
| Rated operation current Ie at 40 °C Tu: | 135 A |
| Rated operating voltage Ue: | 200 - 600 V |
| Rated power three-phase motor, inline, at 230 V: | 37 kW |
| Rated power three-phase motor, inline, at 400 V: | 75 kW |
| Rated power three-phase motor, inside delta, at 230 V: | 75 kW |
| Rated power three-phase motor, inside delta, at 400 V: | 132 kW |
| Function: | Single direction |
| Internal bypass: | yes |
| With display: | yes |
| Torque control: | no |
| Rated surrounding temperature without derating: | 50 °C |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Voltage type for actuating: | DC |
| Integrated motor overload protection: | yes |
| Release class: | Adjustable |
| Degree of protection (IP): | IP00 |
| Degree of protection (NEMA): | Other |
