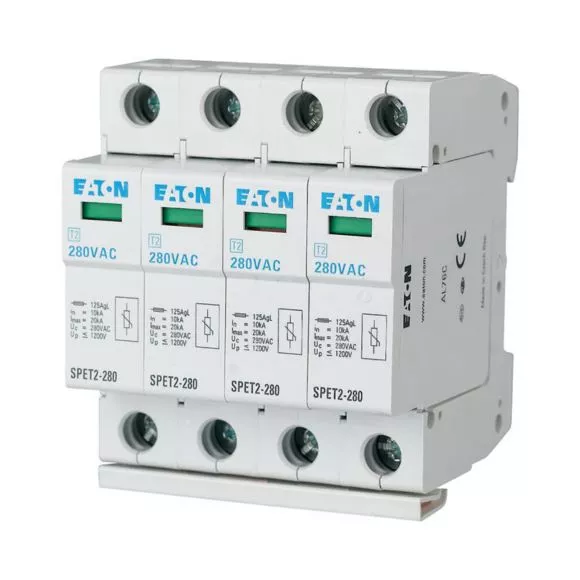

SPET2-280/4 Ogranicznik przepięć
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 168693 |
| GTIN(EAN) | 4015081651825 |
| Price unit | piece |
| Catalog price | 615,00 zł (500,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
For protecting consumer systems against transient overvoltages caused by indirect lightning strikes and switching operations, test class II according to IEC 61643-1+A1, SPD-type T2 according to EN 61643-11, can be bussed with all Xtra Combinations switchgear, use in accordance with IEC 60364-5-53 clause 534
Additional features:
| Information | Value |
|---|---|
| Net weight: | 365 g |
| ETIM class: | Surge protection device for power supply systems |
| System configuration DC: | no |
| System configuration IT: | no |
| System configuration TN: | yes |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | yes |
| System configuration TT: | no |
| System configuration other: | yes |
| Number of conductors (without earthing): | 4 |
| Nominal discharge surge current (8/20): | 10 kA |
| Max. discharge surge current (8/20): | 20 kA |
| Nominal voltage AC: | 280 V |
| Nominal voltage DC: | 0 V |
| Max. continuous voltage AC: | 280 V |
| Max. continuous voltage DC: | 0 V |
| Max. PV-voltage: | 0 V |
| Voltage protection level: | 1.2 kV |
| Voltage protection level L-N: | 0 kV |
| Voltage protection level N-PE: | 0 kV |
| Max. overcurrent protection device, parallel connection (fuse): | 0 A |
| Max. overcurrent protection device, series connection (fuse): | 100 A |
| Short-circuit breaking capacity (Isccr): | 0 kA |
| Integrated short-circuit protection: | no |
| Integrated short-circuit protection selective to fuse gG: | 0 A |
| Integrated backup fuse: | no |
| Leakage-current free: | no |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 4 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 25 mm² |
| Max. conductor cross section flexible (fine-strand): | 0 mm² |
| With remote signalling contact: | no |
| Signalling at the device: | Optical |
| Category type 2: | yes |
| Degree of protection (IP): | IP20 |
