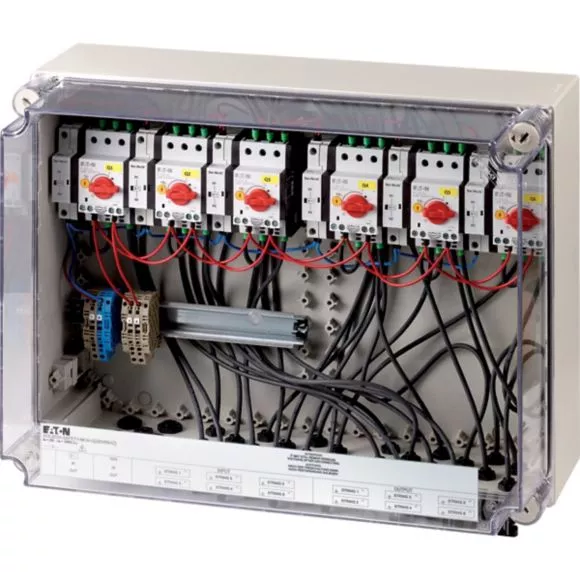

SOL30X6-SAFETY-MC4-U(230V50HZ) Rozłącznik przeciwpożarowy SOL30-SAFETY na 6 stringów PV, MC4, 230VAC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 168104 |
| GTIN(EAN) | 4015081646814 |
| Price unit | piece |
| Catalog price | 9 681,33 zł (7 871,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 9,5 kg |
| Country of origin | Niemcy |
| ETIM class: | Off-load switch |
| Model: | On/Off switch |
| Number of poles: | 6 |
| With zero (off) position: | yes |
| With retraction in 0-position: | yes |
| Rated permanent current Iu: | 30 A |
| Rated operation current Ie at AC-3, 400 V: | 0 A |
| Rated operation power at AC-3, 400 V: | 0 kW |
| Degree of protection (IP), front side: | IP65 |
| Degree of protection (NEMA), front side: | Other |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Suitable for floor mounting: | yes |
| Suitable for front mounting: | no |
| Suitable for distribution board installation: | no |
| Suitable for intermediate mounting: | no |
| Complete device in housing: | yes |
| Housing material: | Plastic |
| Type of control element: | Turn button |
| Type of electrical connection of main circuit: | Screw connection |
