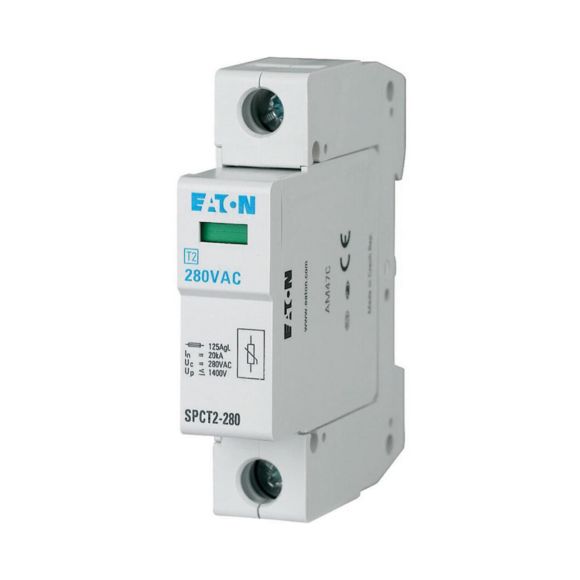

SPCT2-280/1 Ogranicznik przepięć
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 167593 |
| GTIN(EAN) | 4015081640850 |
| Price unit | piece |
| Catalog price | 123,00 zł (100,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
For protecting consumer systems against transient overvoltages caused by indirect lightning strikes and switching operations, test class II according to IEC 61643-1+A1, SPD-type T2 according to EN 61643-11, SPC-S-HK auxiliary contact for remote signaling can be added, can be bussed with all Xtra Combinations switchgear caused by indirect lightning strikes and switching operations, test class II according to IEC 61643-1+A1, SPD-type T2 according to EN 61643-11, SPC-S-HK auxiliary contact for remote signaling can be added, can be bussed with all Xtra Combinations switchgear
Additional features:
| Information | Value |
|---|---|
| Net weight: | 98 g |
| ETIM class: | Surge protection device for power supply systems |
| System configuration DC: | no |
| System configuration IT: | no |
| System configuration TN: | yes |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | yes |
| System configuration TT: | no |
| System configuration other: | yes |
| Number of conductors (without earthing): | 1 |
| Nominal discharge surge current (8/20): | 20 kA |
| Max. discharge surge current (8/20): | 40 kA |
| Nominal voltage AC: | 280 V |
| Nominal voltage DC: | 0 V |
| Max. continuous voltage AC: | 280 V |
| Max. continuous voltage DC: | 0 V |
| Max. PV-voltage: | 0 V |
| Voltage protection level: | 1.4 kV |
| Voltage protection level L-N: | 0 kV |
| Voltage protection level N-PE: | 0 kV |
| Max. overcurrent protection device, parallel connection (fuse): | 0 A |
| Max. overcurrent protection device, series connection (fuse): | 125 A |
| Short-circuit breaking capacity (Isccr): | 0 kA |
| Integrated short-circuit protection: | no |
| Integrated short-circuit protection selective to fuse gG: | 0 A |
| Integrated backup fuse: | no |
| Leakage-current free: | no |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 1 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 25 mm² |
| Max. conductor cross section flexible (fine-strand): | 35 mm² |
| With remote signalling contact: | no |
| Signalling at the device: | Optical |
| Category type 2: | yes |
| Degree of protection (IP): | IP20 |
