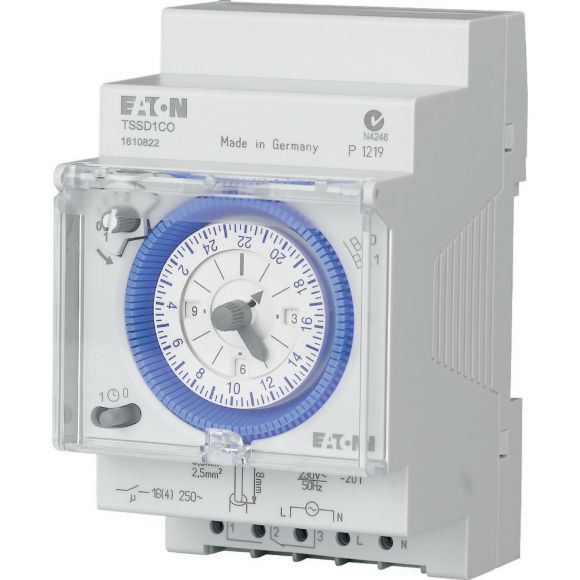

TSSD1CO Analogowy zegar sterowniczy 24h 1 przem.
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 167391 |
GTIN(EAN) | 4015081638895 |
Price unit | piece |
Catalog price | 718,69 zł (584,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Montaż szeregowy - zegar sterujący bez rezerwy pracy, szerokość 52,5mm 24 program godz. najkrótszy czas załączania 15 min., wskazówka godzinowa czasu i rozpoznawanie 12h/24h, możliwość korekty czasu do przodu i wstecz, preselekcja przełączania, przełącznik ręczny z 3 położeniami: bez przerwy- WŁ/AUTO/bez przerwy- WYŁ, wskaźnik stanu przełączania, sprężynowe zaciski wtykowe DuoFix do 2 przewodów, 1 zestyk przełączny 16 A/250 V~, 230V / 50 Hz pokrywa przezroczysta plombowana.
Additional features:
Information | Value |
---|---|
Net weight: | 110 g |
ETIM class: | Analogous time switch for distribution board |
Mounting method: | DIN rail |
Number of channels: | 1 |
Supply voltage: | 230 - 230 V |
Voltage type (supply voltage): | AC |
Frequency supply voltage: | 50 - 50 Hz |
Autonomy in hours: | 0 |
Autonomy in years: | 0 |
Accuracy per day: | 0 s |
60 min program: | no |
24 h program: | yes |
Weekly program: | no |
Annual program: | no |
Mains synchronous: | yes |
Quartz controlled: | no |
Contact type: | Change-over contact |
Shortest switching time channel 1: | 15 min |
Shortest switching time channel 2: | 0 min |
Program shift divide 1: | 15 min |
Program shift divide 2: | 0 min |
Automatic switching summer-/winter time: | no |
Suitable for manual operation: | yes |
Switching preselection: | yes |
Nominal switching current at 250 V AC: | 16 A |
Max. switching power LED: | 600 W |
Potential free switch contact: | yes |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 3 |
Width: | 54 mm |
Height: | 90 mm |
Depth: | 65.6 mm |
