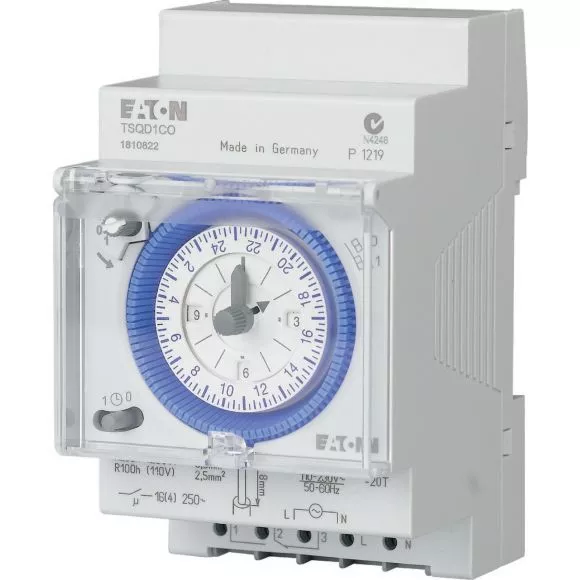

TSQD1CO Analogowy zegar sterowniczy 24h 1 przem.
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 167390 |
| GTIN(EAN) | 4015081639205 |
| Price unit | piece |
| Catalog price | 934,19 zł (759,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Montaż szeregowy - zegar sterujący około 200 godzin rezerwy pracy, szerokość 52,5 mm 24 program godz. najkrótszy czas załączania 15 min., wskazówka godzinowa czasu i rozpoznawanie 12h/24h, możliwość korekty czasu do przodu i wstecz, preselekcja przełączania, przełącznik ręczny z 3 położeniami: bez przerwy- WŁ/AUTO/bez przerwy- WYŁ, wskaźnik stanu przełączania, sprężynowe zaciski wtykowe DuoFix do 2 przewodów, 1 zestyk przełączny 16A/250V~, 230V /45-50 Hz pokrywa przezroczysta plombowana.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 120 g |
| ETIM class: | Analogous time switch for distribution board |
| Mounting method: | DIN rail |
| Number of channels: | 1 |
| Supply voltage: | 110 - 230 V |
| Voltage type (supply voltage): | AC |
| Frequency supply voltage: | 45 - 60 Hz |
| Autonomy in hours: | 200 |
| Autonomy in years: | 0 |
| Accuracy per day: | 1 s |
| 60 min program: | no |
| 24 h program: | yes |
| Weekly program: | no |
| Annual program: | no |
| Mains synchronous: | no |
| Quartz controlled: | yes |
| Contact type: | Change-over contact |
| Shortest switching time channel 1: | 15 min |
| Shortest switching time channel 2: | 0 min |
| Program shift divide 1: | 15 min |
| Program shift divide 2: | 0 min |
| Automatic switching summer-/winter time: | no |
| Suitable for manual operation: | yes |
| Switching preselection: | yes |
| Nominal switching current at 250 V AC: | 16 A |
| Max. switching power LED: | 600 W |
| Potential free switch contact: | yes |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 3 |
| Width: | 54 mm |
| Height: | 90 mm |
| Depth: | 65.6 mm |
