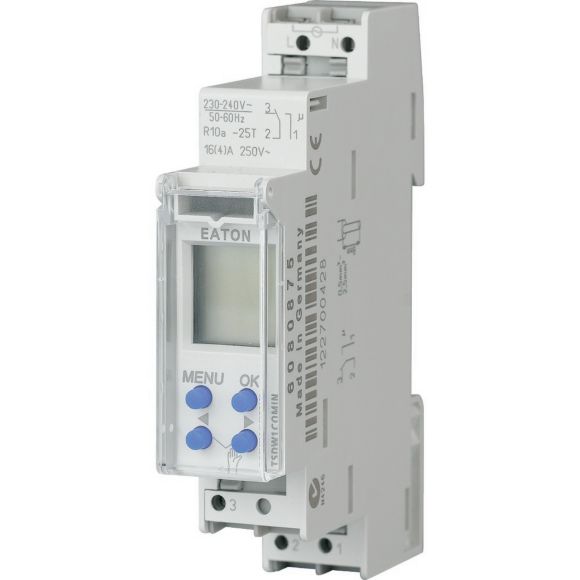

TSDW1COMIN Cyfrowy zegar sterowniczy tyg., 1 przem.
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 167383 |
| GTIN(EAN) | 4015081639199 |
| Price unit | piece |
| Catalog price | 2 060,25 zł (1 675,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Montaż szeregowy - Elektroniczny zegar sterujący z szybkim mocowaniem, tekstowa nawigacja obsługi na wyświetlaczu, szerokość 17,5 mm, 10 lat rezerwy pracy i programowalna zmiana z czasu letniego na zimowy, program dzienny i tygodniowy, zaciski wtykowe DuoFix, interfejs OBELISK do programowania PC, 56 miejsc w pamięci najkrótszy czas załączania 1 min., przycisk Czas letni/zimowy, łączenie WŁ / WYŁ / AUTO, preselekcja przełączania, 1 kanal 1 zestyk przełączny 16A/250V~.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 80 g |
| ETIM class: | Digital time switch for distribution board |
| Mounting method: | DIN rail |
| Number of channels: | 1 |
| Supply voltage: | 230 - 240 V |
| Voltage type (supply voltage): | AC |
| Frequency supply voltage: | 50 - 60 Hz |
| Autonomy in hours: | 0 |
| Autonomy in years: | 10 |
| Accuracy per day: | 1 s |
| Text guidance in display: | yes |
| External programming: | yes |
| With memory card: | no |
| 60 min program: | yes |
| 24 h program: | yes |
| Weekly program: | yes |
| Annual program: | no |
| Holiday program: | yes |
| Impulse program: | no |
| Cycle program: | no |
| Astro program: | no |
| Random program: | no |
| Hour meter: | yes |
| Mains synchronous: | no |
| Quartz controlled: | yes |
| Radio-controlled: | no |
| Radio-controlled (DCF77): | no |
| GPS (global positioning system): | no |
| Contact type: | Change-over contact (NO/NC) |
| Number of contacts: | 1 |
| Shortest switching time channel 1: | 1 min |
| Shortest switching time channel 2: | 0 min |
| Number of memory locations: | 84 |
| Automatic switching summer-/winter time: | yes |
| Suitable for manual operation: | yes |
| External pushbutton input: | no |
| Switching preselection: | yes |
| Nominal switching current at 250 V AC: | 16 A |
| Max. switching power LED: | 600 W |
| Potential free switch contact: | yes |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 1 |
| Width: | 17.5 mm |
| Height: | 90 mm |
| Depth: | 65.5 mm |
