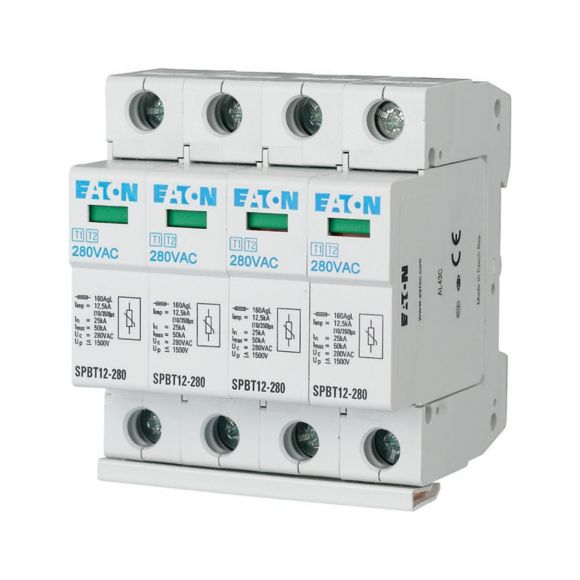

SPBT12-280/4 Ogranicznik przepięć typ 1+2 (klasa B+C)
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 158331 |
| GTIN(EAN) | 4015081548897 |
| Price unit | piece |
| Catalog price | 885,60 zł (720,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
For protecting consumer systems against transient overvoltages caused by direct and indirect lightning strikes and switching operations, use in accordance with IEC 60364-5-53 section 534, iI according to IEC 61643-1, SPD-type T1, T2 according to EN 61643-11, lightning protection classes III and IV as per IEC 62305, type without remote signaling
Additional features:
| Information | Value |
|---|---|
| Net weight: | 574 g |
| ETIM class: | Combined arrester for power supply systems |
| System configuration DC: | no |
| System configuration IT: | no |
| System configuration TN: | yes |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | yes |
| System configuration TT: | yes |
| System configuration other: | yes |
| Number of poles: | 4 |
| Lightning impulse current (10/350 µs): | 12.5 kA |
| Max. continuous voltage AC: | 280 V |
| Max. continuous voltage DC: | 0 V |
| Nominal voltage AC: | 280 V |
| Nominal voltage DC: | 0 V |
| Max. PV-voltage: | 0 V |
| Voltage protection level: | 1.5 kV |
| Voltage protection level L-N: | 0 kV |
| Voltage protection level L-PE: | 1.5 kV |
| Voltage protection level N-PE: | 0 kV |
| Voltage protection level (DC+ - DC-): | 0 kV |
| Voltage protection level (DC+/DC- - PE): | 0 kV |
| Follow current extinguishing capability: | 0 kA |
| Specific energy (W/R): | 39.1 kJ/Ω |
| Max. overcurrent protection device, parallel connection (fuse): | 0 A |
| Max. overcurrent protection device, series connection (fuse): | 160 A |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 4 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 25 mm² |
| Max. conductor cross section flexible (fine-strand): | 35 mm² |
| Remote signalling: | no |
| Signalling at the device: | Optical |
| Test class: | Type 1 + 2 |
| Integrated backup fuse: | no |
| Energy-coordinated protection effect with regard to the terminal equipment: | no |
| Voltage switching spark gap technology: | no |
| Overcurrent protected voltage tapping: | no |
| Degree of protection (IP): | IP20 |
